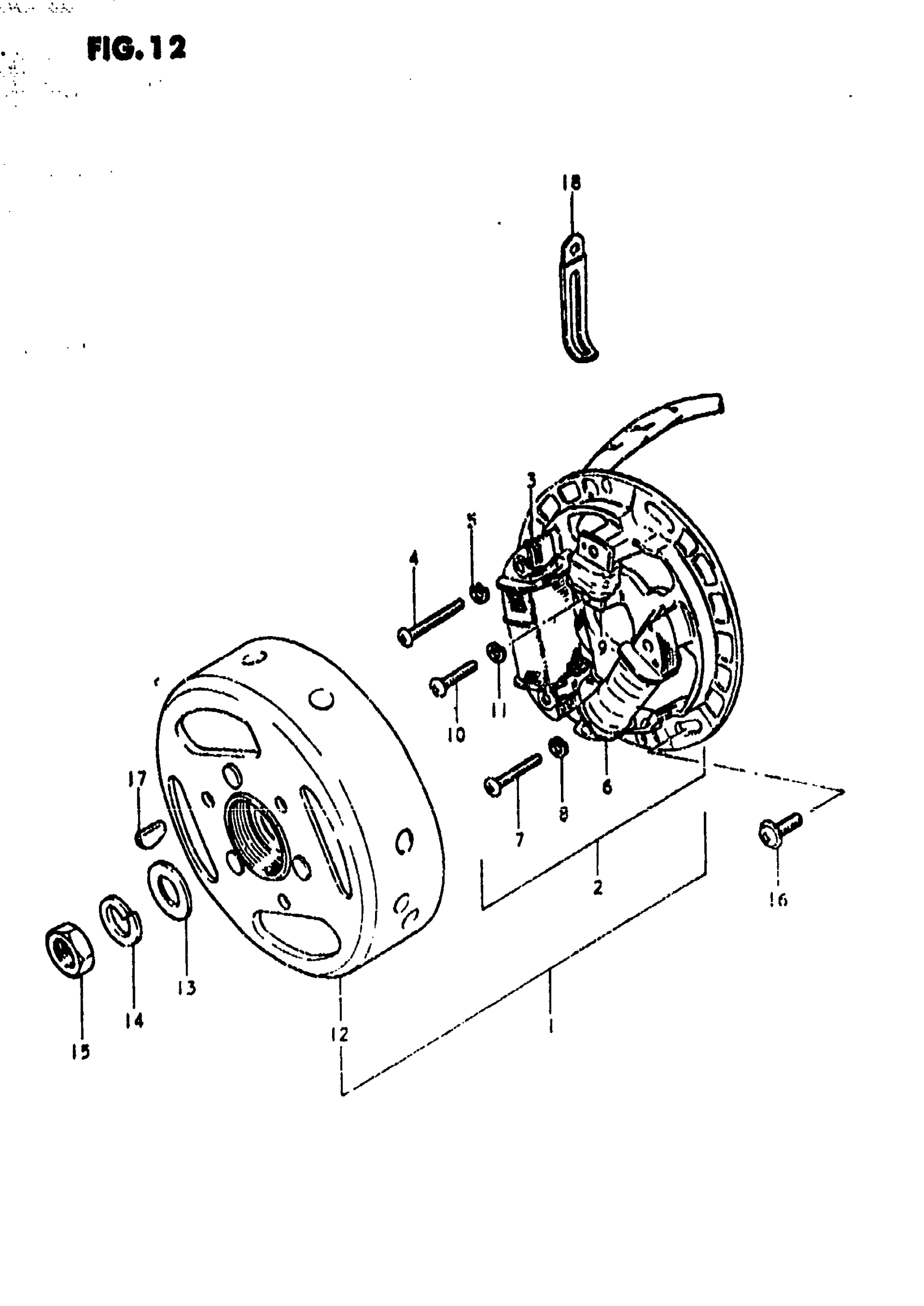

Suzuki FS50 (1981) MAGNETO Diagram

#

Description
Price

1

MAGNETO | Includes Item(s) 2 - 12

32100-02540

Unavailable

2

STATOR ASSY

32101-02540

Unavailable

3

COIL, LIGHTING

32120-02540

Unavailable

4

SCREW This part replaces 02112-04258.

02112-0425B

$2.34

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

COIL, PRIMARY

32140-02540

Unavailable

7

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

SENSOR, TIMING

32150-02530

Unavailable

10

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

ROTOR

32102-02540

Unavailable

13

WASHER This part replaces 08322-21108.

08322-01107

$2.15

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

NUT This part replaces 08310-11108.

08310-00107

$2.19

16

SCREW

09139-05011

$2.38

17

KEY

08341-31039

$1.89

18

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
