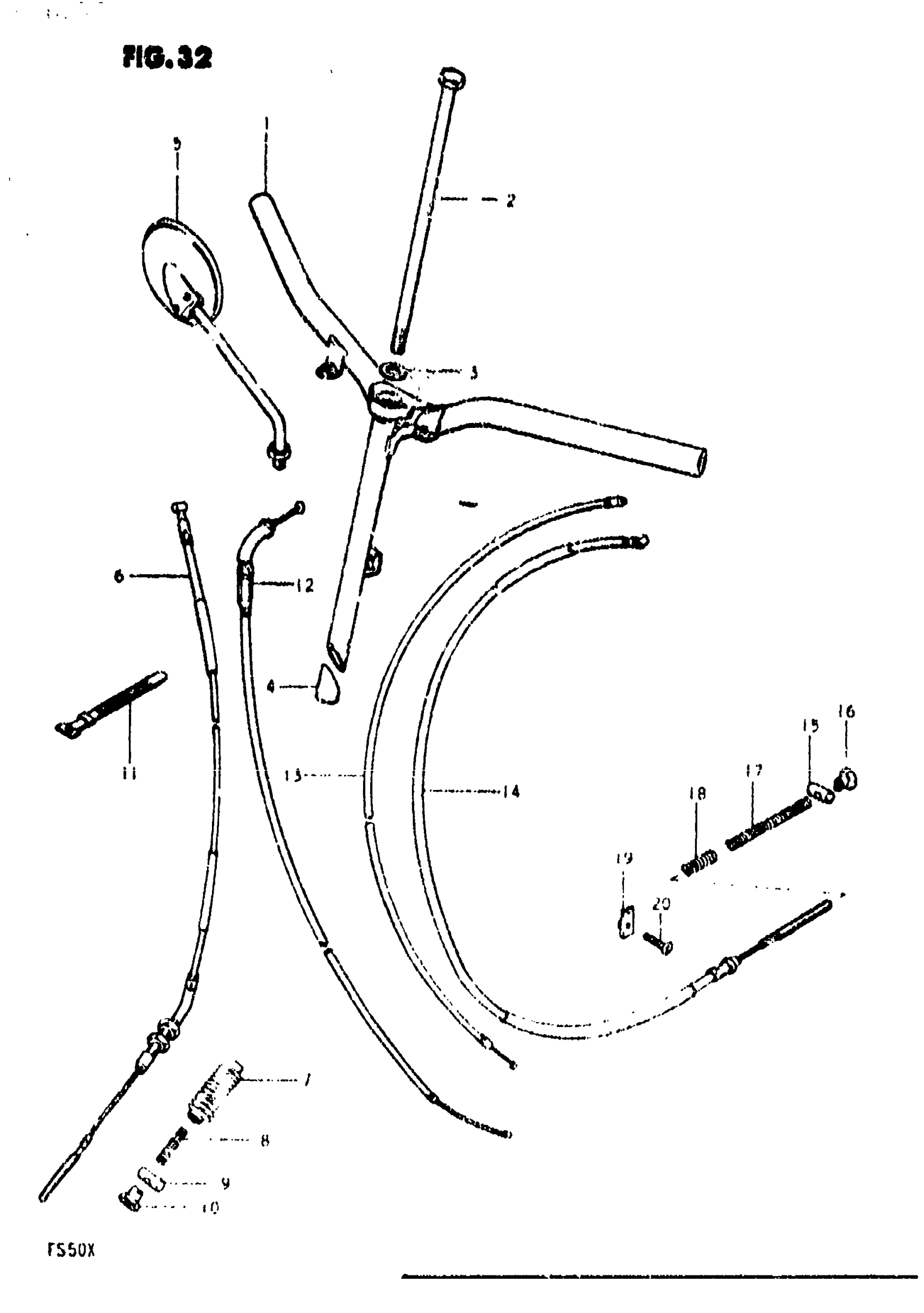

Suzuki FS50 (1981) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-02500

Unavailable

2

BOLT (12x273)

09100-12023

Unavailable

3

WASHER This part replaces 08322-11128.

08322-01127

$1.84

4

STOP, HANDLE EXPANDER

56251-02401

Unavailable

5

MIRROR ASSY,RH This part replaces 56500-02300.

56500-02301

Unavailable

6

CABLE, FRONT BRAKE

58110-02500

Unavailable

7

DUST SEAL

09287-07001

$2.00

8

SPRING

09440-08003

Unavailable

9

PIN

09209-10001

$1.49

10

NUT This part replaces 09150-05004.

09150-05101

$3.04

11

BAND (L:120) This part replaces 09407-12403.

09407-12402

$3.04

12

NO DESCRIPTION AVAILABLE This part replaces 58300-02510.

58300-02511

Unavailable

13

CABLE COMP,STAR | MODEL T This part replaces 58410-02500.

58410-02X04

Unavailable

13

CABLE COMP,STAR | MODEL X This part replaces 58410-02501.

58410-02X04

Unavailable

14

CABLE, REAR BRAKE

58510-02500

Unavailable

15

PIN

09209-10001

$1.49

16

NUT This part replaces 09150-05004.

09150-05101

$3.04

17

SPRING This part replaces 09440-06019.

09440-06019-XC0

$2.75

18

SPRING This part replaces 09440-08019.

09440-08019-XC0

Unavailable

19

PLATE This part replaces 58570-02500.

58570-02501

Unavailable

20

SCREW This part replaces 02112-06208.

02112-06207

$1.78
