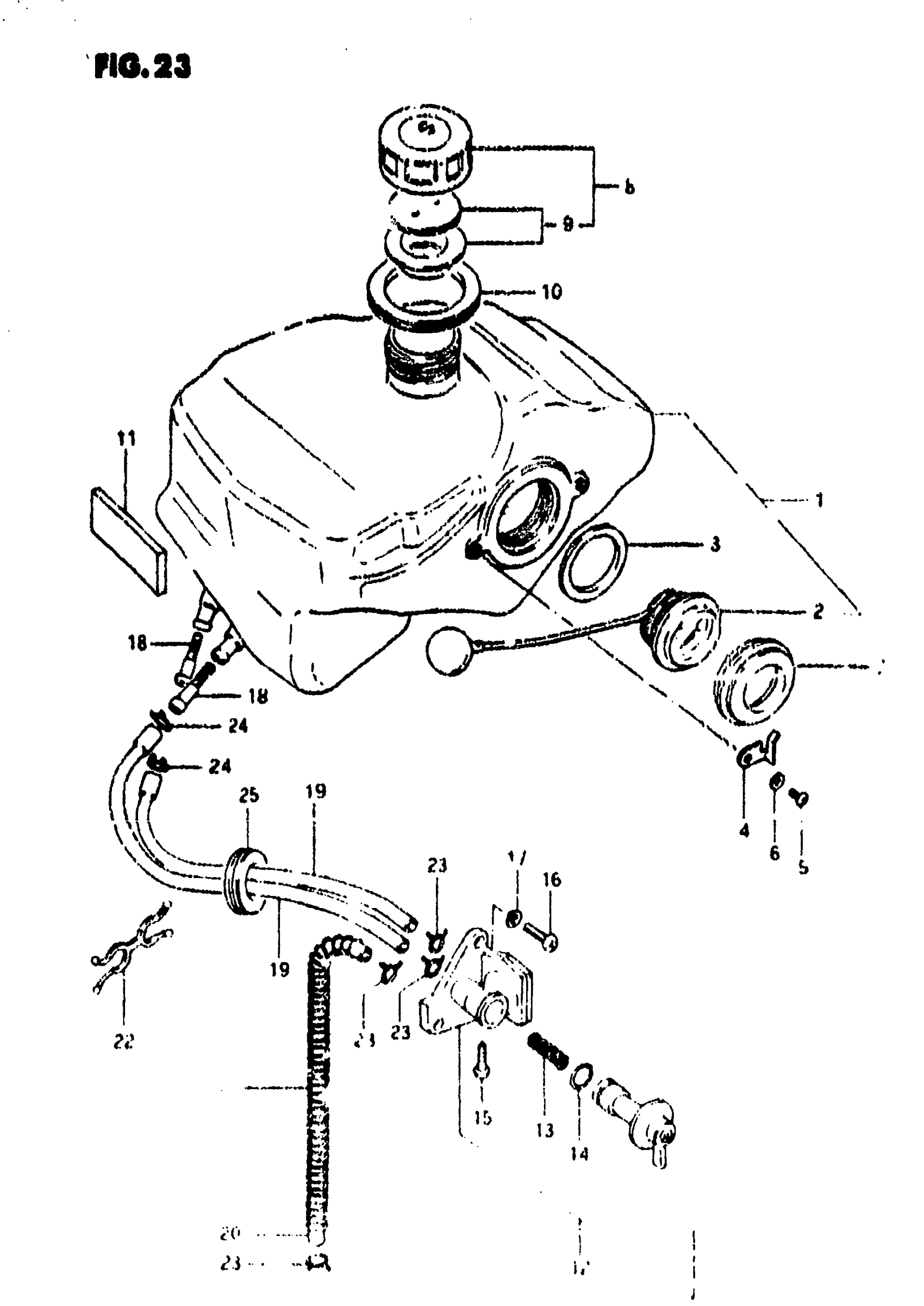

Suzuki FS50 (1981) FUEL TANK (MODEL X : -F.NO.3101002) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 44100-02821.

44100-02840

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 44580-02510.

44580-02570

Unavailable

3

GASKET

44583-02501

Unavailable

4

STOPPER

44591-02500

Unavailable

5

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

6

WASHER This part replaces 08322-21038.

08322-01037

$1.93

7

GROMMER

09320-31001

Unavailable

8

CAP SET,FUEL TA | Includes Item(s) 9 This part replaces 44200-27810.

44200-27811

$12.72

9

GASKET

44660-18818

Unavailable

10

RUBBER,FUEL TAN This part replaces 44261-27000.

44261-27001

Unavailable

11

PROTECTOR

44628-02500

Unavailable

12

NO DESCRIPTION AVAILABLE | Includes Item(s) 13 - 15 This part replaces 44300-02571.

44300-02573

Unavailable

13

SPRING

44357-32470

$2.21

14

O RING, LEVER This part replaces 44353-32470.

44353-12C01

$7.44

15

SCREW

44343-41370

$2.22

16

SCREW This part replaces 02112-05168.

02112-05167

$1.97

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

FILTER, FUEL

44322-27001

$5.05

19

HOSE(5X8.2X600) This part replaces 09343-05164.

09359-50824-600

$7.98

20

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

21

SPRING

09440-10009

$5.47

22

CLAMP

09408-00024

$1.75

23

CLIP, LOWER

09401-08401

$1.54

24

CLIP, UPPER

09401-10401

$1.49

25

GROMMER

09320-25001

Unavailable
