Partiron

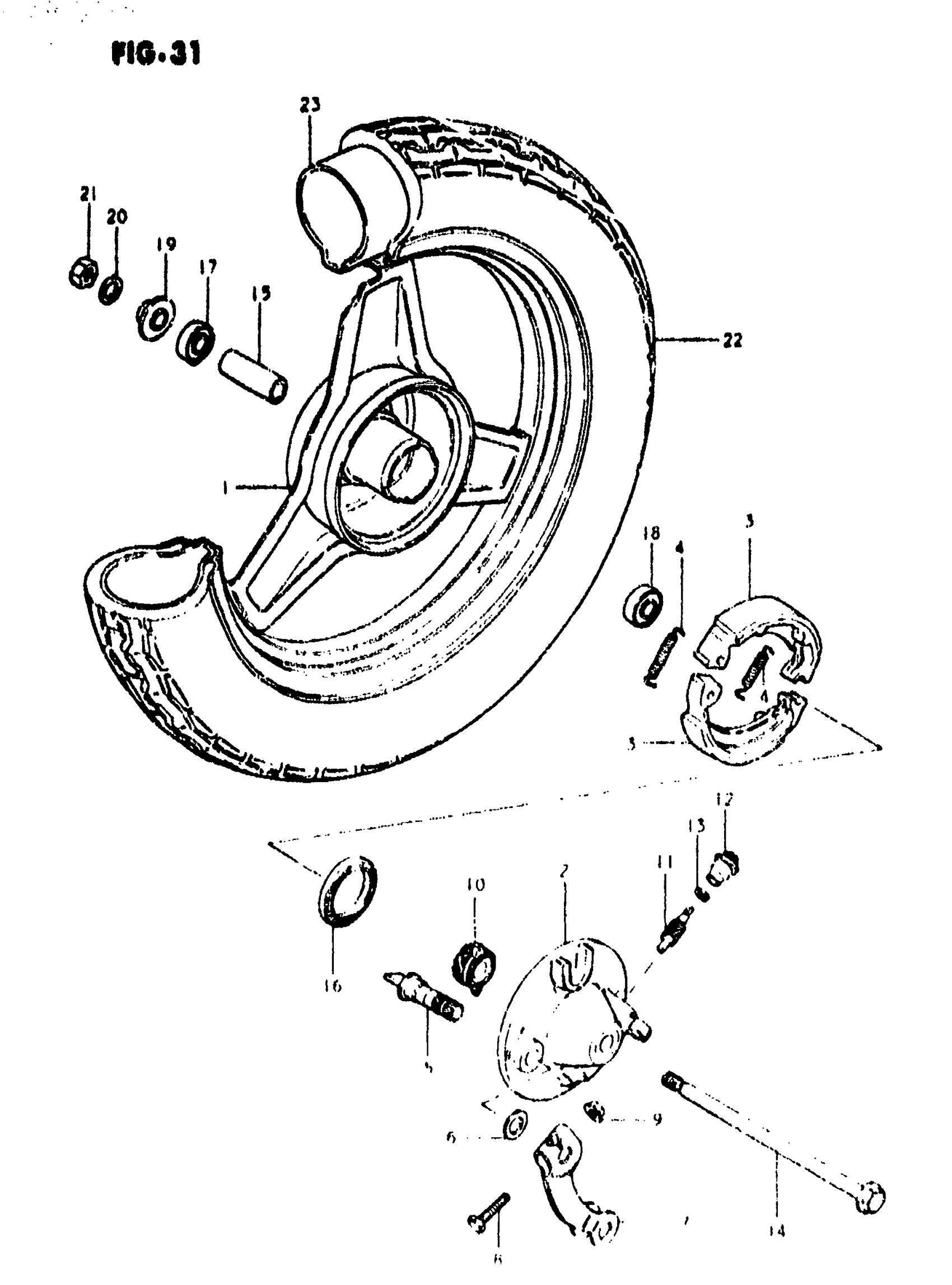

Suzuki FS50 (1981) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 54140-02310-126.

54140-02901-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 54140-02311-126.

54140-02901-13L

Unavailable

2

PANEL, ANCHOR

54210-02500

Unavailable

3

SHOE SET,BRAKE This part replaces 54410-02310.

54400-02820

Unavailable

4

SPRING

09443-06029

$2.44

5

WASHER This part replaces 08322-11108.

08322-01107

$2.15

6

WASHER This part replaces 08322-11108.

08322-01107

$2.15

7

LEVER, BRAKE CAM

54451-02301

Unavailable

8

BOLT This part replaces 09100-05003.

01500-0525A

$1.77

9

NUT This part replaces 08316-16058.

08316-1005A

$2.19

10

GEAR, SPEEDOMETER (NT : 17) | MODEL T This part replaces 54611-02500.

54611-02501

Unavailable

10

GEAR, SPEEDOMETER (NT : 17) | MODEL X

54611-02501

Unavailable

11

PINION, SPEEDOMETER (NT : 10) | MODEL T This part replaces 54621-02500.

54621-02501

Unavailable

11

PINION, SPEEDOMETER (NT : 10) | MODEL X

54621-02501

Unavailable

12

BUSH | MODEL T This part replaces 54632-02200.

54632-02201

$11.83

12

BUSH | MODEL X

54632-02201

$11.83

13

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

14

AXLE, FRONT

54711-02500

Unavailable

15

SPACER, HUB BEARING

54730-02400

Unavailable

16

OIL SEAL

09285-34002

$4.86

17

BEARING This part replaces 08123-62007.

08123-6200B

$9.71

18

BEARING, LH

08143-62007

$18.25

19

SPACER

54740-02300

Unavailable

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

NUT This part replaces 08319-21108.

09159-10027

$3.10

22

TIRE, FRONT This part replaces 55100-02510.

55100-29C10

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 55200-02300.

55200-16A00

Unavailable
