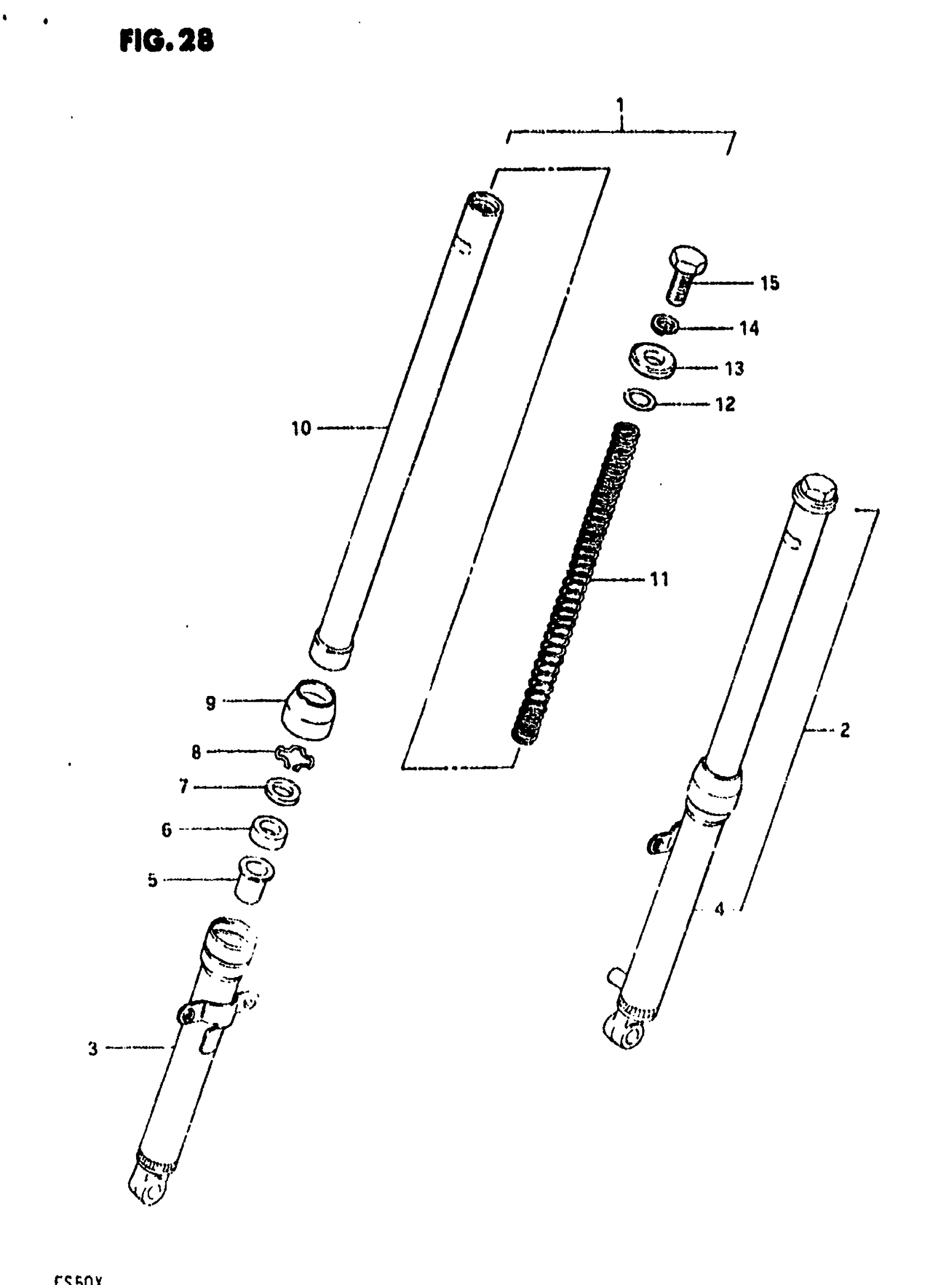

Suzuki FS50 (1981) FRONT FORK Diagram

#

Description

Price

1

DAMPER ASSY, FORK RH | PEARL METALLIC

51103-02500-126

Unavailable

2

DAMPER ASSY, FORK LH | PEARL METALLIC; Includes Item(s) 3 - 15

51104-02500-126

Unavailable

3

OUTER TUBE RH

51130-02500-126

Unavailable

4

OUTER TUBE LH

51140-02500-126

Unavailable

5

SLIDE METAL

51152-22680

Unavailable

6

OIL SEAL

51153-02500

Unavailable

7

WASHER

51558-22680

Unavailable

8

RING, STOPPER

51156-43010

$3.37

9

DUST SEAL

51173-02500

Unavailable

10

INNER TUBE

51111-02500

Unavailable

11

SPRING

51171-02500

Unavailable

12

O RING This part replaces 51181-22011.

51181-22012

$3.73

13

WASHER

51356-27510

Unavailable

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

BOLT

51352-02500

Unavailable
