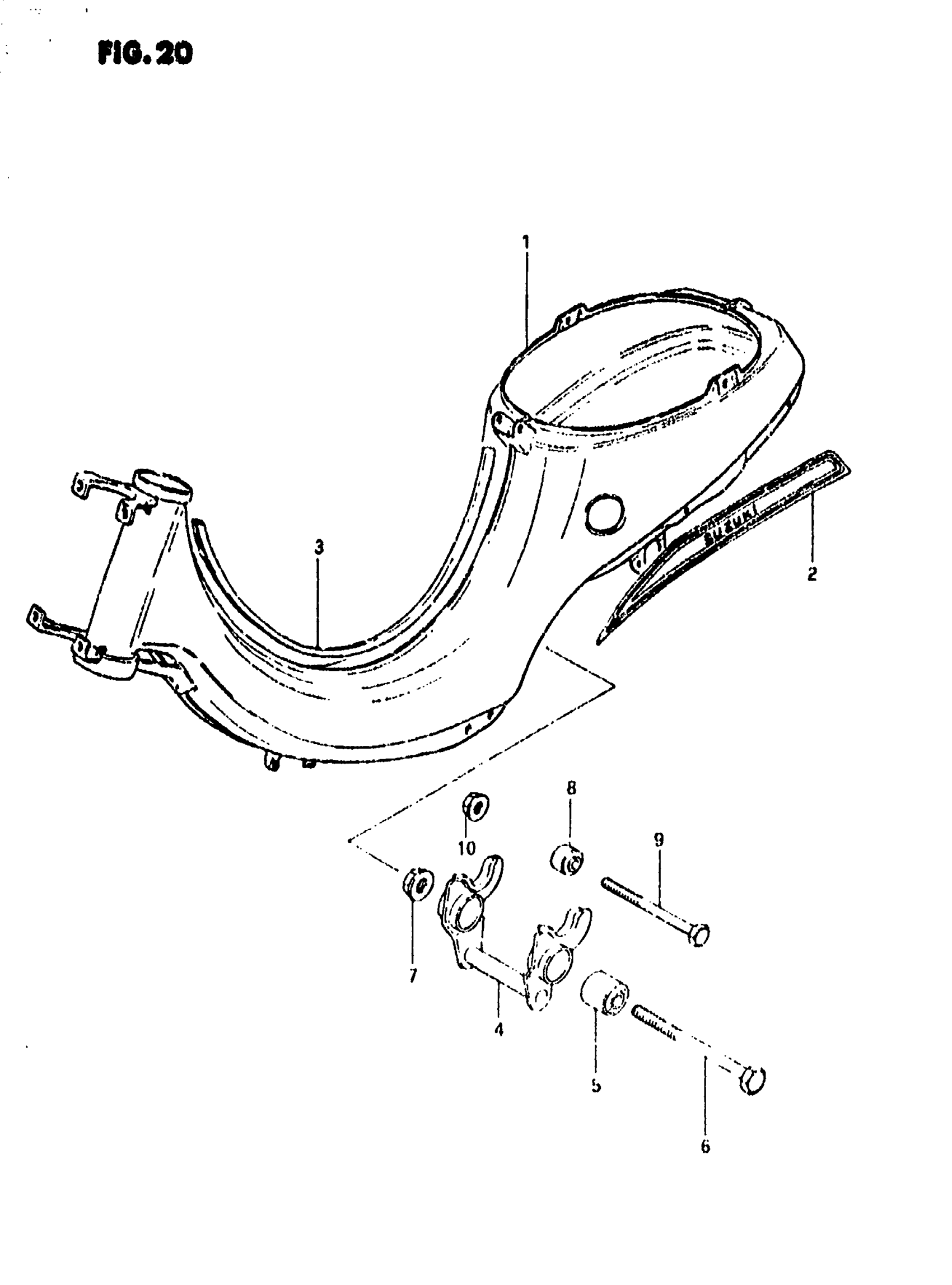

Suzuki FS50 (1981) FRAME (MODEL X : F.NO.3101003-) Diagram

#

Description

Price

1

FRAME (ORANGE)

41100-02521-10G

Unavailable

2

TAPE SET, FRAME SIDE

68100-02860-74C

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 41951-02500.

41951-02501

Unavailable

4

BRACKET SET, CRANKCASE | Includes Item(s) 5

41100-02831

Unavailable

5

BUSH,ENGINE MTG This part replaces 09319-10027.

09319-10050

$16.89

6

BOLT (10x140)

09100-10049

Unavailable

7

NUT This part replaces 08319-31108.

08319-31107

$2.73

8

NO DESCRIPTION AVAILABLE This part replaces 09320-08019.

09320-08025

Unavailable

9

BOLT (8x120)

09100-08078

Unavailable

10

NUT This part replaces 08319-31088.

08319-3108A

$2.32
