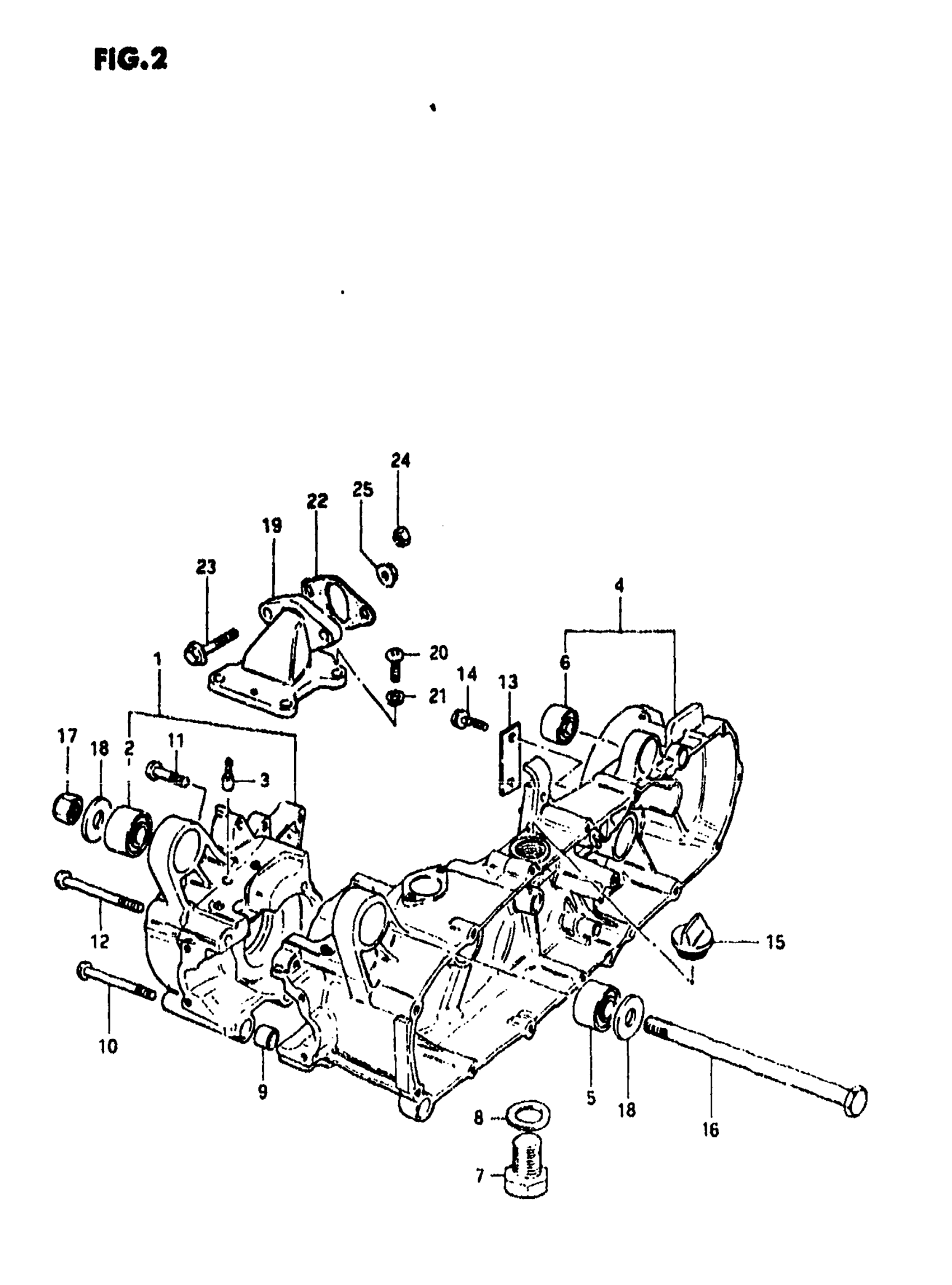

Suzuki FS50 (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET,RH | Includes Item(s) 2 - 3 This part replaces 11300-02880.

11300-02883

Unavailable

2

BUSH,ENGINE MTG This part replaces 09319-10027.

09319-10050

$16.89

3

UNION, OIL HOSE (OD:5.5)

16824-02300

Unavailable

3

UNION, OIL HOSE (OD:6.0)

16824-02301

Unavailable

4

LEFT CRANKCASE SET | MODEL T, ~E. NO.146304 This part replaces 11301-02880.

11301-02882

Unavailable

4

LEFT CRANKCASE SET | MODEL T, E. NO. 146305~ This part replaces 11301-02881.

11301-02882

Unavailable

4

LEFT CRANKCASE SET | MODEL X; Includes Item(s) 5 - 8

11301-02882

Unavailable

5

BUSH,ENGINE MTG This part replaces 09319-10027.

09319-10050

$16.89

6

BUSH, SHOCK ABSORBER

09319-10032

$9.27

7

PLUG, OIL DRAIN | E.NO.146305~

09247-10001

$2.20

8

GASKET | E.NO.146305~

09168-10002

$2.13

9

PIN This part replaces 09206-13001.

04211-13189

$2.19

10

SCREW This part replaces 02112-06758.

02112-06757

$3.08

11

SCREW This part replaces 02112-06658.

02112-06657

$2.62

12

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

13

PLATE, BREATHER

11329-02300

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 09360-06011.

09360-06012

Unavailable

15

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

16

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 61211-43000.

61211-43001

Unavailable

16

BOLB, ENGINE MOUNT (L:145) | MODEL X

09100-10161

Unavailable

17

NUT | MODEL T

09159-10011

$3.23

17

NUT | MODEL X This part replaces 08310-11108.

08310-00107

$2.19

18

WASHER This part replaces 08322-11108.

08322-01107

$2.15

19

REED VALVE

13150-02310

Unavailable

20

SCREW This part replaces 02112-06208.

02112-06207

$1.78

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

GASKET,CARBURET This part replaces 13125-02310.

13125-02320

Unavailable

23

BOLT This part replaces 01517-06208.

01550-06207

$2.30

24

.NUT This part replaces 08310-22068.

08310-00067

$2.13

25

NUT This part replaces 08316-16068.

08319-31067

$2.03
