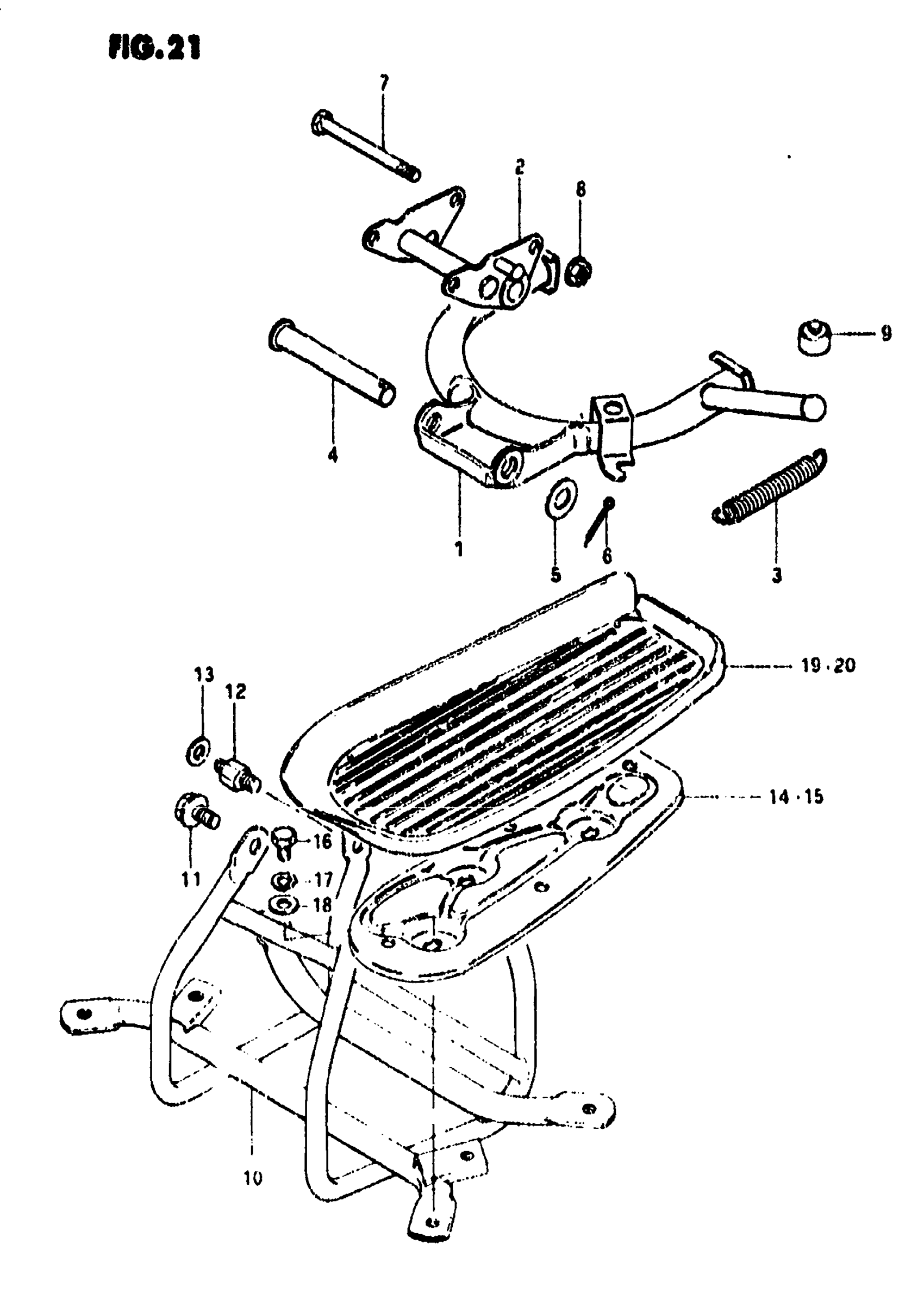

Suzuki FS50 (1981) CENTER STAND - FOOTREST Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 42100-02500.

42100-02501

Unavailable

2

BRACKET

42270-02400

Unavailable

3

SPRING

09443-14017

$3.04

4

SHAFT

42211-02400

Unavailable

5

WASHER This part replaces 08322-11128.

08322-01127

$1.84

6

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

7

BOLT This part replaces 09100-06057.

01500-0685B

$3.85

8

NUT This part replaces 08319-31066.

08319-31067

$2.03

9

CUSHION

09321-10002

$2.22

10

BAR, FRONT FOOTREST (RED) | MODEL T

43510-02500-07P

Unavailable

10

BAR, FRONT FOOTREST (SILVER) | MODEL X

43510-02500-737

Unavailable

11

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

12

BOLT, REAR

09119-08028

Unavailable

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

NO DESCRIPTION AVAILABLE This part replaces 43546-02500-019.

43546-02500

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 43547-02500-019.

43547-02500

Unavailable

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

RUBBER, RH

43551-02500

Unavailable

20

RUBBER, LH

43561-02500

Unavailable
