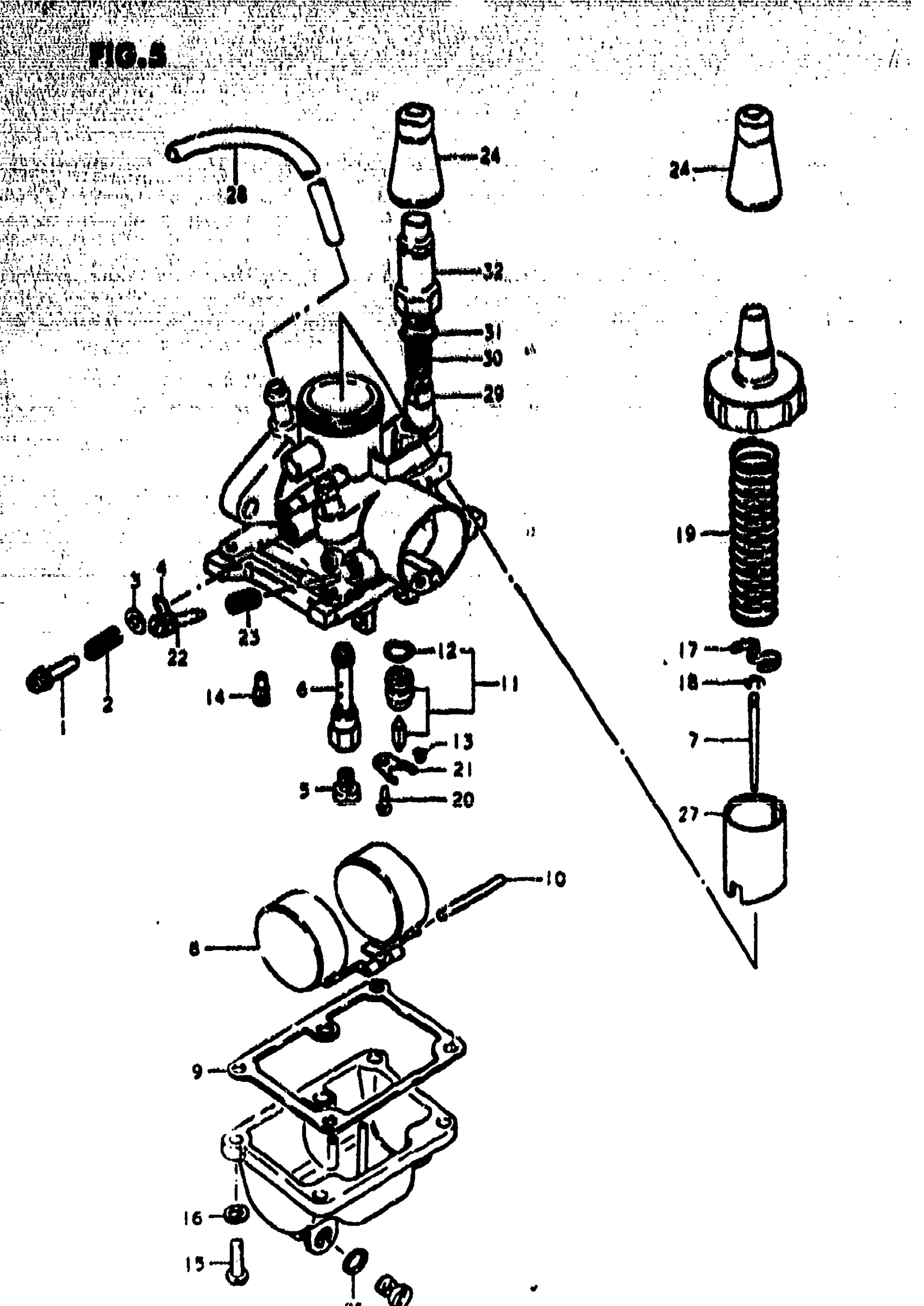

Suzuki FS50 (1981) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 32 This part replaces 13200-02510.

13200-02341

Unavailable

1

ADJUSTER This part replaces 13267-35011.

13483-16A01

$16.25

2

SPRING

13268-35010

$4.48

3

WASHER

13291-35010

$3.56

4

O RING

13295-33010

$4.48

5

JET, MAIN (75)

09491-77005

$11.83

6

JET, NEEDLE (E-6)

09494-00266

Unavailable

7

NEEDLE, JET (3F13-3)

13383-02330

Unavailable

8

FLOAT This part replaces 13252-02410.

13250-02500

$26.91

9

GASKET

13251-02410

$5.36

10

PIN, FLOAT

13254-20010

$4.28

11

VALVE ASSY, NEEDLE

13370-02421

Unavailable

12

.O RING This part replaces 13374-47610.

13374-46710

$4.48

13

CLIP

13377-02410

$7.37

14

JET, PILOT (15)

09492-15007

$11.38

15

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

17

SEAT, SPRING

13581-04010

$7.80

18

E RING This part replaces 13394-12110.

13394-40D00

$5.43

19

SPRING

13573-02330

$11.30

20

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

21

PLATE

13373-46710

$6.17

22

SCREW, AIR

13269-04010

$13.67

23

SPRING

13268-01010

$5.28

24

BOOT

13681-33010

$9.32

25

GASKET

13249-05010

$1.98

26

PLUG, DRAIN

13247-05010

$5.11

27

VALVE, THROTTLE (OA:2.0)

13551-02330

Unavailable

28

HOSE(4.5X8.5X60 This part replaces 13683-45050.

09355-45001-600

$9.48

29

VALVE, STARTER

13411-01010

$18.43

30

SPRING

13417-01010

$4.62

31

O RING

13278-02330

$2.82

32

CAP

13418-02330

$11.38
