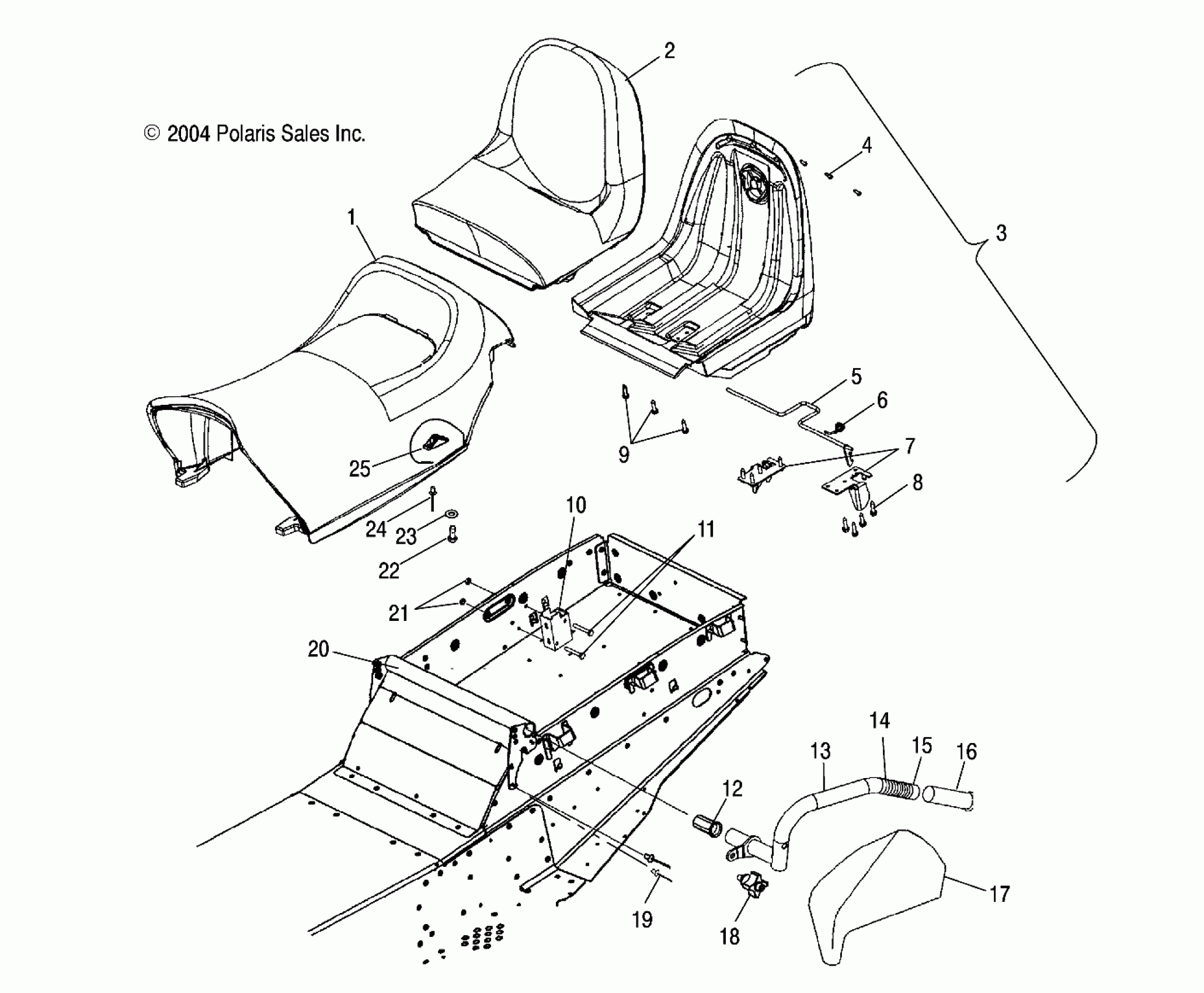

Polaris FRONTIER TOURING - S05NT7DS/DE SEAT - S05NT7DS/DE (4992889288A04) Diagram

#

Description
Price

1

Asm., Seat

2683494

$504.99

1

Asm., Seat Cover

2683497

$267.99

2

Asm., Seat, Passenger [Incl. 3]

2683491

$514.99

2

Asm., Seat Base, Passenger Secondary

2683492

$255.22

2

Asm., Seat Cover, Passenger

2683493

$257.99

3

Asm., Seat Base Passenger Primary [Incl. 4-9]

2683071

$115.99

4

SCREW

7512026

$1.49

5

Latch, Seat

1013935

Unavailable

6

SPRING, SEAT LATCH, TORSION

7042246

$8.79

7

Plate, Latch Mount, LH

5247090

Unavailable

7

Plate, Latch Mount, RH

5247091

Unavailable

8

RIVET

7621485

$1.49

9

Screw

7512098

$1.59

10

TUBE, STRIKER

5246855

Unavailable

11

Bolt

7512130

$3.99

12

Bushing, Grab Handle

5434660

Unavailable

13

Handle, Grab, Black, LH

1013963-067

$53.59

13

Handle, Grab, Black, RH

1013964-067

$53.59

14

Heater, Grip, Passenger

2461199

$49.59

15

Plug

5431096

$2.02

16

Grip, Handlebar

5412306

Unavailable

17

Asm., Deflector, Wind, RH

2683162

$59.52

17

Asm., Deflector, Wind, LH

2683161

Unavailable

18

Asm., Knob, Grab Handle

2632756

$32.37

19

RIVET-3/16-.090-.290

7661637

$1.49

20

Tube, Grab Handle

1014499

$53.59

21

Nut, Nylok

7542122

$1.49

22

SCREW

7517219

$4.79

23

Washer, Flat

7558301

$1.49

24

RIVET

7621319

$1.49

25

NUT, SEAT

5631194

$4.99
