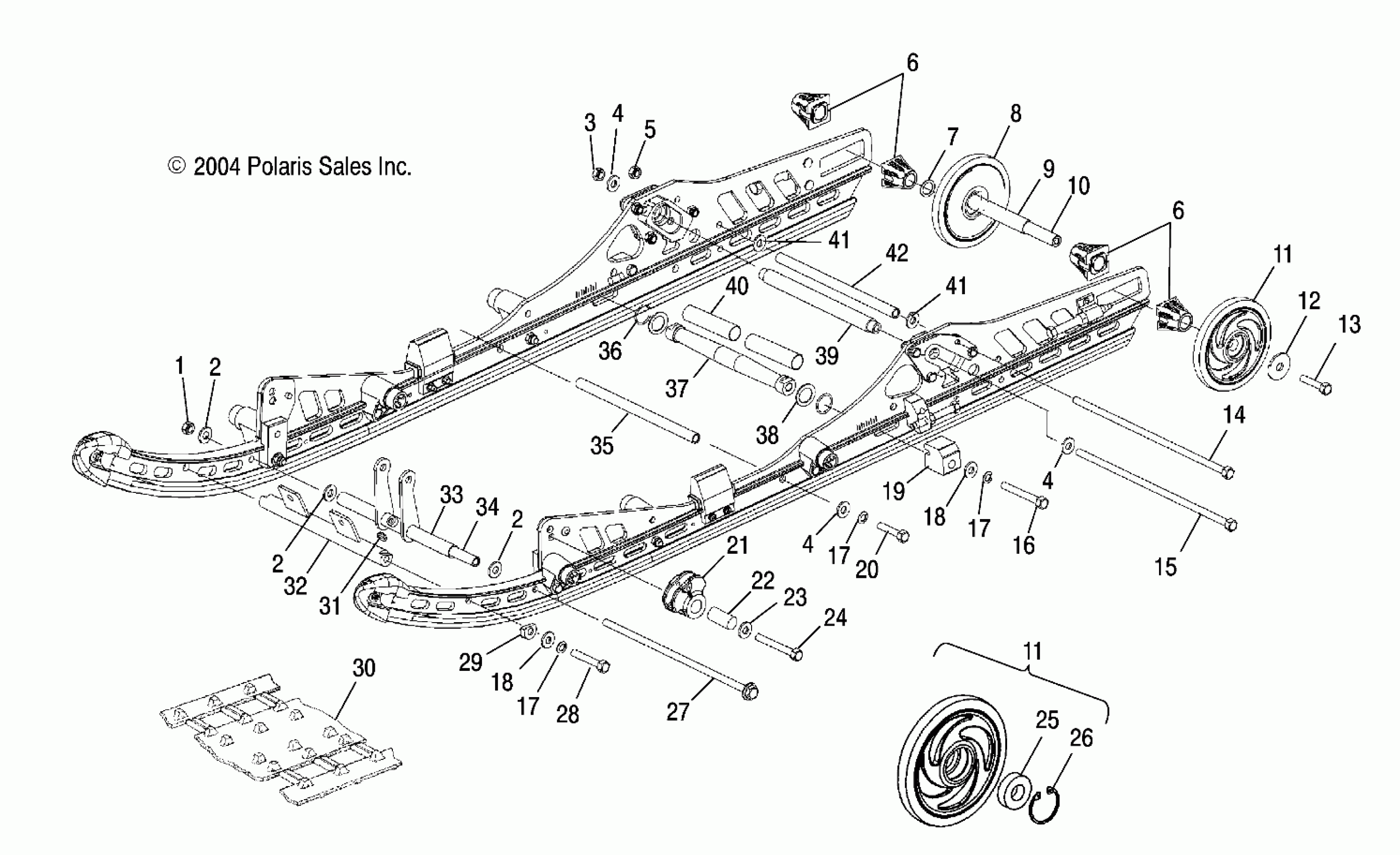

Polaris FRONTIER TOURING - S05NT7DS/DE REAR SUSPENSION - S05NT7DS/DE (4992889288B13) Diagram

#

Description
Price

1

Nut, Nylok

7547217

$3.99

2

WASHER, FLAT

7556216

$4.79

2

WASHER, FLAT

7556216

$4.79

2

WASHER, FLAT

7556216

$4.79

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

5

Nut, Nylok

7547064

Unavailable

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

ASM., WHEEL

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT, IDLER

5020744

$59.99

11

Asm., Idler Wheel, Slv Met

1590303-244

Unavailable

11

Asm., Idler Wheel, Slv Met

1590303-244

Unavailable

12

WASHER, BELLE

7556130

$6.39

13

BOLT

7517731

$1.49

14

Screw

7517896

Unavailable

15

Screw

7517821

Unavailable

16

Screw

7517856

Unavailable

17

Washer, Spring Lock

7552603

$1.49

17

Washer, Spring Lock

7552603

$1.49

17

Washer, Spring Lock

7552603

$1.49

18

WASHER

7556042

Unavailable

18

WASHER

7556042

Unavailable

19

Block, Shock Pivot Adjust

5132583

$16.39

20

Screw

7517247

$3.19

21

Guide, Spring, Square

5434897

$32.37

22

Bushing

5010332

$11.99

23

Washer, Flat

7555976

$3.99

24

Bolt

7515538

$6.39

25

BEARING

3514384

$19.84

26

RING-RETAINING

7710444

$8.79

27

Screw

7517996

Unavailable

28

Screw

7517857

$5.59

29

Spacer

5133351

$7.99

30

Clip, Slide

5241473

Unavailable

30

Clip, Guide

5241474

Unavailable

30

Track, 1 Inch, Lightening

5412298

$769.00

31

FITTING-LUBRICATION 1/4-28

7080424

$4.79

32

Shaft, Limiter Strap, Black

1012267-067

Unavailable

33

Arm, Shock Pivot, Black

1541797-067

Unavailable

34

Tube

5334042

Unavailable

35

Shaft

5020868

Unavailable

36

O-RING

5411092

$1.60

37

Shaft, Tapered

5132793

$89.03

38

Bushing

7556401

$4.99

39

Shaft, Rear Torque Arm, Lower

5133093

$28.79

40

Spacer, Shock Centering

5333902

$34.99

41

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

41

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

42

Tube

5333477

Unavailable
