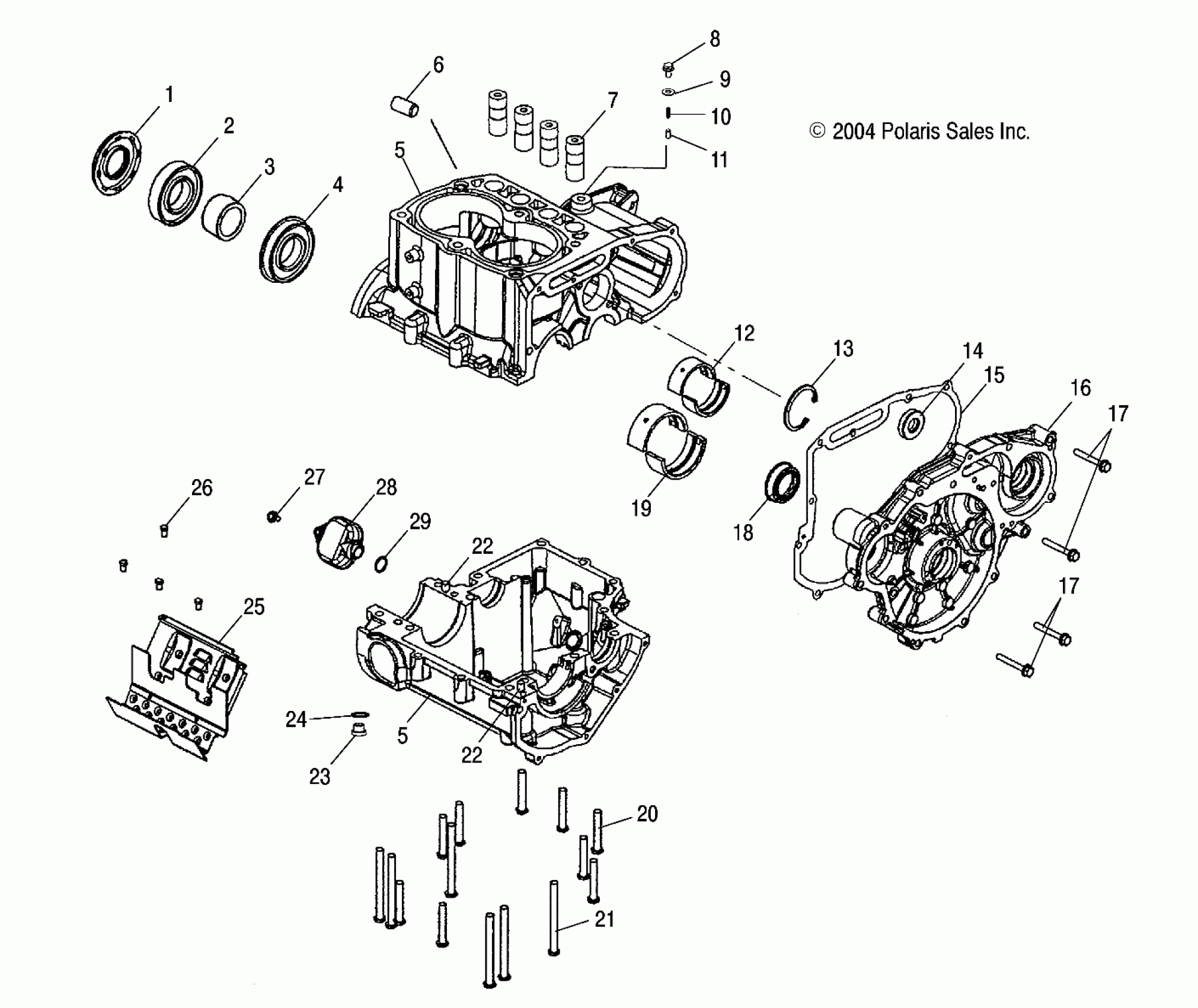

Polaris FRONTIER TOURING - S05NT7DS/DE CRANKCASE - S05NT7DS/DE (4992889288C10) Diagram

#

Description
Price

1

Seal, Flange

5412114

$39.99

2

BEARING, BALL

3514310

$39.99

3

Bushing

7556258

$36.79

4

BEARING, BALL

3514318

$43.99

5

Kit, Crankcase [Incl. 13,23-29]

2202133

Unavailable

5

Kit, Crankcase [Incl. 13,23-29]

2202133

Unavailable

6

Nipple, Oil Filter

2540115

Unavailable

7

Lifter, Valve

5134152

$30.88

8

SCREW

7516824

$39.99

9

WASHER

7556003

$6.39

10

Spring, Pressure Relief

7041563

$12.39

11

PIN, DOWEL

7661127

$12.94

12

Bearing, Journal Balance Shaft

5132753

Unavailable

13

RING, RETAINING

7710512

$3.99

14

SEAL, OIL

5412455

$24.27

15

Gasket, Cover

5812364

$24.27

16

Asm., Cover, Engine, Magneto

1200002

$246.89

17

Screw

7517950

$5.59

17

Screw

7517950

$5.59

18

Seal, Flanged

5412048

Unavailable

19

BEARING, MAIN JOURNAL

3585704

$28.56

20

SCREW

7517793

$5.59

21

SCREW

7517792

$2.39

22

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

22

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

23

PLUG, SOCKET

7052306

$15.37

24

WASHER, COPPER

5812232

$1.59

25

Baffle, Oil

1202113

Unavailable

26

SCREW

7518045

$10.39

27

BOLT

7516603

$10.39

28

Asm., Oil Pickup

1201970

Unavailable

29

SEAL, O-RING

5812016

$3.19
