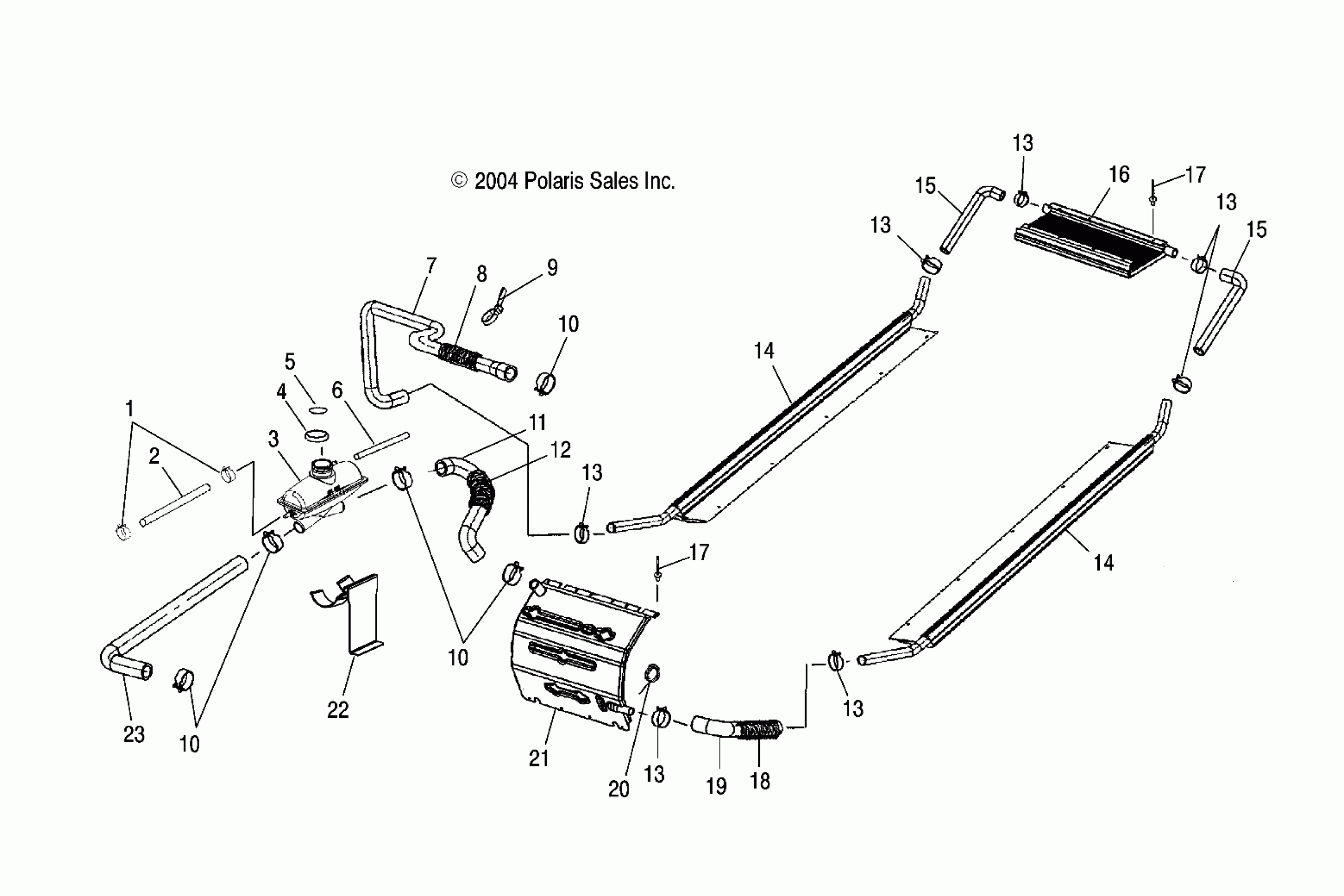

Polaris FRONTIER TOURING - S05NT7DS/DE COOLING SYSTEM - S05NT7DS/DE (4992889288B09) Diagram

#

Description
Price

1

HOSE CLAMP, RED

7080003

$1.49

2

Line

8450040

Unavailable

3

Bottle, Coolant

2520319

$64.75

4

Cap, Pressure

2511270

$24.27

5

DECAL, WATER BOTTLE CAP

7170063

$4.03

6

Line, Fuel

8450003-1525

$84.99

7

Hose, Engine Out/Side Cooler, RH

5412327

$78.39

8

TUBING, CONVOLUTED

5521324

$9.70

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

CLAMP, SPRINGBAND

7080844

$10.39

10

CLAMP, SPRINGBAND

7080844

$10.39

10

CLAMP, SPRINGBAND

7080844

$10.39

11

Hose, Center Cooler/Bottle

5412198

$24.79

12

TUBING, CONVOLUTED

5521510

$29.99

13

CLAMP, SPRINGBAND

7080841

$7.19

13

CLAMP, SPRINGBAND

7080841

$7.19

13

CLAMP, SPRINGBAND

7080841

$7.19

13

CLAMP, SPRINGBAND

7080841

$7.19

13

CLAMP, SPRINGBAND

7080841

$7.19

13

CLAMP, SPRINGBAND

7080841

$7.19

14

Cooler, Running Board, LH

1240133

Unavailable

14

Cooler, Running Board, RH

1240134

$278.99

14

Cooler, Running Board, LH

1240133

Unavailable

14

Cooler, Running Board, RH

1240134

$278.99

15

Hose, Side Cooler/Rear Cooler

5412255

Unavailable

15

Hose, Side Cooler/Rear Cooler

5412255

Unavailable

16

Exchanger, Close-Off, Rear

1240150

Unavailable

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

18

Tubing, Convoluted

5521602

Unavailable

19

Hose, Gripper/Center Cooler

5412083

Unavailable

20

SPACER-RUBBER

5810291

$3.99

21

Center Cooler, 2 Outlet

1240128

$72.99

22

Bracket, Coolant Bottle

5246194

Unavailable

23

Hose, Bottle/Engine In

5412183

$35.51
