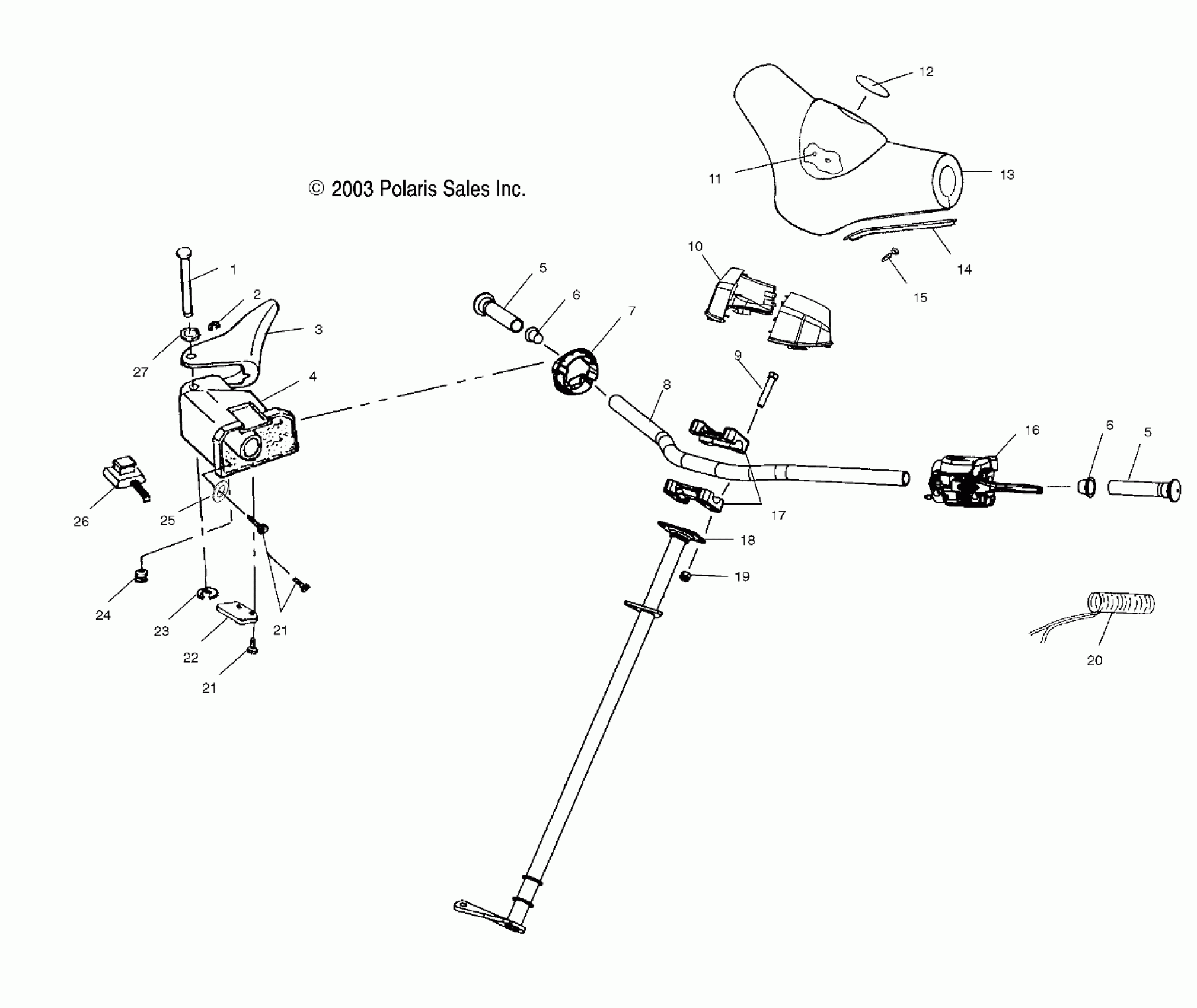

Polaris FRONTIER TOURING - S04NT7DS STEERING - S04NT7DS (4988498849B05) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

3

LEVER, THROTTLE

5432970

$29.03

3

ASM., LEVER W/HEATER, HI/LO

2010171

$84.98

4

BLOCK, THROTTLE/BRAKE

5431592

$49.99

5

Grip, Handlebar

5432634

$24.27

5

Grip, Handlebar

5432634

$24.27

6

PLUG, OVERFLOW

5431096

$2.02

6

PLUG, OVERFLOW

5431096

$2.02

7

ADAPTOR, BLOCK, THROTTLE

5433345

$15.99

8

Handlebar

5243355-067

$94.99

9

SCREW

7517238

$4.79

10

Collar, Console, LH

5434487

$24.99

10

Collar, Console, RH

5434488

Unavailable

11

Nut, Push-On

7670106

$2.39

12

Emblem, Star

5434179

Unavailable

13

Cover, Handlebar

5433159-070

$77.99

14

Slide, Handlebar Cover

5433160-070

$28.32

15

CLIP, DART, NYLON

4010287

$3.99

16

ASM., CONTROL, LH [SEE BRAKE PG. B3, REF. 13]

-------

Unavailable

17

Block, Handlebar

5630187-067

$44.99

18

Post, Steering

1821155-067

$126.57

19

Nut, Nylok

7542122

$1.49

20

Heater, Grip, Lo/Med/Hi

2460677

$60.70

21

Screw

7511848

$3.99

21

Screw

7511848

$3.99

22

HOLDER, WIRE

5432261

$24.27

23

RING-RETAINING EXTERNAL

7710401

$3.99

24

SCREW, SET

7512465

$3.99

25

WASHER

7555727

$1.49

26

Switch, Auxiliary Shut-Off

4110106

$94.99

27

WASHER

7555730

$3.99
