Description

Price

1

SCREW

7515385

$5.59

2

Washer, Flat

7555959

$4.99

2

Washer, Flat

7555959

$4.99

3

Wheel, Track Carrier

1543013

$48.56

4

Bolt

7512310

$2.39

5

Mount, Wheel

5134128

$32.15

6

Arm, Torque, Rear, Cloud Silver

1541798-385

Unavailable

7

Nut, FLEXLOC, Thin

7542411

$3.19

7

Nut, FLEXLOC, Thin

7542411

$3.19

7

Nut, FLEXLOC, Thin

7542411

$3.19

8

Shock, Rear, Track

7042141

Unavailable

9

Retainer, Spring

5132064

$47.29

10

Shield, Spring

5434921

$9.52

11

SLEEVE

5333905

$15.99

12

Screw

7515433

$1.59

12

Screw

7515433

$1.59

13

Spring, Compression

7042161

Unavailable

14

Bearing

3514450

$7.19

15

SHAFT, TAPERED [SEE REAR SUSPENSION PG. B13, REF. 6]

-------

Unavailable

16

Shaft, Rear Torque Arm, Upper

5133484

Unavailable

17

Sleeve, Torsion Spring

5434627

$44.51

18

Spring, Torsion, .405/77, LH

7042240-067

Unavailable

18

Spring, Torsion, .405/77, RH

7042241-067

Unavailable

19

Washer

7556296

Unavailable

20

Bearing

3514330

$31.99

20

Ring, Retaining

7710471

$13.59

20

Asm., Wheel, Offset

1590355

$49.21

21

Washer, Wave

7556303

Unavailable

22

WASHER-LOCK, 7/16-B

7552614

$1.59

23

Screw, Socket Head

7517815

Unavailable

24

Washer, Flat

7555984

$2.39

25

Screw, Socket Set

7512257

$3.99

25

Collar, Bearing Lock

5134207

$9.59

26

SHAFT, REAR TORQUE ARM, LOWER [SEE REAR SUSPENSION PG. B10, REF. 37]

-------

Unavailable

27

FITTING-LUBRICATION 1/4-28

7080424

$4.79

28

Bushing, Nylon

3514441

Unavailable

28

Bushing, Nylon

3514441

Unavailable

29

CLIP-PUSH ON

7080394

$2.39

30

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

31

Rod, Shock

1541821

Unavailable

31

Rod, Shock

1541821

Unavailable

32

Screw

7517378

Unavailable

33

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

33

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

34

Spacer

5333028

$1.59

34

Spacer

5333028

$1.59

35

Shock, Front Track

7041486

$214.99

36

Retainer, Spring

1500091

$27.83

37

Ring, Spring Preload, Adjust

5431734

$52.60

38

Spring, Compression

7041404-067

$144.99

39

Shield, Spring

5410874

$20.22

40

Retainer, Spring Slotted

5020618

$24.99

41

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

42

WASHER, FLAT

7555960

$3.99

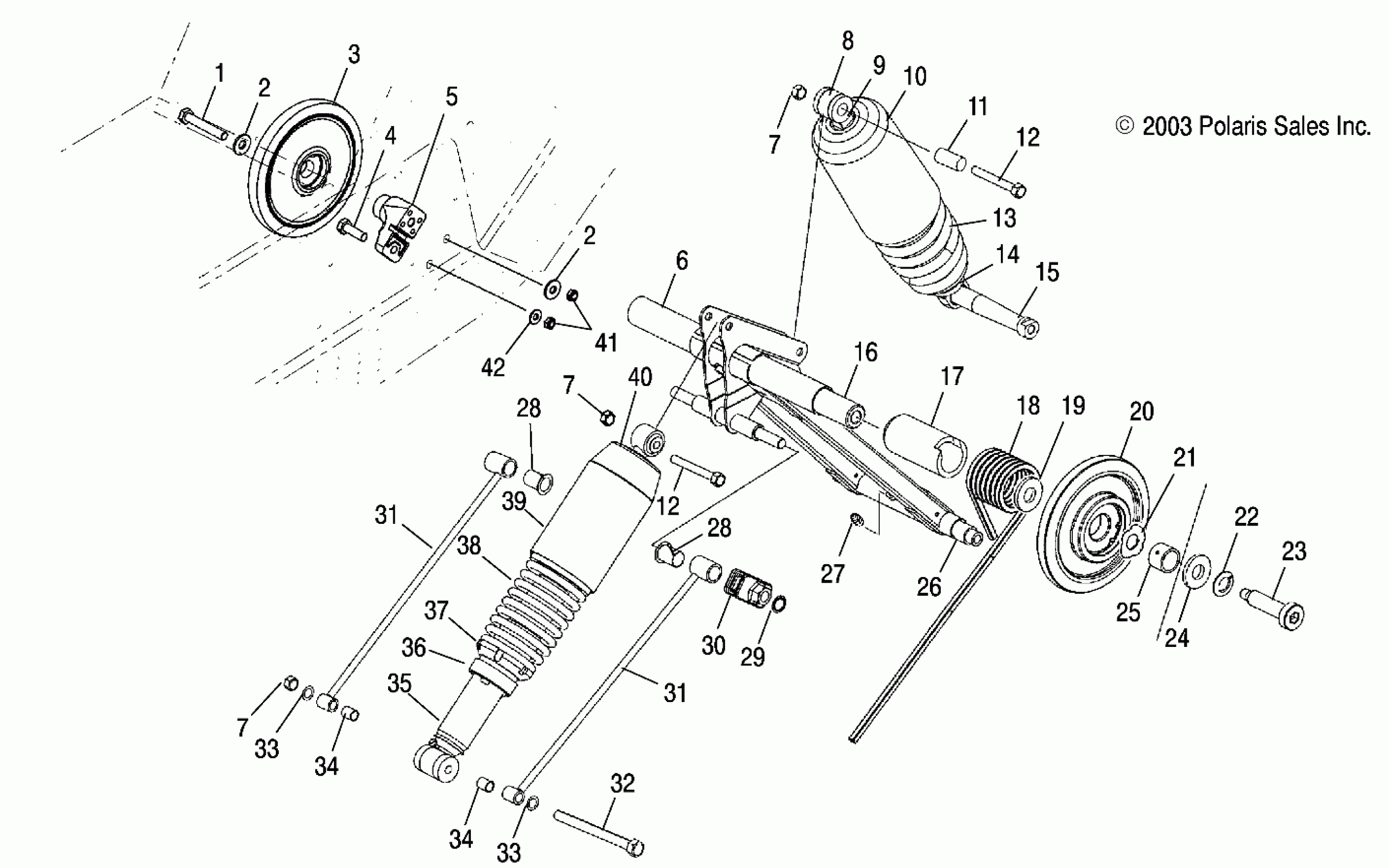

Polaris FRONTIER TOURING - S04NT7DS REAR TORQUE ARM - S04NT7DS (4988498849C01) Diagram

SCREW

Washer, Flat

Washer, Flat

Wheel, Track Carrier

Bolt

Mount, Wheel

Arm, Torque, Rear, Cloud Silver

Nut, FLEXLOC, Thin

Nut, FLEXLOC, Thin

Nut, FLEXLOC, Thin

Shock, Rear, Track

Retainer, Spring

Shield, Spring

SLEEVE

Screw

Screw

Spring, Compression

Bearing

SHAFT, TAPERED [SEE REAR SUSPENSION PG. B13, REF. 6]

Shaft, Rear Torque Arm, Upper

Sleeve, Torsion Spring

Spring, Torsion, .405/77, LH

Spring, Torsion, .405/77, RH

Washer

Bearing

Ring, Retaining

Asm., Wheel, Offset

Washer, Wave

WASHER-LOCK, 7/16-B

Screw, Socket Head

Washer, Flat

Screw, Socket Set

Collar, Bearing Lock

SHAFT, REAR TORQUE ARM, LOWER [SEE REAR SUSPENSION PG. B10, REF. 37]

FITTING-LUBRICATION 1/4-28

Bushing, Nylon

Bushing, Nylon

CLIP-PUSH ON

ROLLER-SPRING,ADJ,SQUARE,X10

Rod, Shock

Rod, Shock

Screw

WASHER-.390X.750X.020-WAVE-Y

WASHER-.390X.750X.020-WAVE-Y

Spacer

Spacer

Shock, Front Track

Retainer, Spring

Ring, Spring Preload, Adjust

Spring, Compression

Shield, Spring

Retainer, Spring Slotted

NUT-5/16-18 HX FLG NL-Y

WASHER, FLAT
