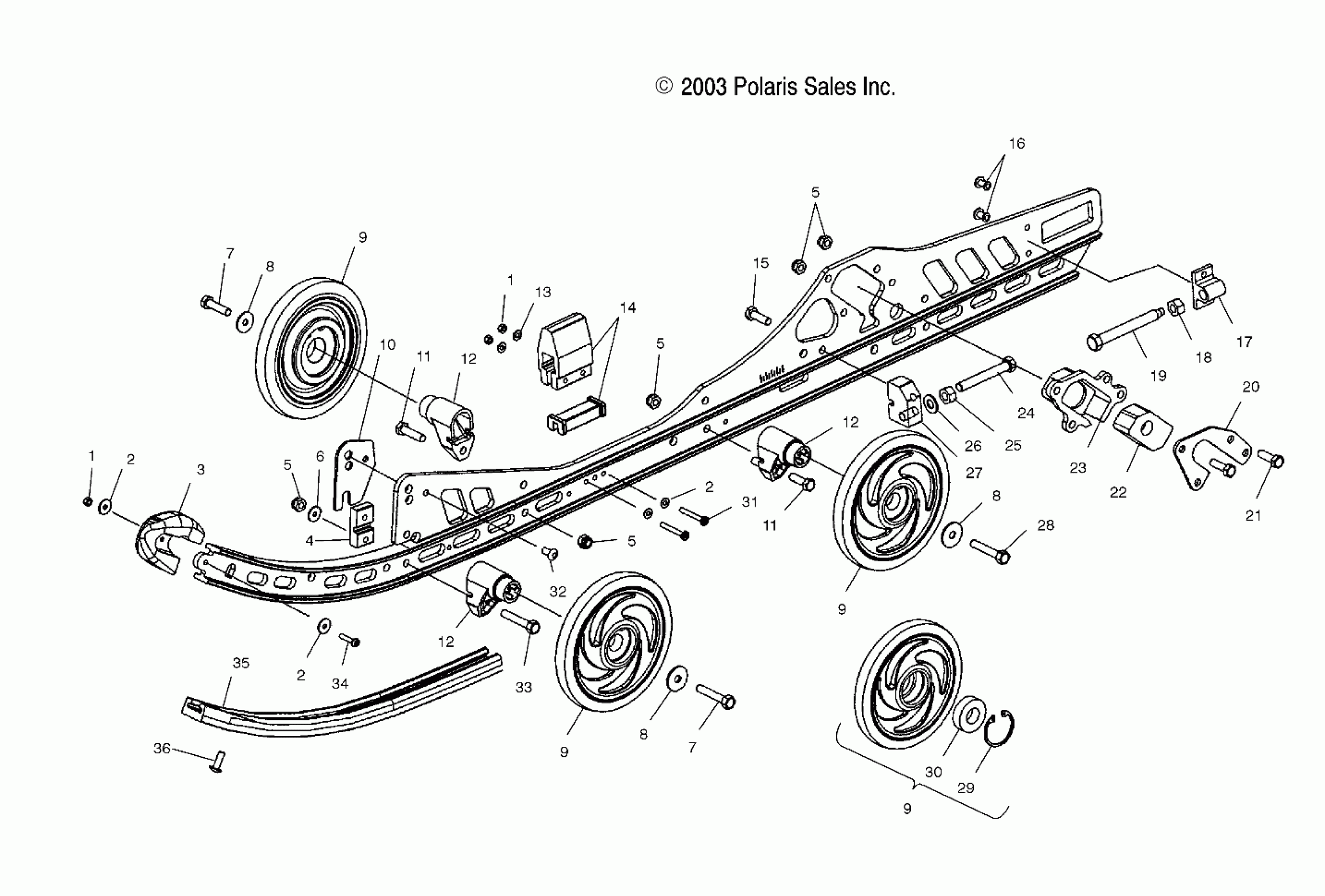

Polaris FRONTIER TOURING - S04NT7DS RAIL MOUNTING - S04NT7DS (4988498849B12) Diagram

#

Description
Price

-

Asm., Rail, M-12 LH [Incl. 1-3,14,16,17,31,34]

1542004

$419.99

-

Asm., Rail, M-12, RH [Incl. 1-3,14,16,17,31,34]

1542005

$419.99

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Cap, Rail Tip

5434374

$20.22

4

Block, Rail Support

5132577

Unavailable

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

BOLT

7515382

$2.39

7

BOLT

7515382

$2.39

8

Washer, Spring

7556179

$7.99

8

Washer, Spring

7556179

$7.99

8

Washer, Spring

7556179

$7.99

9

Asm., Wheel, Scrolled, Silver [Incl. 29,30]

1590318-244

Unavailable

9

Asm., Wheel, Scrolled, Silver [Incl. 29,30]

1590318-244

Unavailable

9

Asm., Wheel, Scrolled, Silver [Incl. 29,30]

1590318-244

Unavailable

9

Asm., Wheel, Scrolled, Silver [Incl. 29,30]

1590318-244

Unavailable

10

Plate, Rail Support

5244651

$9.84

11

BOLT

7515317

$4.79

11

BOLT

7515317

$4.79

12

Block, Wheel Mount, LWT

5631065

$28.32

12

Block, Wheel Mount, LWT

5631065

$28.32

12

Block, Wheel Mount, LWT

5631065

$28.32

13

Washer, Flat

7555783

$3.99

14

LINER-BUMPER

5432946

$9.70

14

Bumper

5412336

$9.84

15

Screw

7512392

$4.79

16

RIVET

7621501

$2.39

17

Block, Idler Bolt Adjust

5132444

$28.32

18

Nut, Jam

7547156

$9.59

19

Screw

7517773

$28.56

20

Plate, Coupler Block

5245045

Unavailable

21

Bolt

7512310

$2.39

22

Block, Slider, Long, LH

5434885

$19.03

22

Block, Slider, Long, RH

5434886

$18.25

23

Guide, Slider, LH

5631188

$51.59

23

Guide, Slider, RH

5631189

Unavailable

24

Bolt

7515511

$3.99

25

NUT

7542404

$1.59

26

Washer, Flat

7555806

$1.49

27

Block, Shock Pivot Threaded

5132584

$45.99

28

Screw

7515346

$5.59

29

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

30

BEARING [1 PER WHEEL]

3514303

$11.99

31

Screw

7510504

$6.76

32

RIVET

7661845

$1.49

33

Bolt

7512329

$3.99

34

Screw

7511975

Unavailable

35

Hi-Fax

5521632

$39.98

36

Screw

7515199

$1.49
