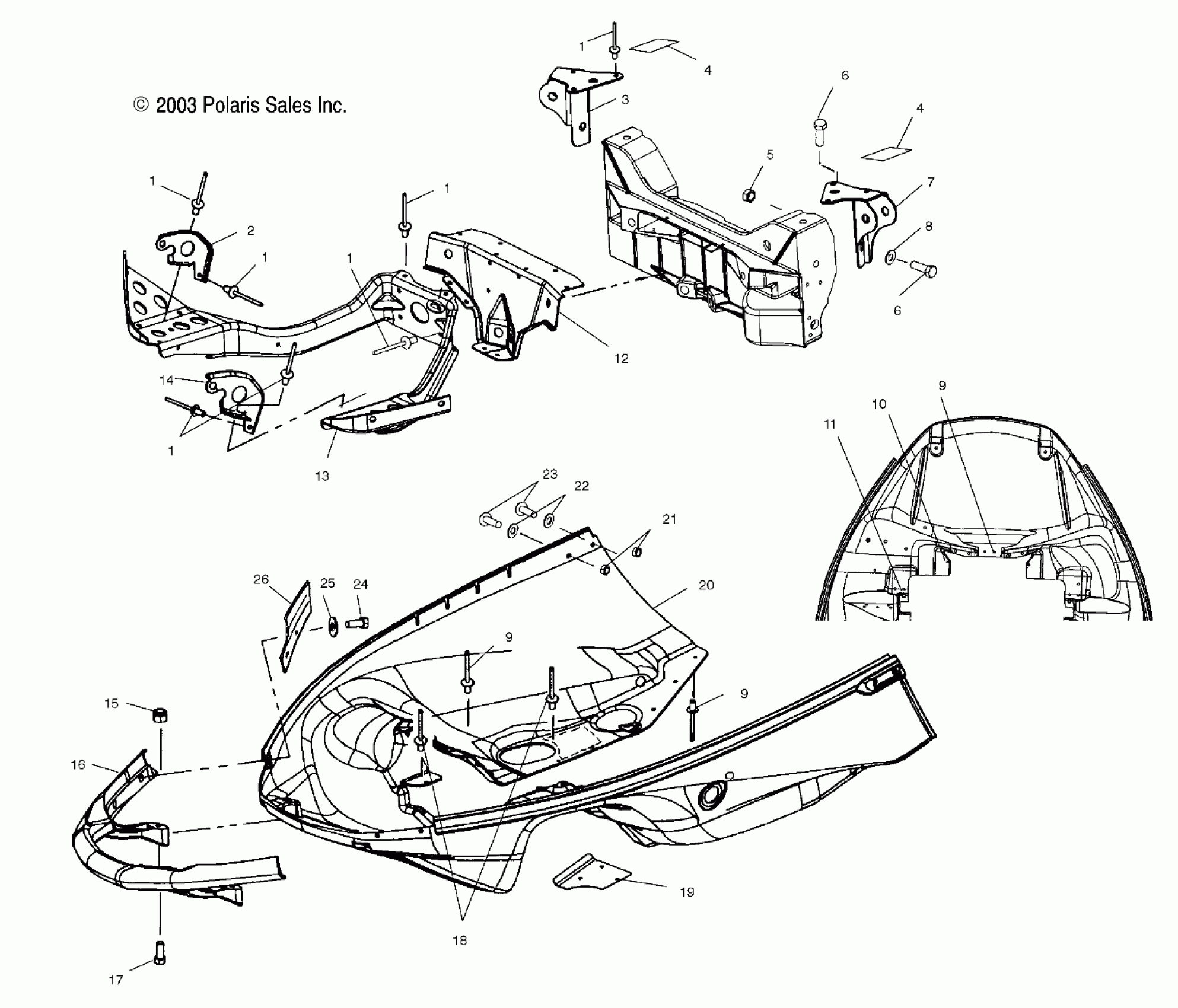

Polaris FRONTIER TOURING - S04NT7DS NOSEPAN - S04NT7DS (4988498849A08) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

Mount, Shock, RH

5243978

$21.43

4

FOAM-SEAL,REAR COOLER

5810947

$4.03

4

FOAM-SEAL,REAR COOLER

5810947

$4.03

5

Nut, Flanged, Nylon

7547180

$2.39

6

SCREW

7517935

$2.39

6

SCREW

7517935

$2.39

7

Mount, Upper Shock, LH

5243977

$32.95

8

WASHER

7556153

$1.99

9

RIVET

7621467

$1.49

9

RIVET

7621467

$1.49

9

RIVET

7621467

$1.49

10

RIVET

7621431

$1.49

11

Rivet

7661136

Unavailable

12

Bracket, Radius Rod Support

5244049-067

Unavailable

13

Brace, Pan, Lower

5244050

$137.60

14

Hinge, Pivot, Lower, LH

5243991-067

$104.99

15

NUT, FLANGED, NYLOK

7542153

$1.59

16

Asm., Bumper, Front

5433518-070

$64.75

17

Bolt

7512163

$3.99

18

RIVET

7621472

$1.49

19

Shield, Exhaust, Heat, Extended

5245853

$11.59

20

Nosepan, Stone Silver

5434183-397

$115.08

21

Nut, Nylok

7542122

$1.49

22

WASHER

7555827

$3.99

23

Screw

7515166

$3.19

24

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

25

WASHER, SPRING LOCK

7552801

$1.59

26

Guide, Hood, LH

5244888

Unavailable

26

Guide, Hood, RH

5244889

Unavailable
