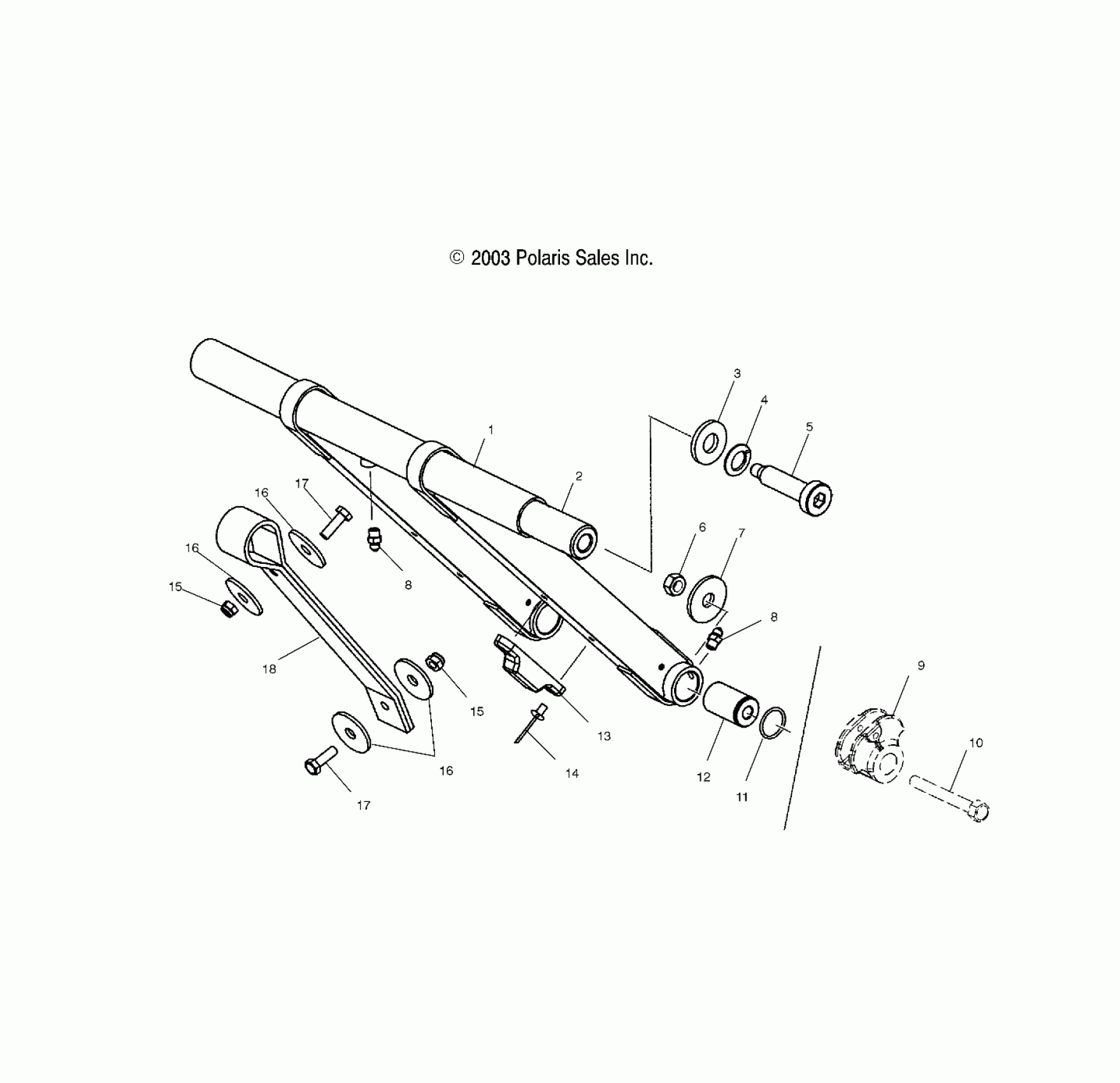

Polaris FRONTIER TOURING - S04NT7DS FRONT TORQUE ARM - S04NT7DS (4988498849B14) Diagram

#

Description
Price

1

Arm, Front Torque Silver

1541816-385

Unavailable

2

Shaft, Front Torque Arm, Upper

5020812

Unavailable

3

Washer, Flat

7555984

$2.39

4

WASHER-LOCK, 7/16-B

7552614

$1.59

5

Screw

7517815

Unavailable

6

Nut, Nylok

7542439

$1.49

7

Washer, Flat

7555743

Unavailable

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

8

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

GUIDE, SPRING SQUARE [SEE REAR SUSPENSION PG. B13, REF. 24]

-------

Unavailable

10

BOLT [SEE REAR SUSPENSION PG. B13, REF. 27]

-------

Unavailable

11

O-Ring

5412022

Unavailable

12

Shaft

5133531

Unavailable

13

Bumper, Front Torque Arm

5432166

$5.59

14

RIVET

7621418

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

Washer, Flat

7556175

$5.99

16

Washer, Flat

7556175

$5.99

16

Washer, Flat

7556175

$5.99

17

Screw

7512392

$4.79

17

Screw

7512392

$4.79

18

Strap, Limiter

5412225

Unavailable
