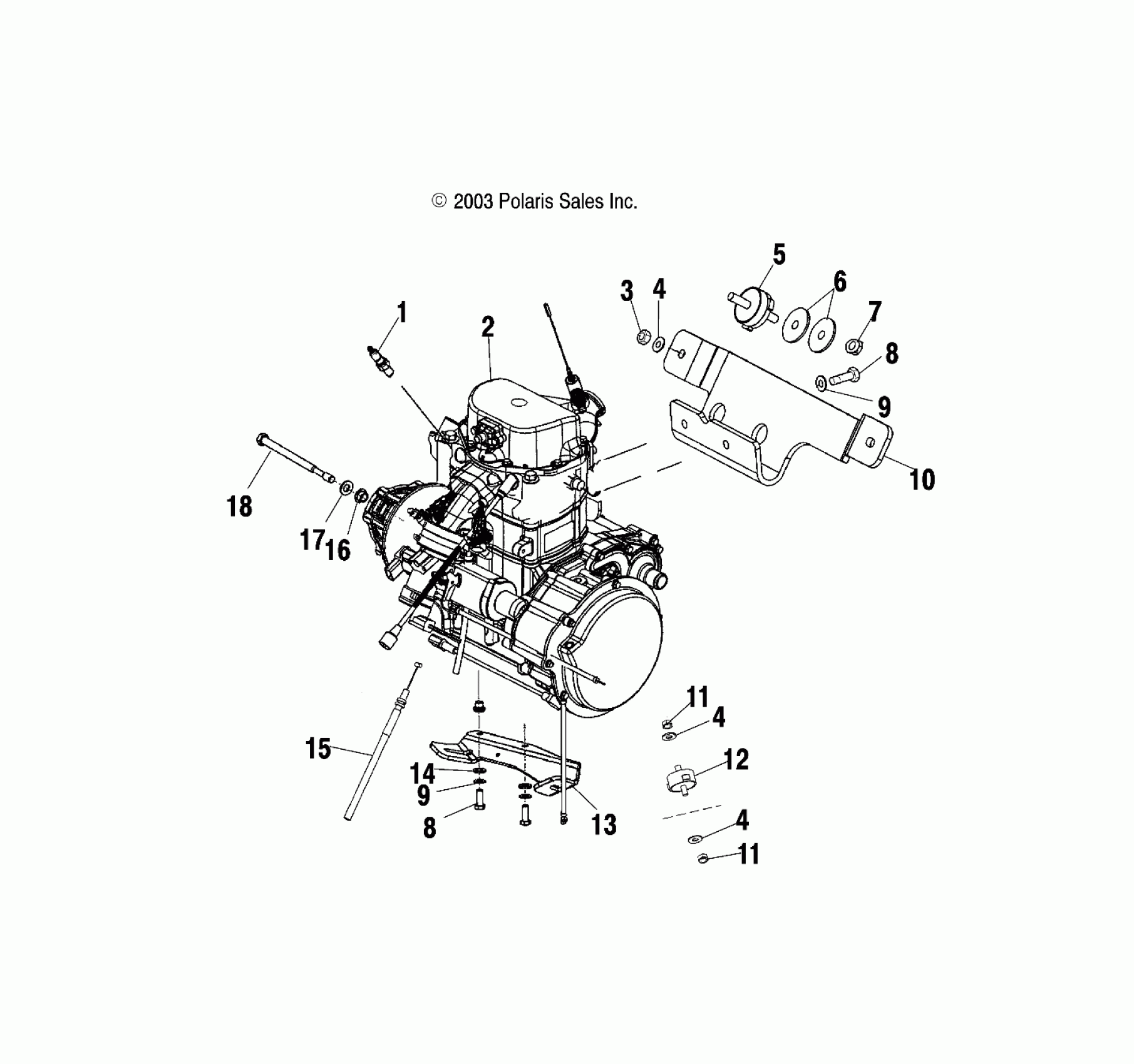

Polaris FRONTIER TOURING - S04NT7DS ENGINE MOUNTING - S04NT7DS (4988498849C09) Diagram

Plug, Spark, Champion, RC7YC

3070195

Unavailable

Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty

2202131

Unavailable

Nut, FLEXLOC

7542402

$6.39

Washer, Flat

7555893

$1.49

Washer, Flat

7555893

$1.49

Washer, Flat

7555893

$1.49

Mount, Engine

3021428

$12.39

Washer, Flat

7555915

$3.19

Nut, Flanged, Nylon

7547180

$2.39

Screw

7512490

$3.99

Screw

7512490

$3.99

Washer, Spring Lock

7552603

$1.49

Washer, Spring Lock

7552603

$1.49

Bracket, Engine Mount, Front

5247220

$49.59

NUT, FLEXLOC

7547008

$6.39

NUT, FLEXLOC

7547008

$6.39

Mount, Engine

3021346

$12.30

Strap, Engine Mount, Rear

5245483

$78.39

WSHR-.813X.406X.105-Y

7555832

$2.39

Cable, Throttle

7081032

$40.79

WASHER, CLUTCH RETAINER

5131872

Unavailable

Washer, Bevel

7556003

$6.39

Screw

7517501

Unavailable
