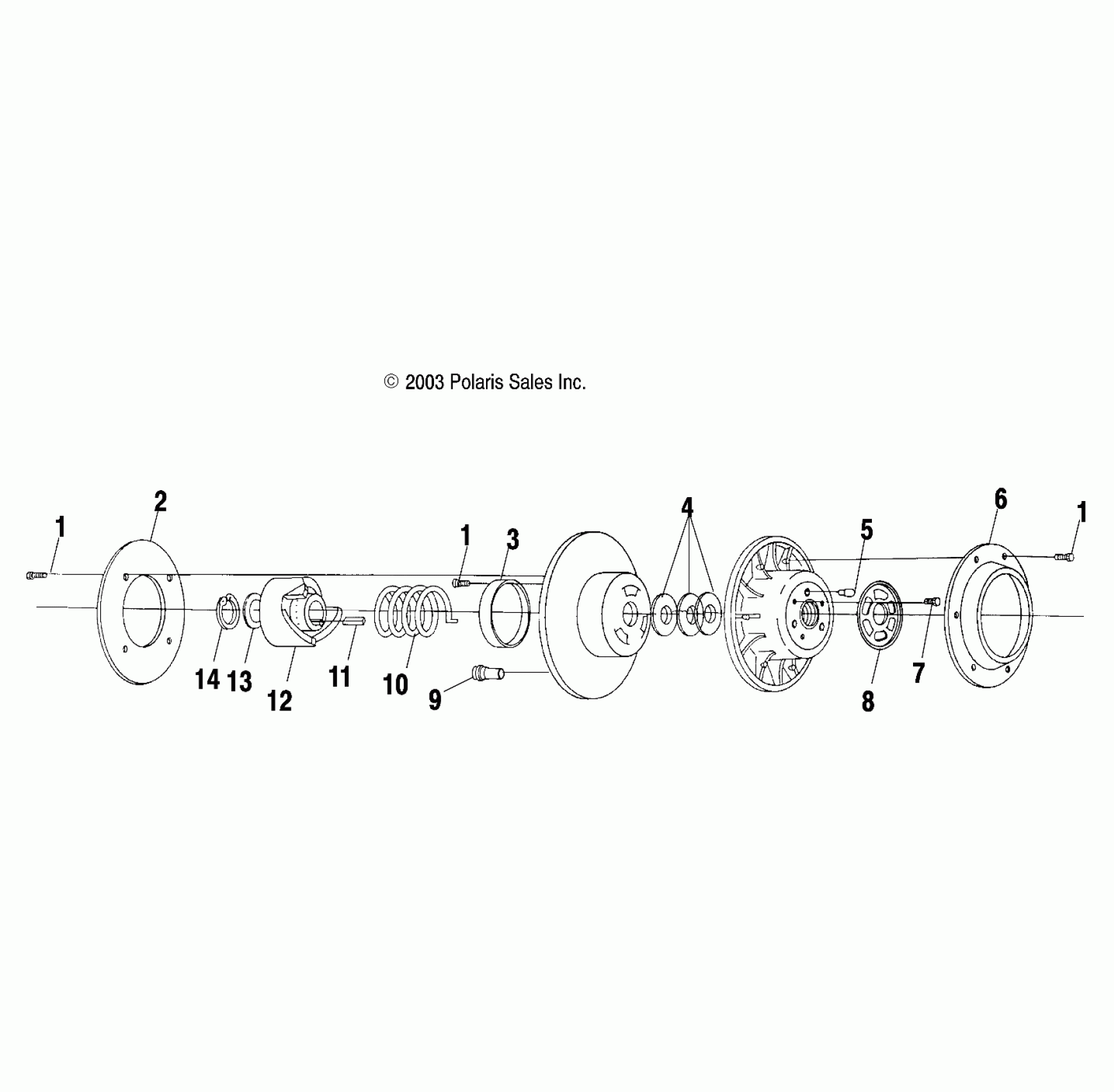

Polaris FRONTIER TOURING - S04NT7DS DRIVEN CLUTCH - S04NT7DS (4988498849C04) Diagram

#

Description
Price

-

Asm., Driven Clutch, Basic 204 [Incl. All Less 2,6,10,12]

1321927

Unavailable

1

Screw

7512048

Unavailable

1

Screw

7512048

Unavailable

1

Screw

7512048

Unavailable

2

Plate, Driven, Vented

5243158

$131.99

3

Bushing, Driven, Large DU

3569803

Unavailable

4

Washer [.03]

7556804

Unavailable

4

Washer [.02]

7555898

Unavailable

4

Washer [.025]

7556076

Unavailable

4

Washer [.075]

7555865

Unavailable

5

Pin, Adjustable Driven

5020653

$34.99

6

Cap, Driven, Vented

5243157

Unavailable

7

BOLT

7515133

$3.99

8

Cam, Adjustable Driven

5222878

$29.03

9

Button, Ramp

5430466

$6.46

10

Spring, Clutch, Silver

7041499

$56.65

11

Key

7721103

$5.65

12

Ramp, Driven, R11

5131297

Unavailable

13

Washer

7556804

$1.49

14

RING, RETAINING

7714804

$9.59
