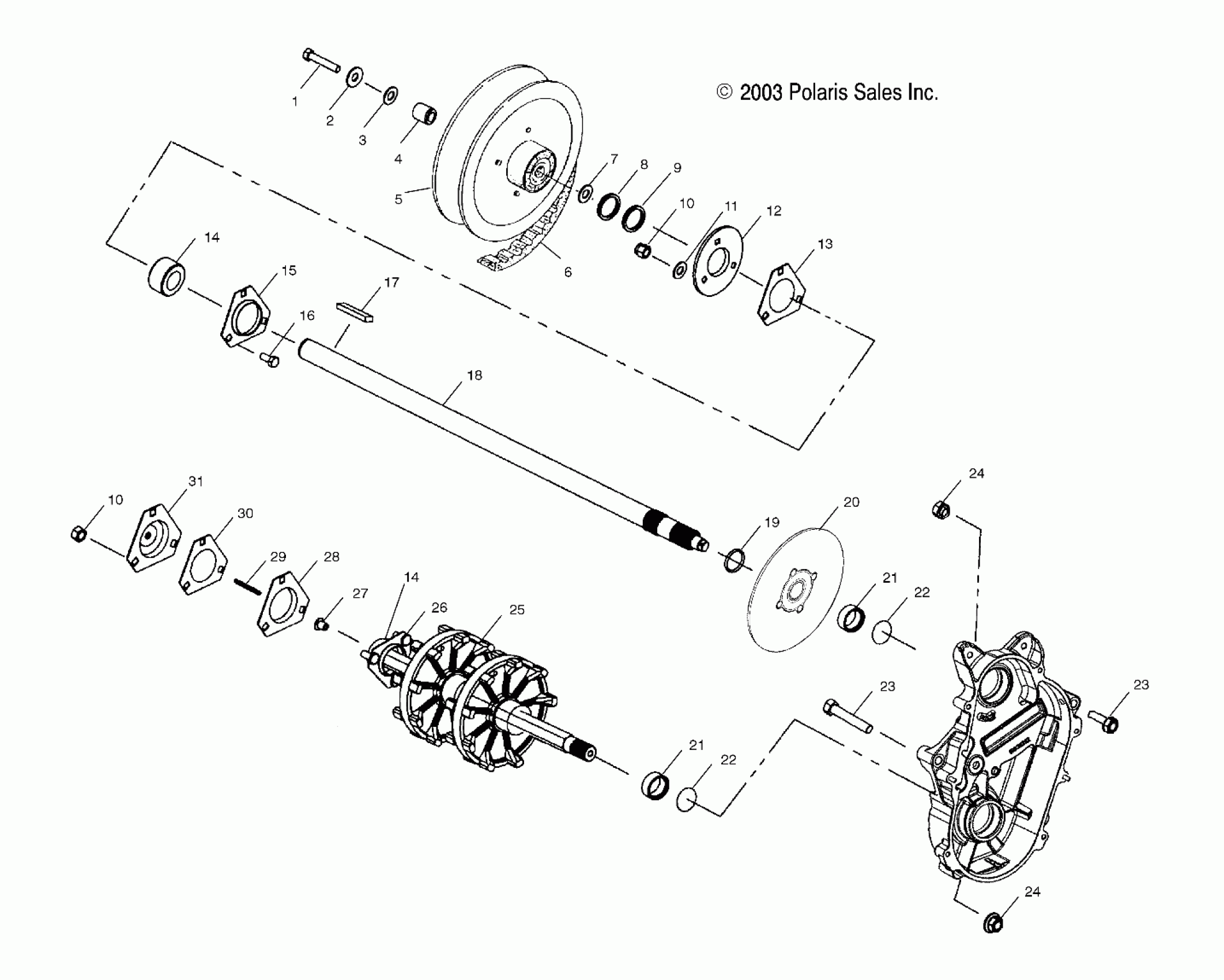

Polaris FRONTIER TOURING - S04NT7DS DRIVE TRAIN - S04NT7DS (4988498849B11) Diagram

#

Description
Price

1

Bolt

7517820

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5020291

Unavailable

5

ASM., DRIVEN CLUTCH, R8 [SEE DRIVEN CLUTCH PG. C4 FOR DETAILS]

-------

Unavailable

6

Belt, Drive

3211092

Unavailable

7

WASHER

7555917

Unavailable

8

WASHER

7555864

Unavailable

9

Bushing

7556509

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Fitting, Lubrication

7080561

$4.79

12

Flangette w/Grease Zerk

5241359

$32.37

13

Gasket, Jackshaft

5811095

$2.41

14

BEARING

3514525

$31.99

14

BEARING

3514525

$31.99

15

FLANGETTE

5222751

$16.44

16

Bolt, Carriage

7512377

$4.79

17

Key

7721128

$10.39

18

Asm., Jackshaft [Incl. 14,19]

1332283

$159.99

19

RING, RETAINING

7710422

$3.99

20

Disc, Brake

1910612

Unavailable

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O-RING

5410613

$1.99

22

O-RING

5410613

$1.99

23

Bolt, Carriage

7515428

$4.79

23

Bolt, Carriage

7515428

$4.79

24

Nut, Flange

7542423

$3.99

24

Nut, Flange

7542423

$3.99

25

Asm., Drive Shaft [Incl. 14,26,27]

1590346

$411.49

26

ASM., FLANGETTE W/SCREWS

1012945

$114.99

27

Bushing, Metal, Speedometer

3280019

$11.99

28

Flangette, Offset, w/Hole

5243529

$13.75

29

Key, Square, Speedometer

3280017

$13.75

30

Gasket, Drive Adaptor

5830012

$2.41

31

Adaptor w/Zerk, Drive

3280116

$101.17
