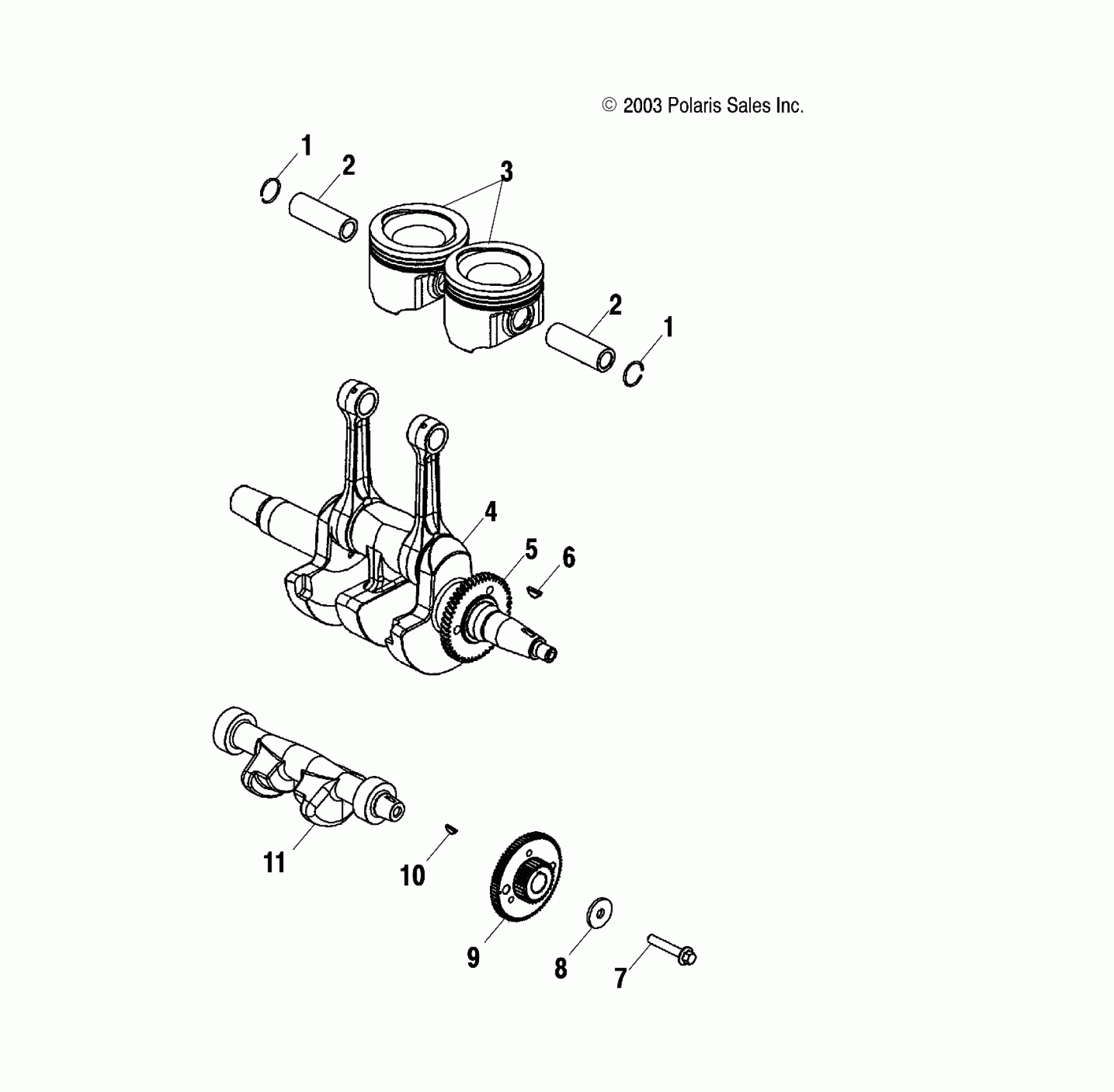

Polaris FRONTIER TOURING - S04NT7DS CRANKSHAFT and PISTON - S04NT7DS (4988498849C11) Diagram

#

Description

Price

-

Kit, Piston [Incl. 1,2,3]

2202445

Unavailable

1

Circlip, Piston

3021264

$4.76

1

Circlip, Piston

3021264

$4.76

2

Pin, Piston

3021263

$19.60

2

Pin, Piston

3021263

$19.60

3

Kit, Piston Rings

2202136

Unavailable

4

Kit, Crankshaft [Incl. 5][See Crankcase Pg. C10, Ref. 2,3,4,19]

2202132

Unavailable

5

Gear, Crankshaft

5133220

Unavailable

6

KEY, WOODRUFF

7721117

$24.99

7

SCREW

7517865

$11.19

8

WASHER-RETAINING,8.5X28X3

7555982

Unavailable

9

KIT, GEAR SET [INCL. 5,9][SEE INTAKE & EXHAUST PG. C13, REF. 6]

-------

Unavailable

10

KEY, WOODRUFF

7721131

$23.99

11

Shaft, Balance

5132485

$190.46
