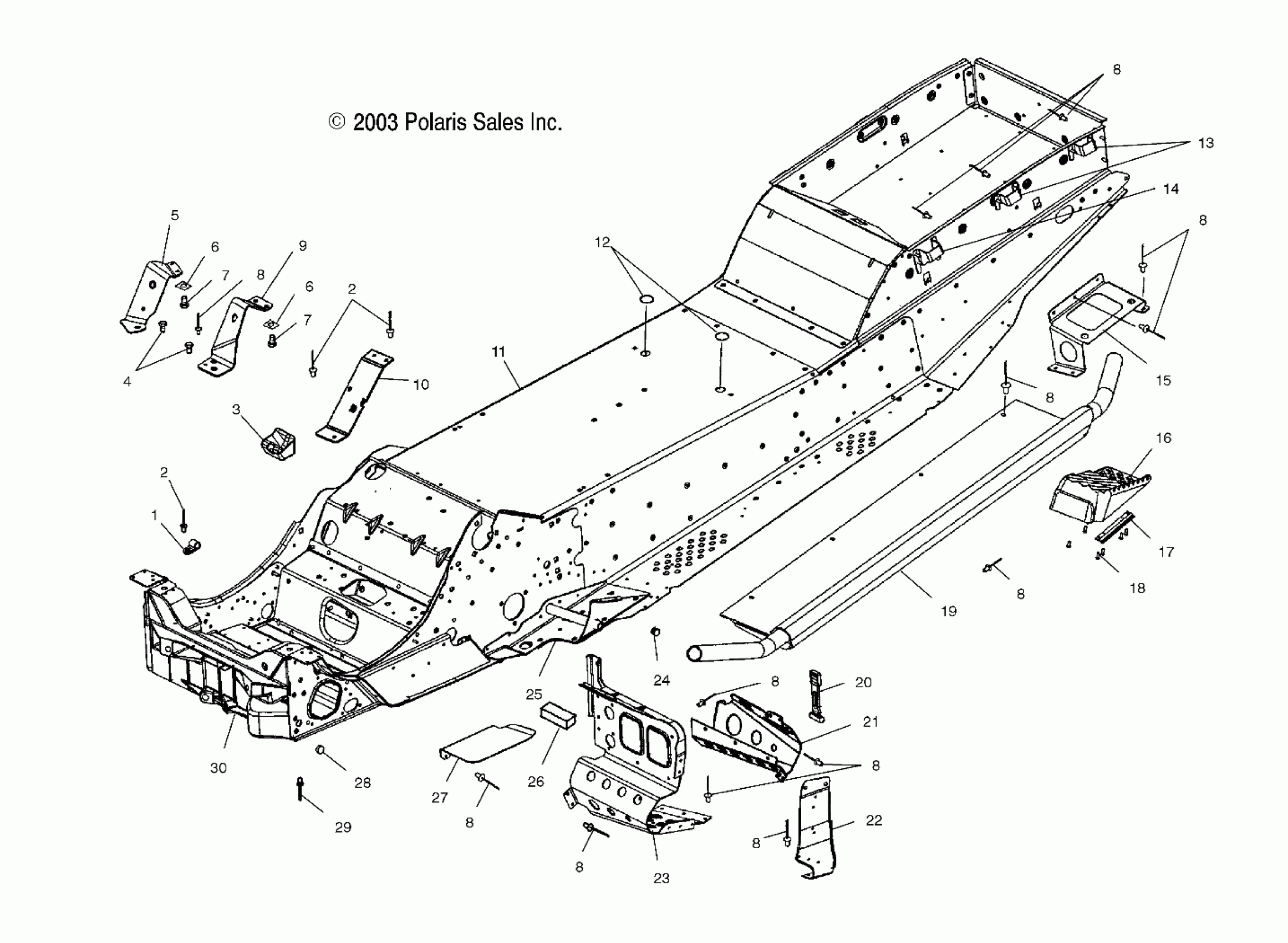

Polaris FRONTIER TOURING - S04NT7DS CHASSIS - S04NT7DS (4988498849A03) Diagram

#

Description
Price

1

CLAMP, HOSE

7080693

$5.59

2

Rivet

7621432

$1.49

2

Rivet

7621432

$1.49

3

Stop, Torque

5412224

$20.63

4

Screw

7517854

$5.59

5

Mount, Engine, Rear, LH

1013542

$42.39

6

Nut, Speed

7670021

$6.99

6

Nut, Speed

7670021

$6.99

7

BOLT, CARRIAGE

7515203

$3.99

7

BOLT, CARRIAGE

7515203

$3.99

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

9

Mount, Engine, Rear, RH

1013543

$42.39

10

Asm., Bracket, Coil w/Nuts

1013786

$41.59

11

Chassis, Frontier, Natural

1014455-309

Unavailable

12

Caplug

7080592

Unavailable

13

Hook, Cargo

5246278-067

$3.02

14

Hook, Cargo, Front

5246439-067

$3.03

15

Bracket, Lower Accessory, Attach, LH

5246275-067

$21.43

15

Bracket, Lower Accessory, Attach, RH

5246276-067

$20.63

16

Asm., Footrest, Passenger, LH [Incl.. 17,18]

1013857

$41.59

16

Asm., Footrest, Passenger, RH [Incl.. 17,18]

1013858

$41.27

17

Mount, Passenger Footrest

5246435

Unavailable

18

SCREW

7512076

$1.49

19

Cooler, Running Board, LH

1240133

Unavailable

19

Cooler, Running Board, RH

1240134

$278.99

20

STRAP-AIRBOX TOP

5433150

$24.27

21

Mount, Console Toe Clip, LH

5245457

Unavailable

21

Mount, Console Toe Clip, RH

5245458

Unavailable

22

Support, Footrest, LH

5246310

$19.83

22

Support, Footrest, RH

5246311

$32.37

23

Footrest, LH

5246914

$62.39

23

Footrest, RH

5247205

Unavailable

24

PLUG, BARBED

7081085

$7.27

25

Kit, Trailing Arm Mount, LH

2202059

$213.00

25

Kit, Trailing Arm Mount, RH

2202598

$124.99

26

Foam, Tool w/Adhesive

5812437

$4.95

27

Guard, Adapter Drive

5246791

$45.59

28

PLUG, HOLE

7080416

$5.65

29

Rivet

7661130

$1.49

30

Bulkhead, Front

5132292

$115.99
