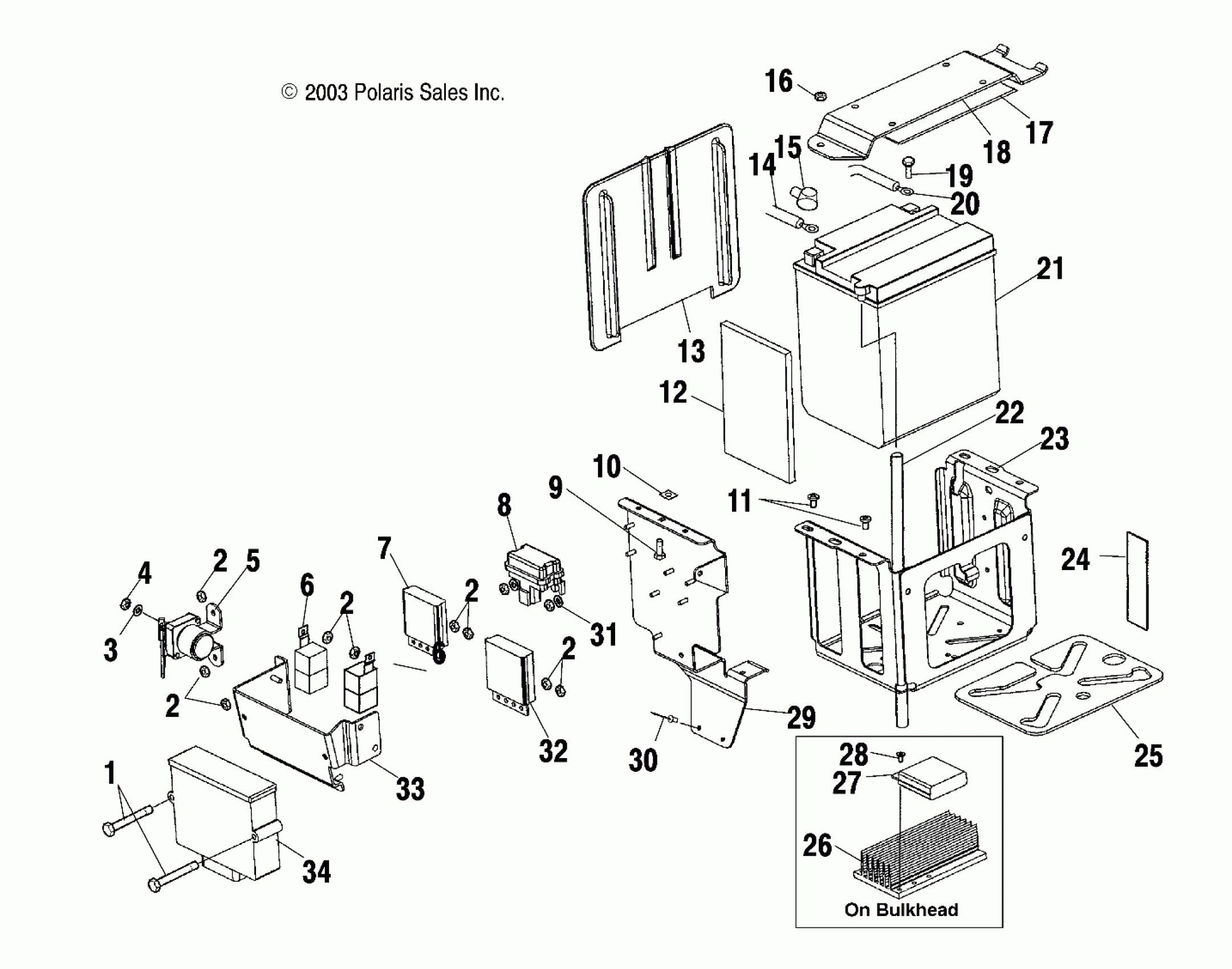

Polaris FRONTIER TOURING - S04NT7DS BATTERY BOX/ELECTRICAL - S04NT7DS (4988498849C05) Diagram

#

Description
Price

1

Screw

7518273

$1.49

2

Nut, Nylok

7541925

$1.49

2

Nut, Nylok

7541925

$1.49

2

Nut, Nylok

7541925

$1.49

2

Nut, Nylok

7541925

$1.49

2

Nut, Nylok

7541925

$1.49

3

Washer, Lock

7552616

Unavailable

4

Nut, RH

7546701

$3.99

5

Asm., Starter Solenoid

2410437

$52.60

6

Relay

4010725

$48.87

7

Switch, Alternator Control

4010722

Unavailable

8

Switch, Roll Over, 4 Stroke

4010637

Unavailable

9

BOLT, CARRIAGE

7512193

$2.39

10

Nut, Speed

7670021

$6.99

11

Screw

7512084

$1.49

12

Foam, Battery Box Spacer

5812419

$3.51

13

Retainer, Battery

5434659

Unavailable

14

Cable, Battery/Solenoid

4010091

Unavailable

15

INSULATOR-CABLE

5410346

$6.39

16

NUT, FLANGED, NYLOK

7542153

$1.59

17

PAD-BATTERY

5810290

$7.27

18

Cover, Battery Box

5245525

Unavailable

19

Kit, Battery Bolt

2202099

$5.99

20

Cable, Starter

4010057

$12.39

21

Battery, Top Mount, 30 AMP

4010630

$147.60

22

Tube, Battery Vent

5432077

$8.08

23

Box, Battery

1013932-067

$70.39

24

Pad, Battery, Side

5811651

Unavailable

25

Pad, Battery

5811623

$2.95

26

Sink, Heat

5133411

Unavailable

27

Rectifier, Regulator

4010538

$242.05

28

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

29

Asm., Bracket, Battery Box w/Studs

1014133

$74.39

30

Rivet

7621432

$1.49

31

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

32

Module, Load Shed, LR63

4010823

$129.51

33

Asm., Bracket, ECU w/Studs

1014134

$35.51

34

ECU 780 Snow

4010888

Unavailable
