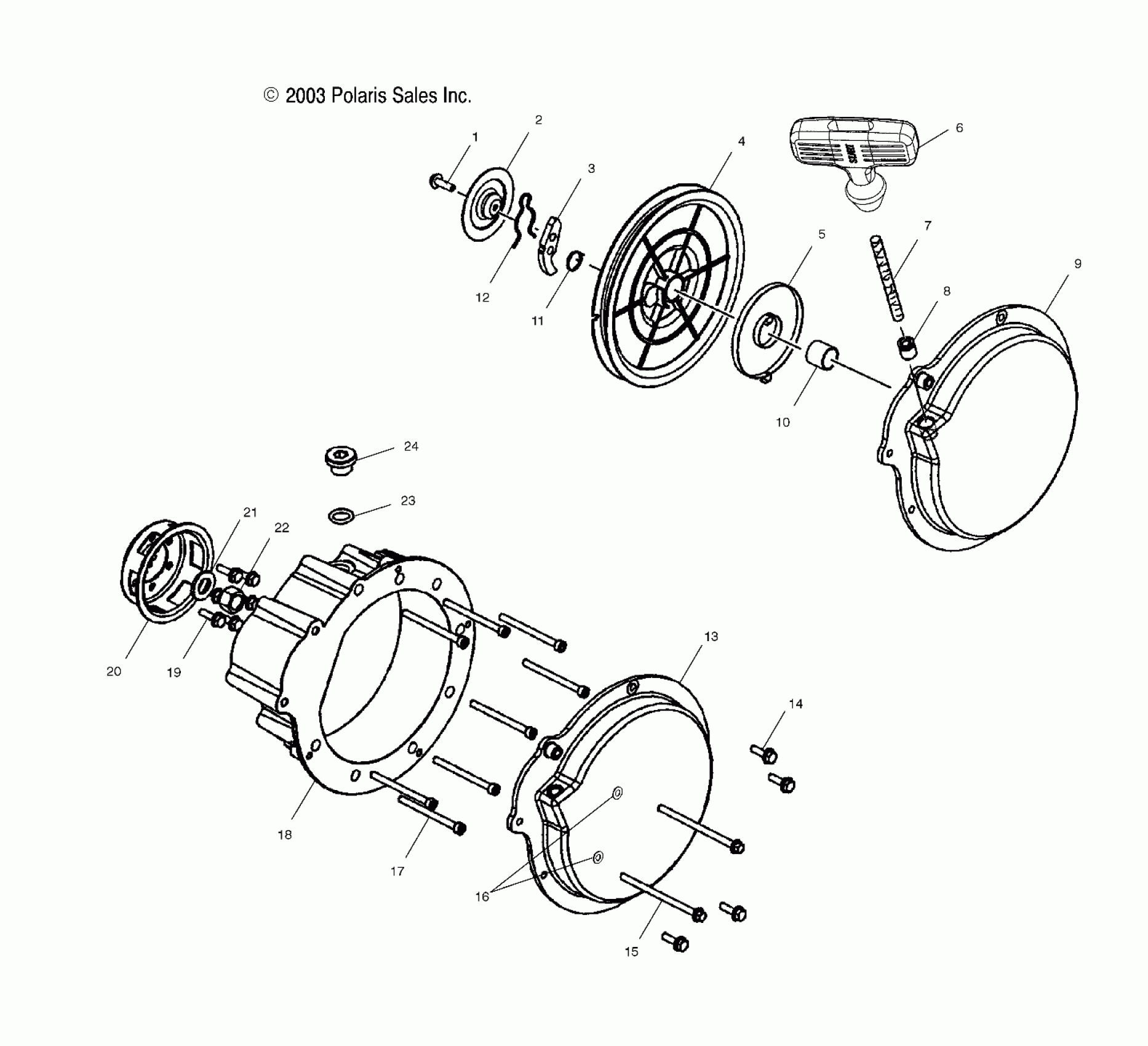

Polaris FRONTIER CLASSIC - S04ND7DS RECOIL ASSEMBLY - S04ND7DS/DSA (4988658865D06) Diagram

Description

Price

SCREW

7517984

$4.79

Plate, Friction

3084744

Unavailable

Ratchet

3083378

$20.22

Reel, Recoil

5434358

$49.21

Spring, Power

3083185

$32.95

Handle, Recoil

5412250

$12.39

Rope, Starter Recoil Housing

3021311

Unavailable

BUSHING,ROPE SLIDE

3040171

$3.48

HOUSING, RECOIL, UPPER

-------

Unavailable

Bushing

3084750

$7.19

Spring, Return

3083463

$4.03

Spring, Friction

3083379

$24.27

Asm., Recoil Housing [Incl. 1-12]

1202271

$177.13

SCREW

7516822

$2.39

Screw

7517306

Unavailable

WASHER, FLAT

7555998

$1.49

SCREW

7517807

$4.79

Asm., Housing Recoil, Lower

1202379

$148.79

SCREW

7516822

$2.39

Pulley, Starting Recoil

3040161

$38.71

WASHER

7555907

$5.59

Nut, Hex

7546909

Unavailable

O-Ring

5411564

$4.03

Plug, Hole, Timing, Nylon

5433820

$20.22
