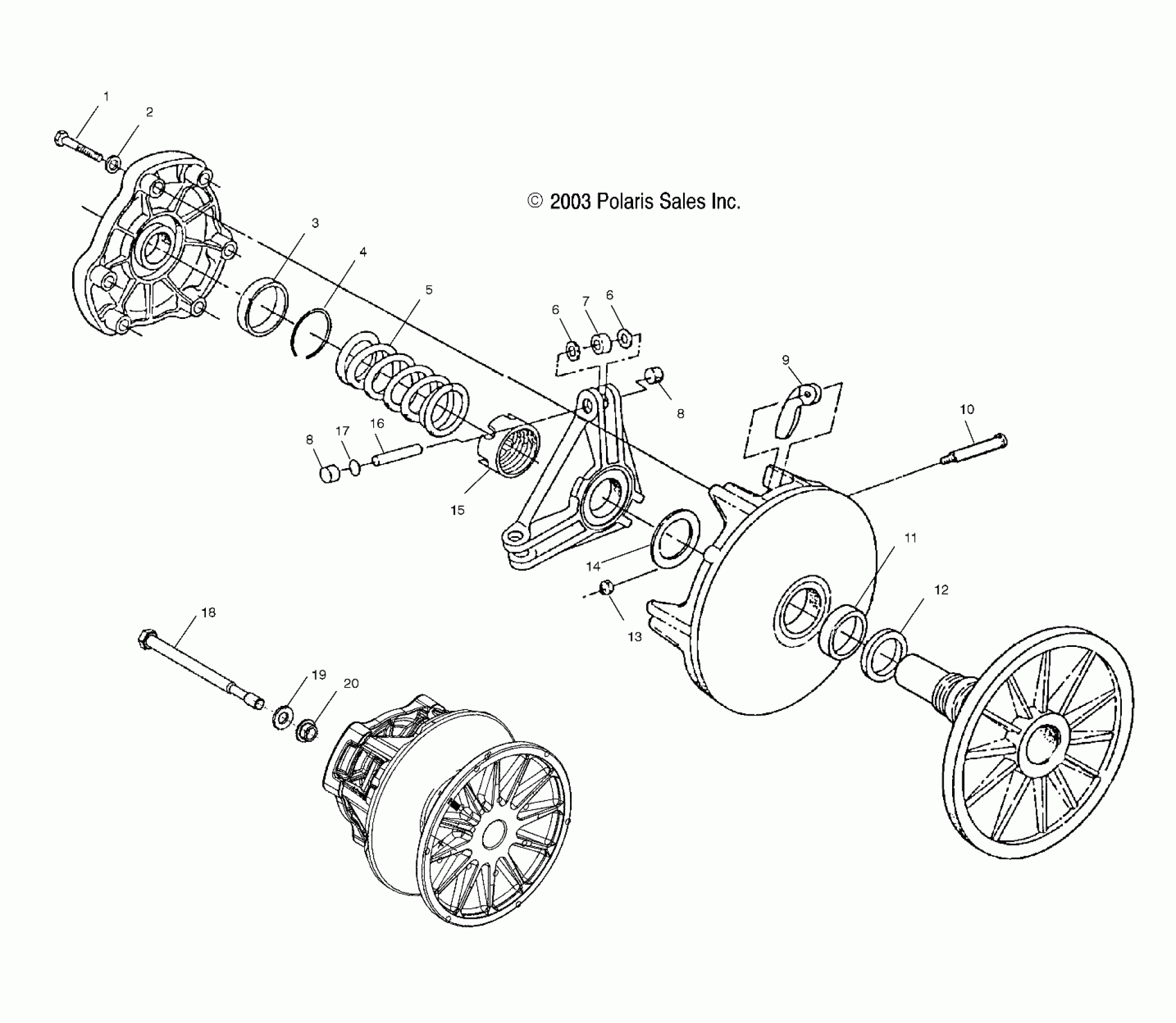

Polaris FRONTIER CLASSIC - S04ND7DS DRIVE CLUTCH - S04ND7DS/DSA (4988658865C05) Diagram

#

Description
Price

-

Asm., Drive Clutch, Basic 102 [Incl. All Less 5,9]

1321810

Unavailable

-

Kit, Wide Roller Spider Rebuild [Incl. 6-8,10,16]

2201169

$169.98

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Yellow

7041102

Unavailable

6

WASHER,MULTILUBE

5430945

$1.59

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

BUTTON, GUIDE

5430445

$6.39

8

BUTTON, GUIDE

5430445

$6.39

9

ASM., WEIGHT/BUSHING, 10-62

1321586

$40.46

10

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

11

Bearing, Sleeve

3576502

$23.99

12

INSERT-MOVEABLE

5010188

$7.99

13

NUT, FLEXLOC

7541906

$3.19

14

SPACER, .050

5210754

Unavailable

14

SPACER, .025

5242981

Unavailable

14

SPACER, .020

5210752

Unavailable

14

SPACER, .032

5210753

Unavailable

15

NUT-JAM

5020425

$23.99

16

PIN, ROLLER

5133079

$6.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

Screw

7517501

Unavailable

19

Washer, Bevel

7556003

$6.39

20

WASHER-CLUTCH RET,M14

5132441

$23.99
