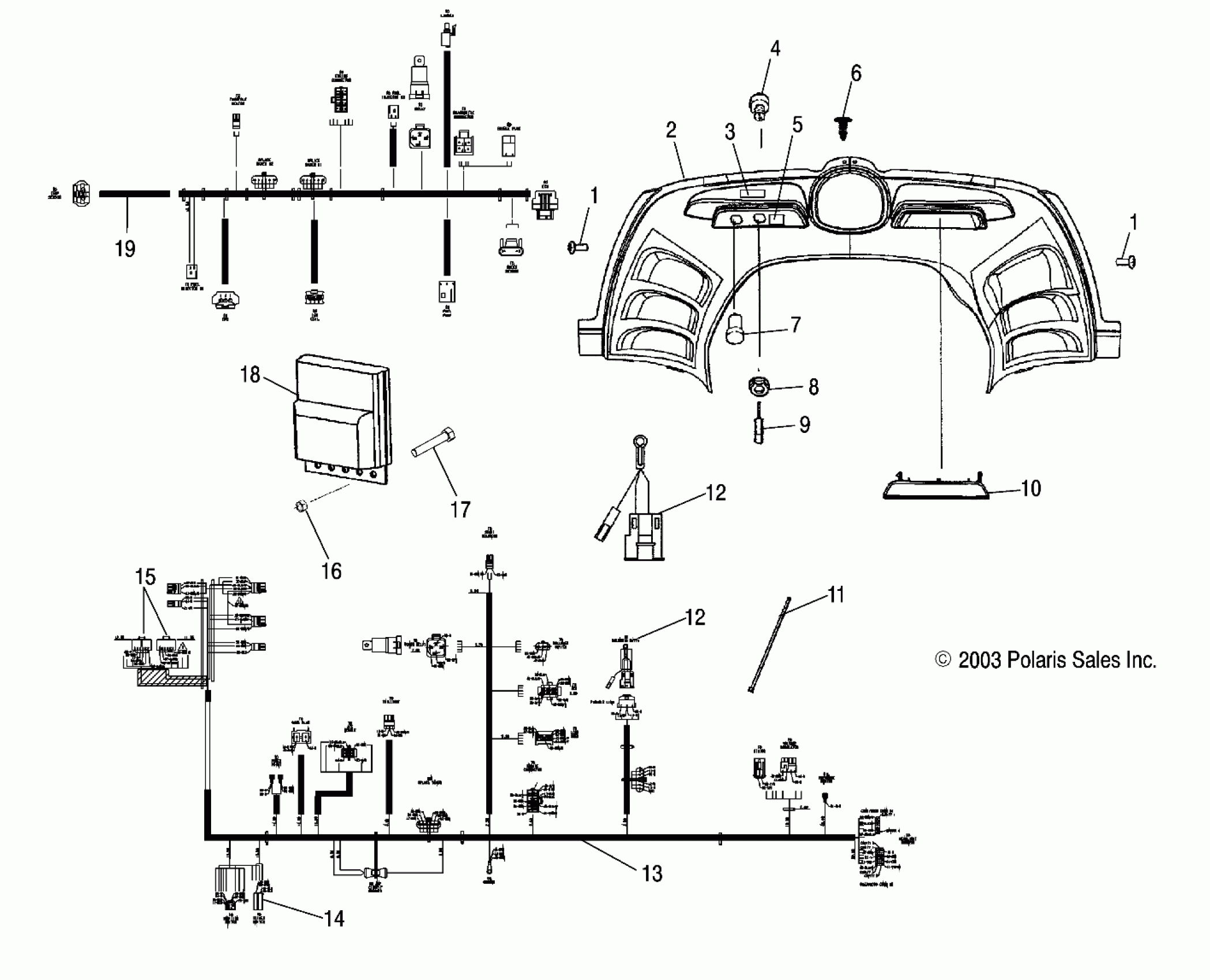

Polaris FRONTIER CLASSIC - S04ND7DS CONSOLE/HARNESS - S04ND7DS/DSA (4988658865A14) Diagram

#

Description
Price

1

Screw

7515199

$1.49

1

Screw

7515199

$1.49

2

Asm., Console w/Foil

2632649

$74.39

2

Foil, Console Side

5812401

Unavailable

2

Foil, Console, Louver

5812402

$1.19

3

Decal, "No Passenger", Warning

7075438

Unavailable

4

Kit, Ignition Switch

2200358

$76.89

5

Decal, Ignition

7170039

Unavailable

6

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

7

Receptacle, Pod Mount

4010638

$24.27

8

Nut, Ignition

7547035

$8.79

9

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

10

Plug, Recoil

5434438

$11.59

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

RELAY, SEALED

4010725

$48.87

12

Harness, Fusible Link

2461076

$17.43

12

RELAY, SEALED

4010725

$48.87

12

Harness, Fusible Link

2461076

$17.43

13

Harness, Main

2461170

$424.99

14

Housing, Pack

4020063

$3.19

15

Housing, Connector

4010193

$8.79

16

Nut, Nylok

7541925

$1.49

17

Screw

7512050

$3.99

18

Control, M-10, ACE

4010597

$304.75

19

Harness, Engine, 4 Stroke

2461169

$394.99
