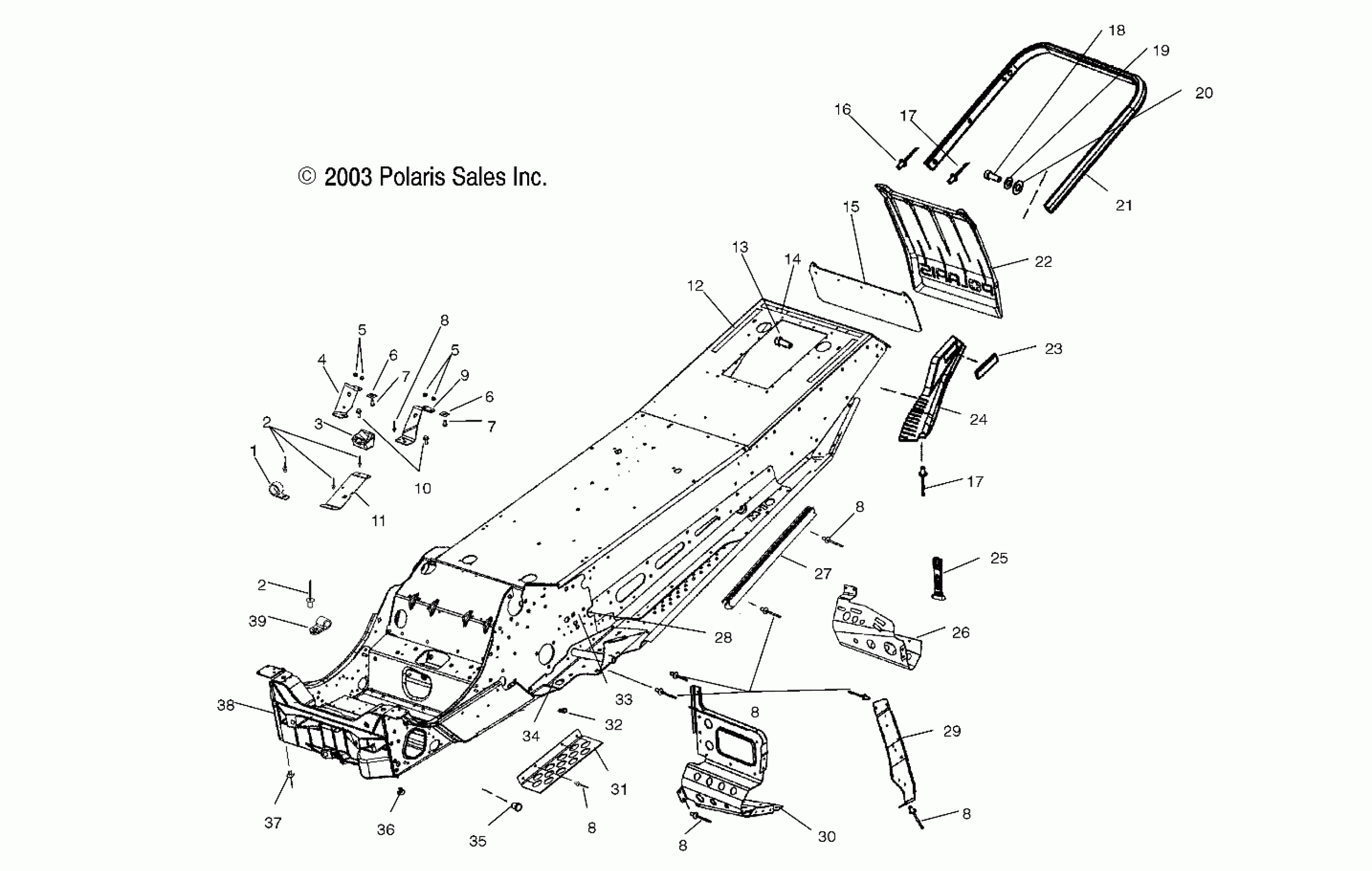

Polaris FRONTIER CLASSIC - S04ND7DS CHASSIS - S04ND7DS/DSA (4988658865A03) Diagram

#

Description
Price

-

Asm., Chassis

1014147-067

$1,259.99

1

CLAMP, HOSE

7080693

$5.59

2

Rivet

7621432

$1.49

2

Rivet

7621432

$1.49

3

Stop, Torque

5412224

$20.63

4

Mount, Engine, Rear, RH

1013543

$42.39

5

Nut, Nylok

7542122

$1.49

5

Nut, Nylok

7542122

$1.49

6

Nut, Speed

7670021

$6.99

6

Nut, Speed

7670021

$6.99

7

BOLT, CARRIAGE

7515203

$3.99

7

BOLT, CARRIAGE

7515203

$3.99

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

9

Mount, Engine, Rear, LH

1013542

$42.39

10

Screw

7517854

$5.59

11

Asm., Bracket, Coil w/Nuts

1013786

$41.59

12

Gasket, Seat Base

5812290

$1.49

13

Screw

7517441

$2.39

14

Gasket, Seat Base

5812360

$1.83

15

Backer, Snow Flap

5812430

Unavailable

16

RIVET

7621418

$1.49

17

RIVET

7621472

$1.49

17

RIVET

7621472

$1.49

18

SCREW

7512232

$1.49

19

WASHER, SPRING LOCK

7552801

$1.59

20

Washer, Flat

7558301

$1.49

21

Asm., Bumper, Rear

2632165-309

Unavailable

22

Flap, Snow, Long, Black w/Chrome

5434847-1106

$139.99

23

ASM., REFLECTOR, RED

2670133

$5.75

24

Asm., Skirt, Snow/Reflector, LH [Incl. 23]

2632443-070

$64.75

24

Asm., Skirt, Snow/Reflector, RH [Incl. 23]

2632444-070

$55.99

25

STRAP-AIRBOX TOP

5433150

$24.27

26

Mount, Toe Clip, Console, LH

5245457-067

Unavailable

26

Mount, Toe Clip, Console, RH

5245458-067

Unavailable

27

Brace, Tunnel Roll, BLK

5245118-067

$22.23

28

Brace, Lower, Tunnel, LH

5244997-067

$19.83

28

Brace, Lower, Tunnel, RH

5244998-067

$19.83

29

Support, Footrest, LH

5246310-067

$19.68

29

Support, Footrest, RH

5246311-067

Unavailable

30

Footrest, LH

5245288-067

Unavailable

30

Footrest, RH

5247205-067

Unavailable

31

Guard, Adapter, Drive

5246811

$45.59

32

PLUG, BARBED

7081085

$7.27

32

Grommet, M-10 ACE

5412276

$3.19

33

Pad, Suspension, Front, LH

5244999-067

Unavailable

33

Pad, Suspension, Front, RH

5245001-067

$24.27

34

Kit, Trailing Arm Mount, LH

2202059

$213.00

34

Kit, Trailing Arm Mount, RH

2202598

$124.99

35

PLUG, HOLE

7080416

$5.65

36

Bushing, Open/Close

7080399

$2.39

37

Rivet

7661639

Unavailable

38

Bulkhead, Front

5132292

$115.99

39

Clamp, Nylon

7080539

$4.79
