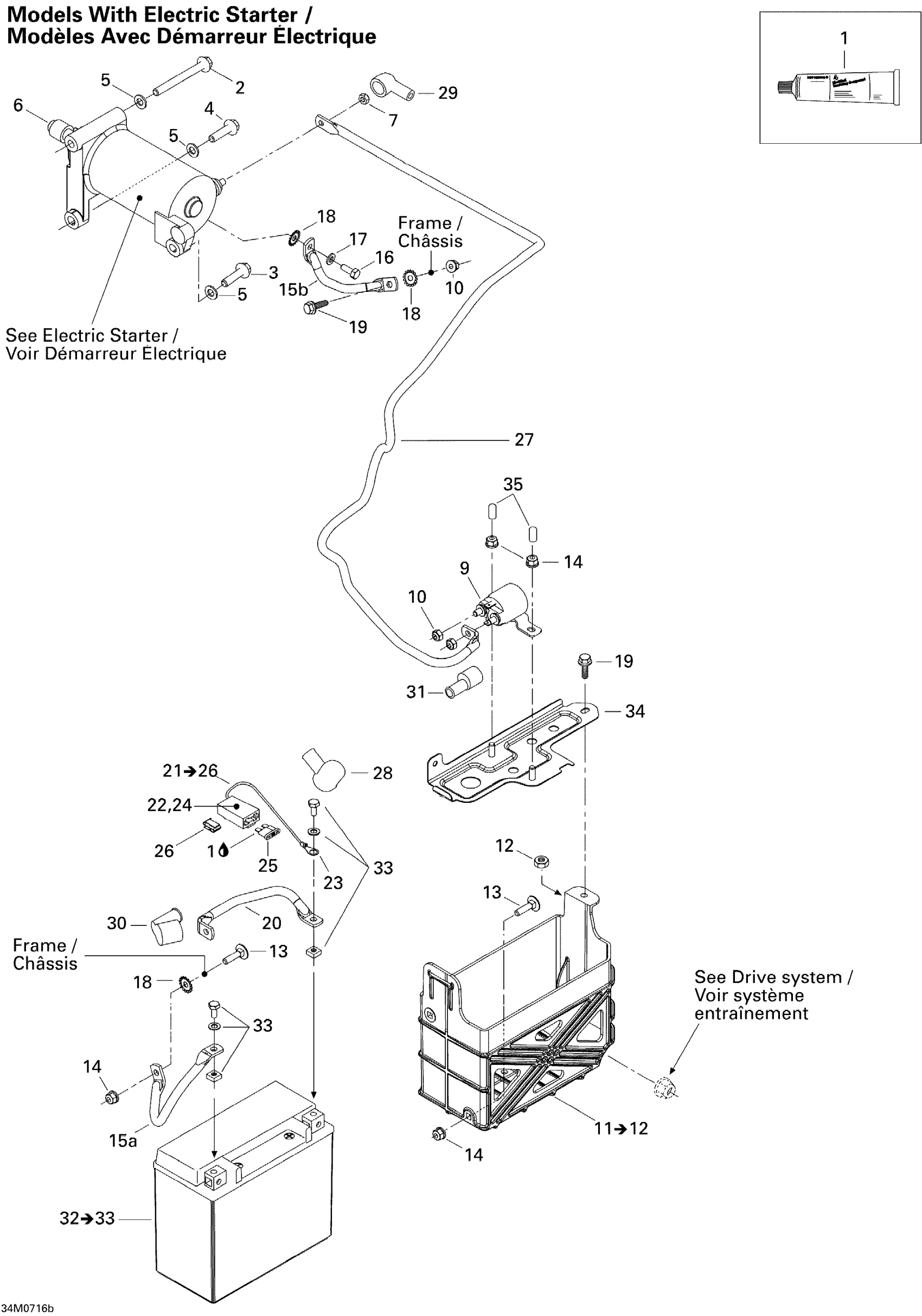

Ski-Doo Freestyle Session 550F, 2007 10- Battery And Starter 550F Diagram

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

$3.38

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

Flat Washer With Teflon 8 mm

250200008

$3.80

Starter | Includes 1 to 5

515176585

$319.49

Elastic Stop Nut M6

232561414

$0.55

Starter Relay

515176011

$62.49

Elastic Stop Nut M6

232561414

$0.55

BATTERY SUPPORT - Call your local BRP dealership | Includes 11 to 12

515176423

Unavailable

Elastic Stop Nut M6

232561414

$0.55

Carriage Bolt M6 X 25

207762544

$1.69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Ground Wire

515175749

$20.99

GROUND WIRE - Call your local BRP dealership

515176172

Unavailable

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

Flat Washer 6 mm

234061410

$1.36

Lock Washer Serrated M6

250200041

$1.15

Hex. Flange Screw M6 X 20

207662044

$2.00

Battery Wire

515175904

$19.99

Battery Fuse Wire | Includes 21 to 22

515175489

$16.86

Female Terminal

409004200

$4.55

Open Barrel

278000992

$2.21

Fuse Holder

409004000

$8.09

Fuse, 30 Amperes

410917200

$3.28

CLIP - Call your local BRP dealership

409014200

Unavailable

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

Protection Cap

570151000

$21.99

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

Protector Cap | XT

515175919

$17.99

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

Cap

515176141

$3.09
