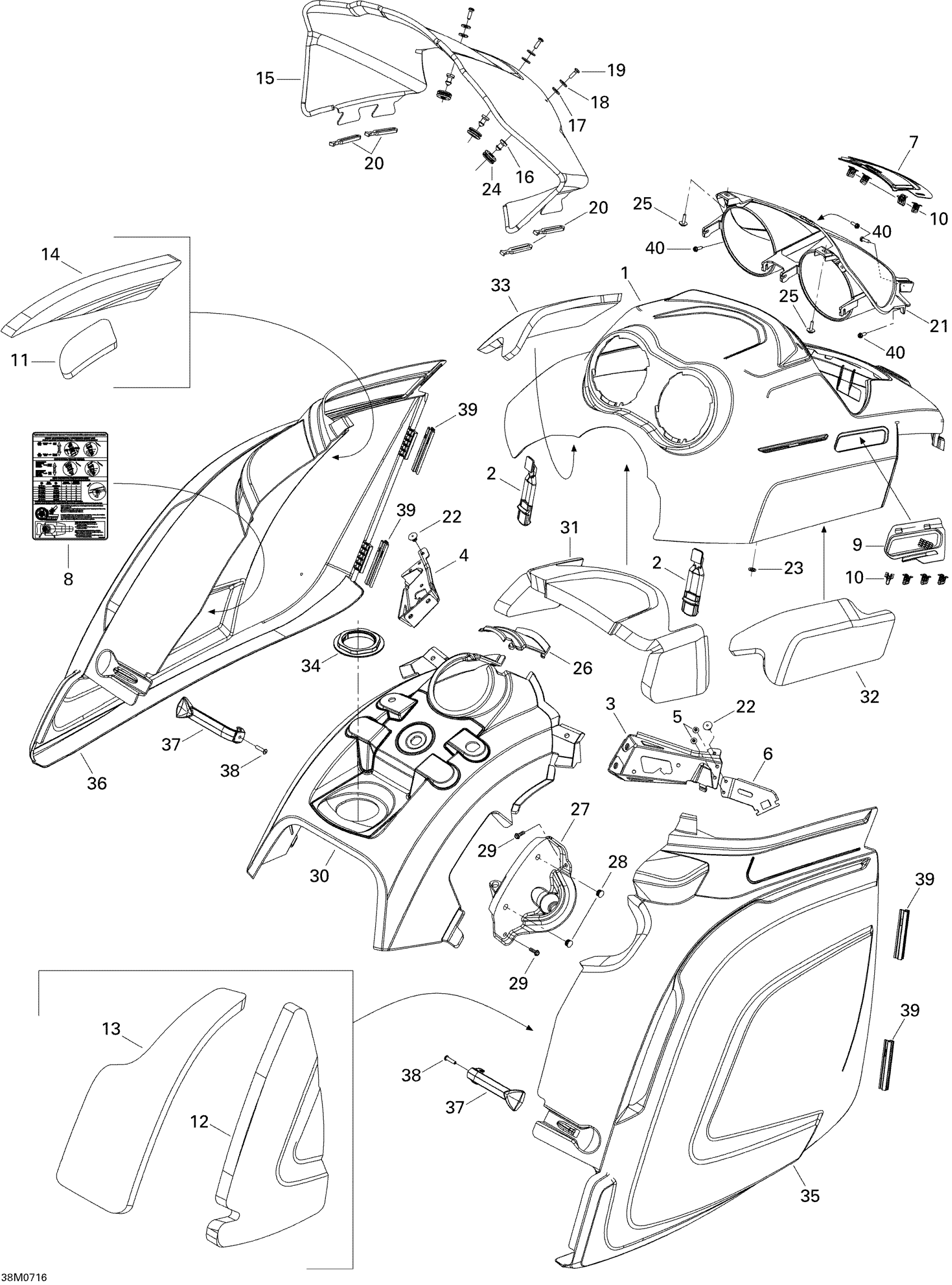

Ski-Doo Freestyle Session 550F, 2007 09- Hood 550F Diagram

HOOD - Call your local BRP dealership | Highlight Grey-Viper Red Model

517303649

Unavailable

Latch

517303518

$12.99

RH Bracket

517303662

Unavailable

LH Bracket

517303663

Unavailable

Pop Rivet 3/16"

390402200

$0.35

BRACKET - Call your local BRP dealership

517303517

Unavailable

Center Hood Grille

517303331

Unavailable

Adjustment Suspension Decal

517303594

Unavailable

RH HOOD GRILL - Call your local BRP dealership

517303586

Unavailable

Edge Clip

517302785

$0.88

Not Available As Spare Parts

XXX

Unavailable

RH PANEL FOAM, FRONT - Call your local BRP dealership

517303456

Unavailable

RH PANEL FOAM, REAR - Call your local BRP dealership

517303457

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Low Windshield

517303442

Unavailable

Knob

517303439

$4.55

Rubber Washer 5 mm

250200024

$2.19

Washer M5

250200025

$0.74

Torx Screw K50 X 16

250000720

$1.69

Windshield Latch

570023800

$4.49

Headlight Moulding

517303583

Unavailable

Pop Rivet 3/16"

293150103

$0.55

Push Nut

732610072

$2.19

Grommet

517302841

$7.89

Screw M4 X 16

250000725

$3.49

CONSOLE CAP - Call your local BRP dealership

517303458

Unavailable

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

Black, Cap

275500241

$3.49

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

CENTER CONSOLE - Call your local BRP dealership

517303349

Unavailable

Hood Foam

517303664

Unavailable

RH Hood Foam

517303486

Unavailable

LH HOOD FOAM - Call your local BRP dealership

517303487

Unavailable

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

RH Panel

517303644

Unavailable

LH PANEL - Call your local BRP dealership

517303540

Unavailable

Panel Latch

517302448

$14.99

Pop Rivet 3/16”

390410100

$0.57

Hinge Lock

517302823

$13.99

Hex. Tapping Screw #8 X 5/8"

250000068

$1.90
