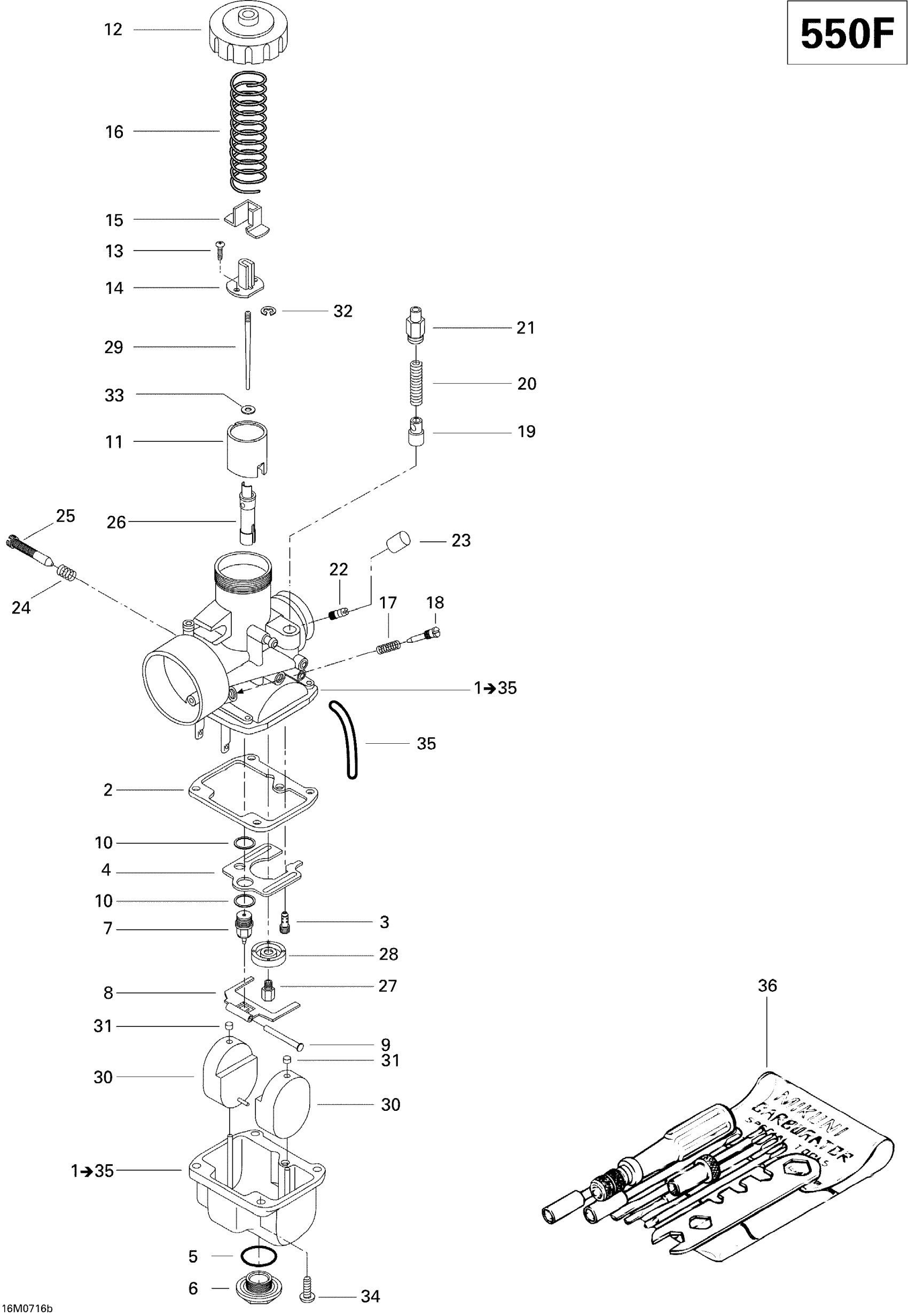

Ski-Doo Freestyle Session 550F, 2007 02- Carburetor 550F Diagram

#

Description
Price

1

CARBURETOR VM30-214 - Call your local BRP dealership

403138786

Unavailable

2

Gasket | Includes 1900a to 1900am

404104200

$6.38

3

Pilot Jet 45

404109400

$5.21

4

BAFFLE - Call your local BRP dealership

404109600

Unavailable

5

O-Ring

404107300

$9.06

6

Drain Plug Screw

404107400

$22.99

7

Needle Valve 1.2

404147500

$42.49

8

Float Lever

404107600

$22.99

9

Lever Pin

404103300

$6.27

10

Seat Washer

404101600

$3.29

11

Piston Valve 2.5

404128400

$127.49

12

Cover

404103700

$31.99

13

Screw With Washer

404121300

$4.14

14

Packing

404161987

$15.35

15

Cover

404122100

$19.49

16

Spring

404154800

$23.99

17

Spring

404101800

$4.25

18

Air Screw

404102300

$14.35

19

Plunger Ass'y | MAG Side

404161986

$19.49

20

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

21

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

22

Nipple

404153400

$12.16

23

Cap

404156600

$17.08

24

Spring

404101700

$4.14

25

Idle Speed Screw

404109700

$19.49

26

Needle Jet 159-P-7

404162072

Unavailable

27

Main Jet 190

404119000

$5.21

28

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

29

Needle, J8-6BFY46

404162113

$31.99

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Cap

404105800

$6.38

32

E-Ring

404152400

$7.27

33

Packing

404117000

$3.29

34

Screw With Lock Washer

404102000

$3.18

35

Hose

404161991

Unavailable

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
