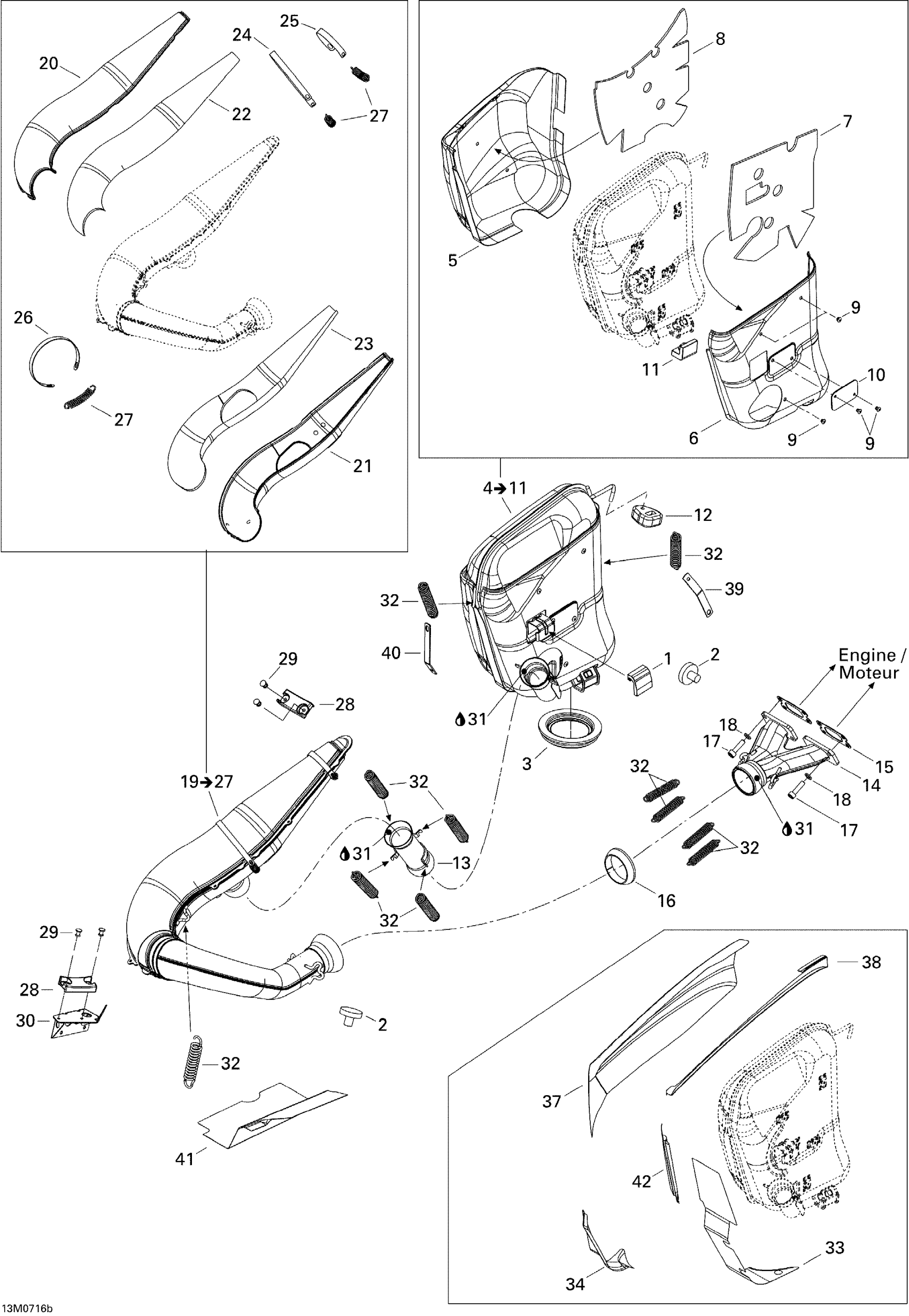

Ski-Doo Freestyle Session 550F, 2007 01- Exhaust System 550F Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

Unavailable

2

Rubber Bumper

514053654

$50.99

3

EXHAUST GROMMET - Call your local BRP dealership

514054240

Unavailable

4

Muffler Ass'y | Includes 4 to 11

514054059

Unavailable

5

RH DEFLECTOR - Call your local BRP dealership

514054100

Unavailable

6

HEAT DEFLECTOR LH - Call your local BRP dealership

514053843

Unavailable

7

INSULATING WOOL LH - Call your local BRP dealership

514053844

Unavailable

8

INSULATING WOOL RH - Call your local BRP dealership

514053947

Unavailable

9

Pop Rivet 3/16”

390910000

$0.57

10

Reinforcement

514053429

Unavailable

11

LOWER STOPPER - Call your local BRP dealership

514054223

Unavailable

12

RUBBER BUMPER - Call your local BRP dealership

514052704

Unavailable

13

EXHAUST ELBOW - Call your local BRP dealership

514054249

Unavailable

14

Exhaust Manifold

420673065

$339.99

15

Gasket 1.0 mm

420831849

$8.85

16

Exhaust Gasket

514053644

$25.99

17

Socket Head Screw M8 X 30

205083044

$1.15

18

Washer

514053837

$4.44

19

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 19 to 27

514054063

Unavailable

20

Rear Upper Half-enveloppe

514054208

$53.99

21

REAR LOWER HALF-ENVELOPPE - Call your local BRP dealership

514054209

Unavailable

22

Upper Insulating Wool

514054244

$16.49

23

Lower Insulating Wool

514054243

$16.49

24

Retaining Strap

514053502

$11.47

25

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

26

Retaining Strap

514053498

$11.47

27

Spring

514053643

$6.35

28

BUMPER - Call your local BRP dealership

514053352

Unavailable

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

SUPPORT - Call your local BRP dealership

514054131

Unavailable

31

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

32

Spring

415107100

$6.35

33

REFLECTIVE SHEET - Call your local BRP dealership

514053560

Unavailable

34

Reflective Sheet

514053622

Unavailable

37

REFLECTIVE SHEET - Call your local BRP dealership

514054291

Unavailable

38

REFLECTIVE SHEET - Call your local BRP dealership

514054292

Unavailable

39

SPRING BRACKET - Call your local BRP dealership

514053725

Unavailable

40

Spring Bracket

514053393

$14.16

41

REFLECTIVE SHEET - Call your local BRP dealership

514054133

Unavailable

42

REFLECTIVE SHEET - Call your local BRP dealership

514054012

Unavailable
