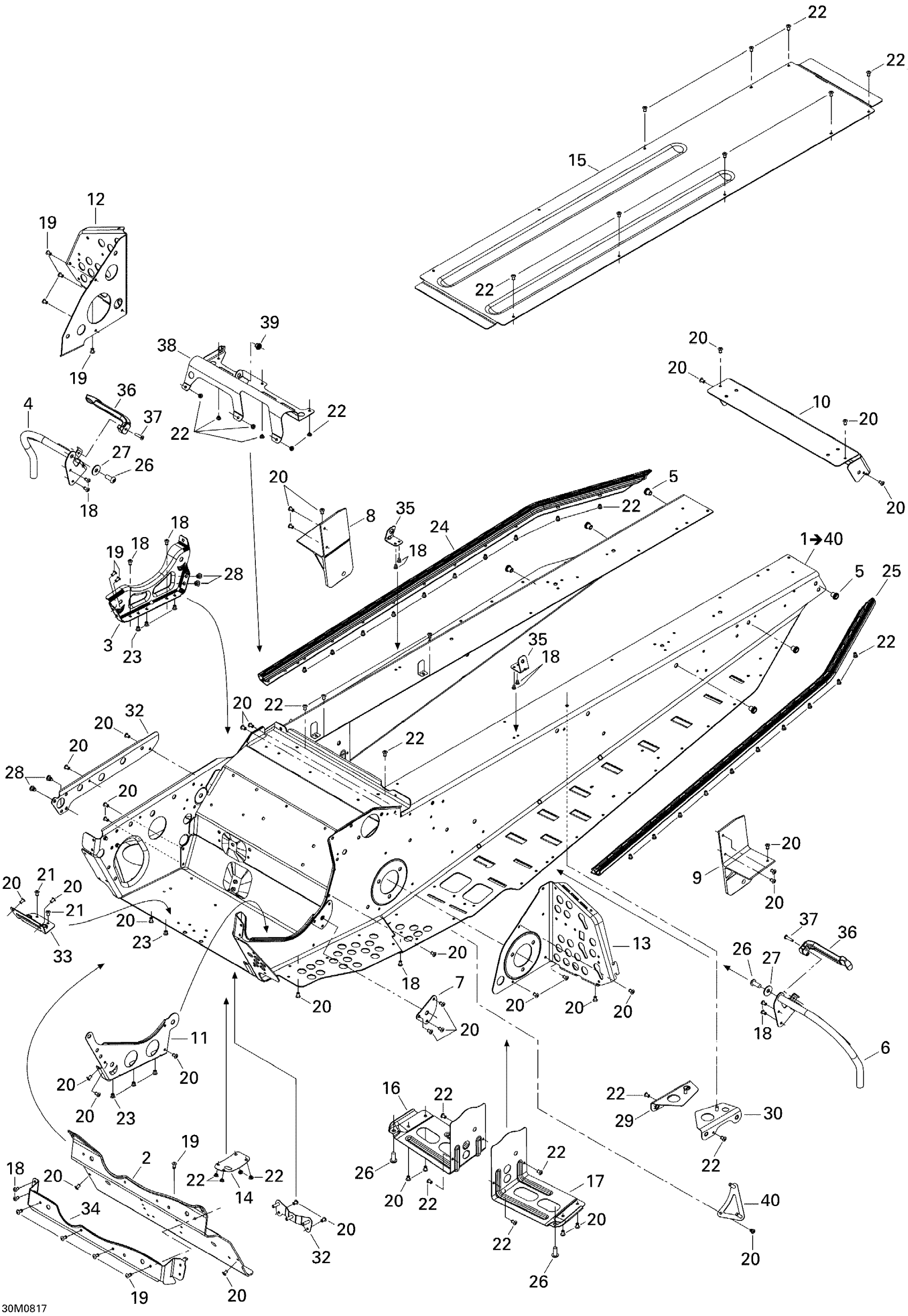

Ski-Doo Freestyle SESSION 300F, 2008 09- Frame Diagram

#

Description
Price

1

FRAME 121'' - Call your local BRP dealership | Includes 1 to 41

415129310

Unavailable

2

FRONT PAN - Call your local BRP dealership

518325042

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

Insert

293450275

$12.99

6

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

7

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

8

RH Slide Bracket

518325340

Unavailable

9

LH Slide Bracket

518325341

Unavailable

10

Rear Cap

518324279

Unavailable

11

INNER REINFORCEMENT - Call your local BRP dealership

518323995

Unavailable

12

RH Footrest Reinforcement

518323805

Unavailable

13

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

14

PLATE - Call your local BRP dealership

518324169

Unavailable

15

Central Plate

518323996

Unavailable

16

RH Footrest Reinforcement, Black

518325334

Unavailable

17

LH FOOTREST REINFORCEMENT, BLACK - Call your local BRP dealership

518325335

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402300

$0.75

22

Pop Rivet 3/16"

390402400

$0.35

23

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

24

RH ROLLER - Call your local BRP dealership

518324957

Unavailable

25

LH ROLLER - Call your local BRP dealership

518324958

Unavailable

26

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

27

Flat Washer 8 mm

234082410

$1.47

28

Hemlock Rivet, 6.5 mm

293150096

$3.27

29

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

30

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

31

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable

32

Holder

518324599

Unavailable

33

HOLDER PLATE - Call your local BRP dealership

518324207

Unavailable

34

FRONTAL REINFORCEMENT - Call your local BRP dealership

518324220

Unavailable

35

TRUNK BRACKET - Call your local BRP dealership

518324688

Unavailable

36

Panel Latch

517302448

$14.99

37

Pop Rivet 3/16”

390410100

$0.57

38

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

39

Threaded Insert M6 X 1.0

250100242

Unavailable

40

TRUNK BRACKET, BLACK - Call your local BRP dealership

518324312

Unavailable
