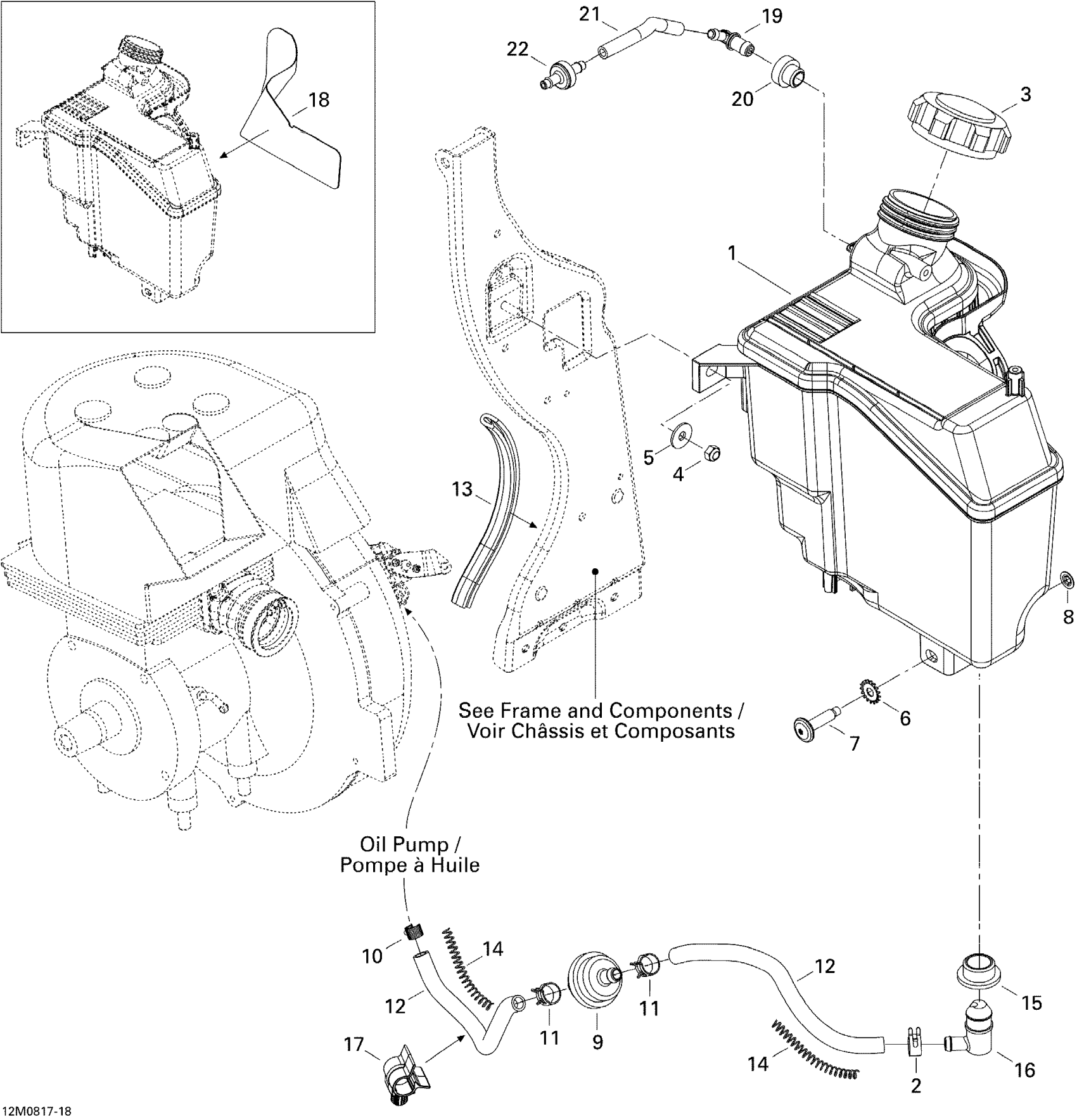

Ski-Doo Freestyle SESSION 300F, 2008 Oil System Diagram

#

Description
Price

1

INJECTION OIL TANK - Call your local BRP dealership

519000073

Unavailable

2

Oetiker Clamp

293650042

$1.40

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Elastic Stop Nut M6

232561414

$1.55

5

Flat Washer

250200082

$0.35

6

Lock Washer Serrated M6

250200041

$0.92

7

Torx Screw M6 X 25 | XT Models

250000728

$3.61

8

Push Nut

732610072

$1.72

9

Filter

414536500

$3.25

10

Spring Clamp

414420700

$0.68

11

Spring Clamp

414415200

$0.83

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

13

Was 271000110 Protection Trim

219704353

$15.03

14

SPRING - Call your local BRP dealership

519000125

Unavailable

15

Insulating Ring

570023000

$4.62

16

Elbow Fitting 90°

519000124

Unavailable

17

Hose Retainer

275500528

Unavailable

18

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

19

Male Connector

414580700

$3.38

20

Grommet

513032908

$8.74

21

Polyurethane Hose 10000Mm Long

219704410

$46.12

22

Check Valve

275500398

$8.57
