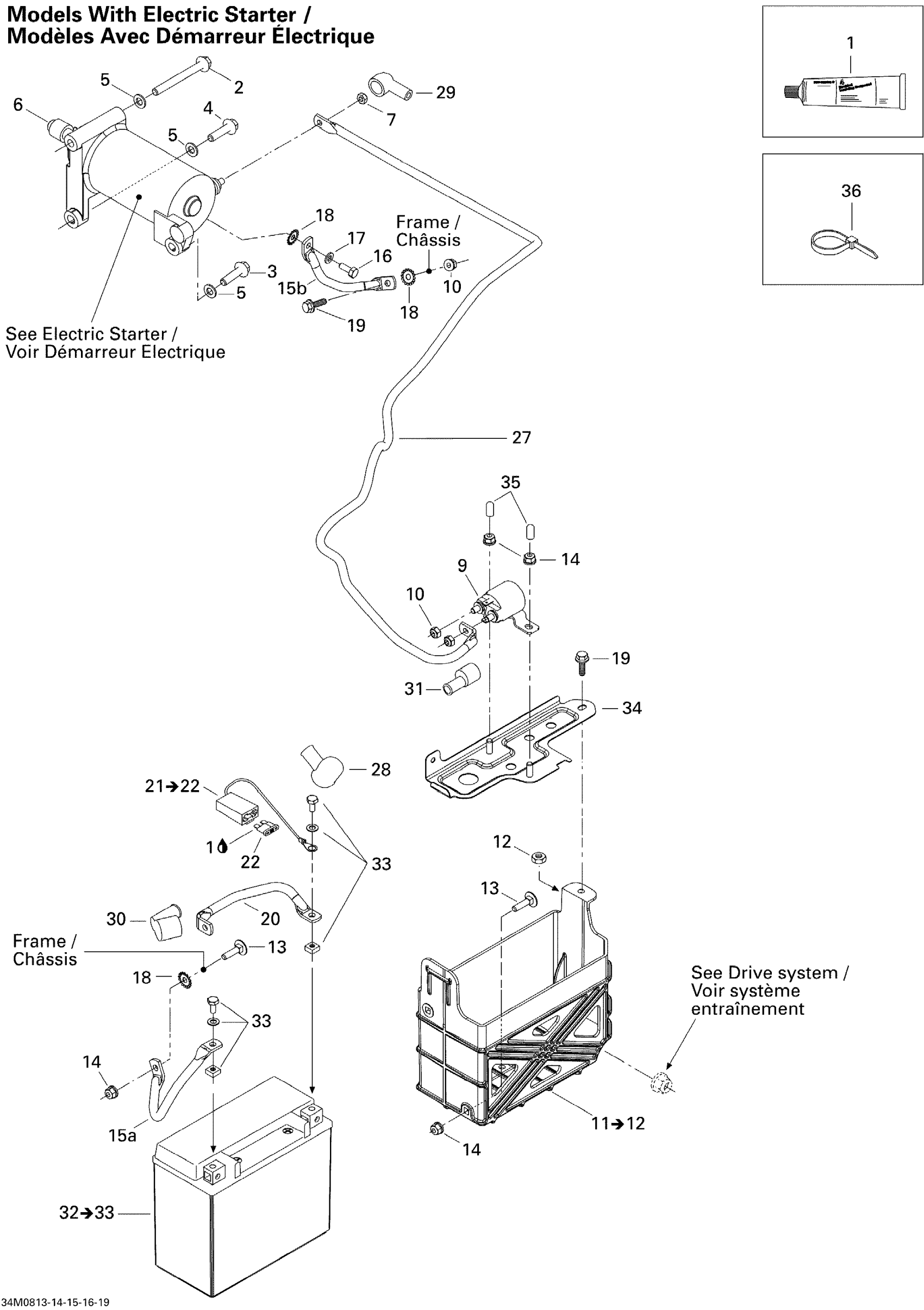

Ski-Doo Freestyle PARK 550F, 2008 10- Battery And Starter Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

$3.38

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

5

Flat Washer With Teflon 8 mm

250200008

$3.80

6

Starter | Includes 1 to 5

515176585

$319.49

7

Elastic Stop Nut M6

232561414

$0.55

9

Starter Relay

515176011

$62.49

10

Elastic Stop Nut M6

232561414

$0.55

17

Flat Washer 6 mm

234061410

$1.36

11

BATTERY SUPPORT - Call your local BRP dealership | Includes 11 to 12

515176423

Unavailable

12

Elastic Stop Nut M6

232561414

$0.55

13

Carriage Bolt M6 X 25

207762544

$1.69

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15a

Ground Wire

515175749

$20.99

15b

GROUND WIRE - Call your local BRP dealership

515176172

Unavailable

16

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

18

Lock Washer Serrated M6

250200041

$1.15

19

Hex. Flange Screw M6 X 20

207662044

$2.00

20

Battery Wire

515175904

$19.99

21

Battery Fuse Wire | Includes 21 to 22

515175489

$16.86

22

Fuse, 30 Amperes

410917200

$3.28

27

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

28

Protection Cap

570151000

$21.99

29

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

30

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

31

Protector Cap | XT

515175919

$17.99

32

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

33

Battery Bolt Kit

250000282

$7.29

34

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

35

Cap

515176141

$3.09

36

Tie-Rap 180 mm

414115200

$0.11

36

Tie Wrap 142 mm

293750002

$1.25

36

Tie Wrap 368 mm

293750008

$1.04

36

Tie-Rap 173 mm

293750009

$1.04
