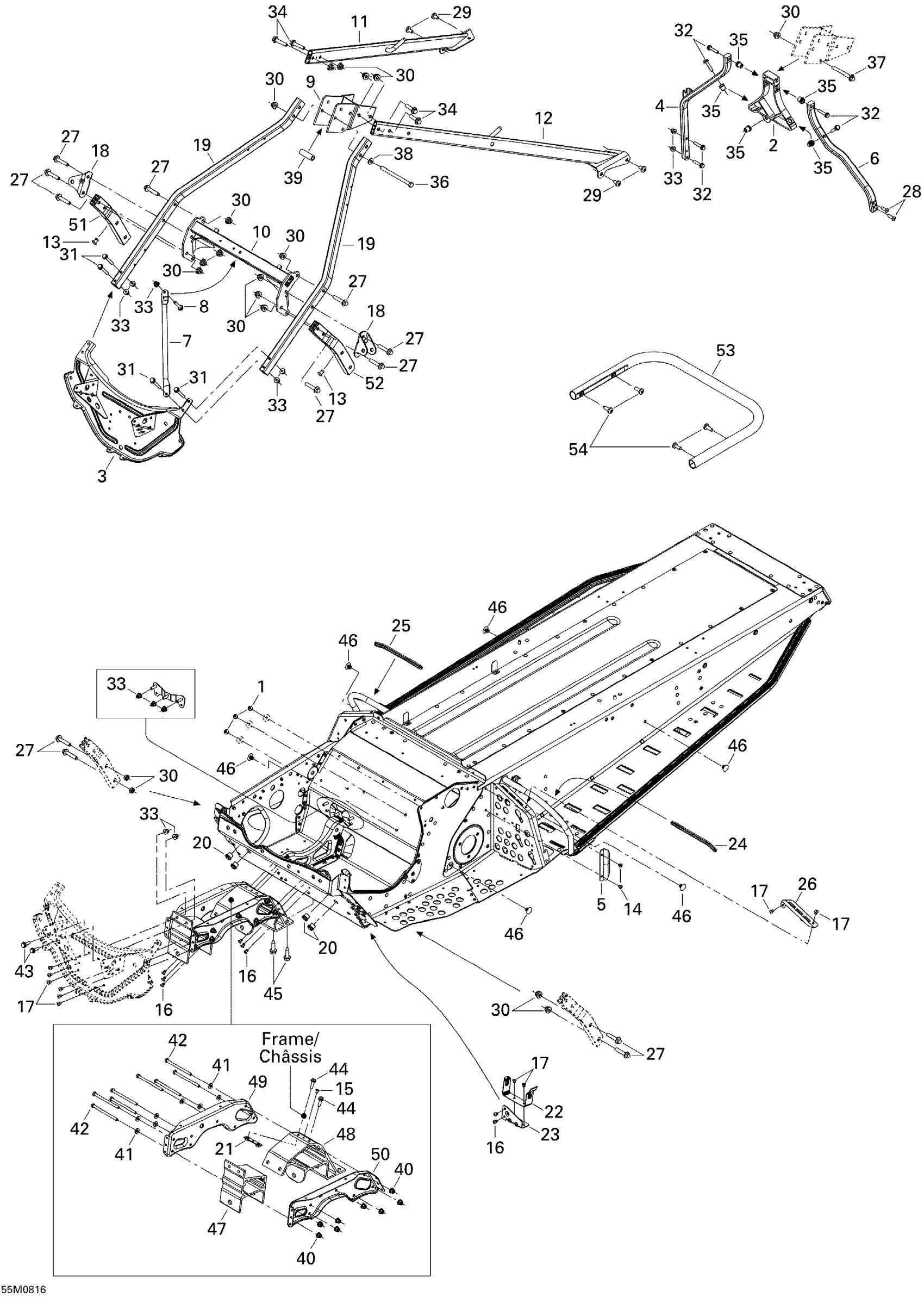

Ski-Doo Freestyle PARK 550F, 2008 09- Frame and Components Diagram

#

Description
Price

1

Hemlock Rivet, 6.5 mm

293150096

$3.27

2

CENTER STIFFENER - Call your local BRP dealership

518324377

Unavailable

3

FRONT PLATE - Call your local BRP dealership

518324216

Unavailable

4

RH HANDLE SUPPORT - Call your local BRP dealership

518324397

Unavailable

5

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

6

LH HANDLE SUPPORT - Call your local BRP dealership

518324376

Unavailable

7

BRACE - Call your local BRP dealership

518324988

Unavailable

8

Hex. Flange Screw M6 X 35

207663544

$0.90

9

BRACKET BLOCK - Call your local BRP dealership

518324196

Unavailable

10

Upper Cross Member

518325150

Unavailable

11

RH MEMBER - Call your local BRP dealership

518324480

Unavailable

12

LH Member

518325193

Unavailable

13

Hemlock Rivet, 6.5 mm

293150119

$4.29

14

Pop Rivet 3/16"

390402200

$0.35

15

Pop Rivet 3/16"

390402300

$0.75

16

Avex Rivet

390909100

$0.30

17

Avex Rivet

390909200

$0.30

18

SHOCK BRACKET - Call your local BRP dealership

518324202

Unavailable

19

UPPER TUBE - Call your local BRP dealership

518325074

Unavailable

20

Insert

293450166

$4.29

21

HOLDER PLATE - Call your local BRP dealership

518324204

Unavailable

22

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

23

GUARD BELT SUPPORT - Call your local BRP dealership

518324923

Unavailable

24

Was 271000110 Protection Trim

219704353

$15.99

25

Was 271000110 Protection Trim

219704353

$15.99

26

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

27

Hex. Flange Screw M8 X 40

207684044

$1.48

28

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

29

Pan Head Torx Screw M8 X 12

250000887

$1.90

30

Hex. Flange Elastic Nut M8

233281414

$1.47

31

Hex. Flange Screw M6 X 45

207664544

$1.46

32

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Hex. Flange Screw M8 X 35

207683544

$1.69

35

Insert

293450275

$12.99

36

HEX. SCREW M8 X 110 - Call your local BRP dealership

230081044

Unavailable

37

Hex. Flange Screw M8 X 70

207687044

$7.41

38

Washer

503189157

$3.28

39

Housing Bushing

506150500

$7.99

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

Flat Washer

250200039

$0.74

42

Hex. Screw M6 X 90

207069044

$4.87

43

Hex. Flange Screw M6 X 20

207662044

$2.00

44

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

45

Cone Screw, M8 X 30

250000257

$1.89

46

Panel Fastener

518321954

$7.69

47

FRONT ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324019

Unavailable

48

REAR ATTACHMENT, FRONT SUSPENSION - Call your local BRP dealership

518324020

Unavailable

49

RH LATERAL REINFORCEMENT - Call your local BRP dealership

518324014

Unavailable

50

LH LATERAL REINFORCEMENT - Call your local BRP dealership

518324017

Unavailable

51

RH VERTICAL TUBE - Call your local BRP dealership

518324214

Unavailable

52

LH Vertical Tube

518324215

Unavailable

53

Rear Bumper

518323992

Unavailable

54

Hex. Screw M8 X 20

236282084

$1.48
