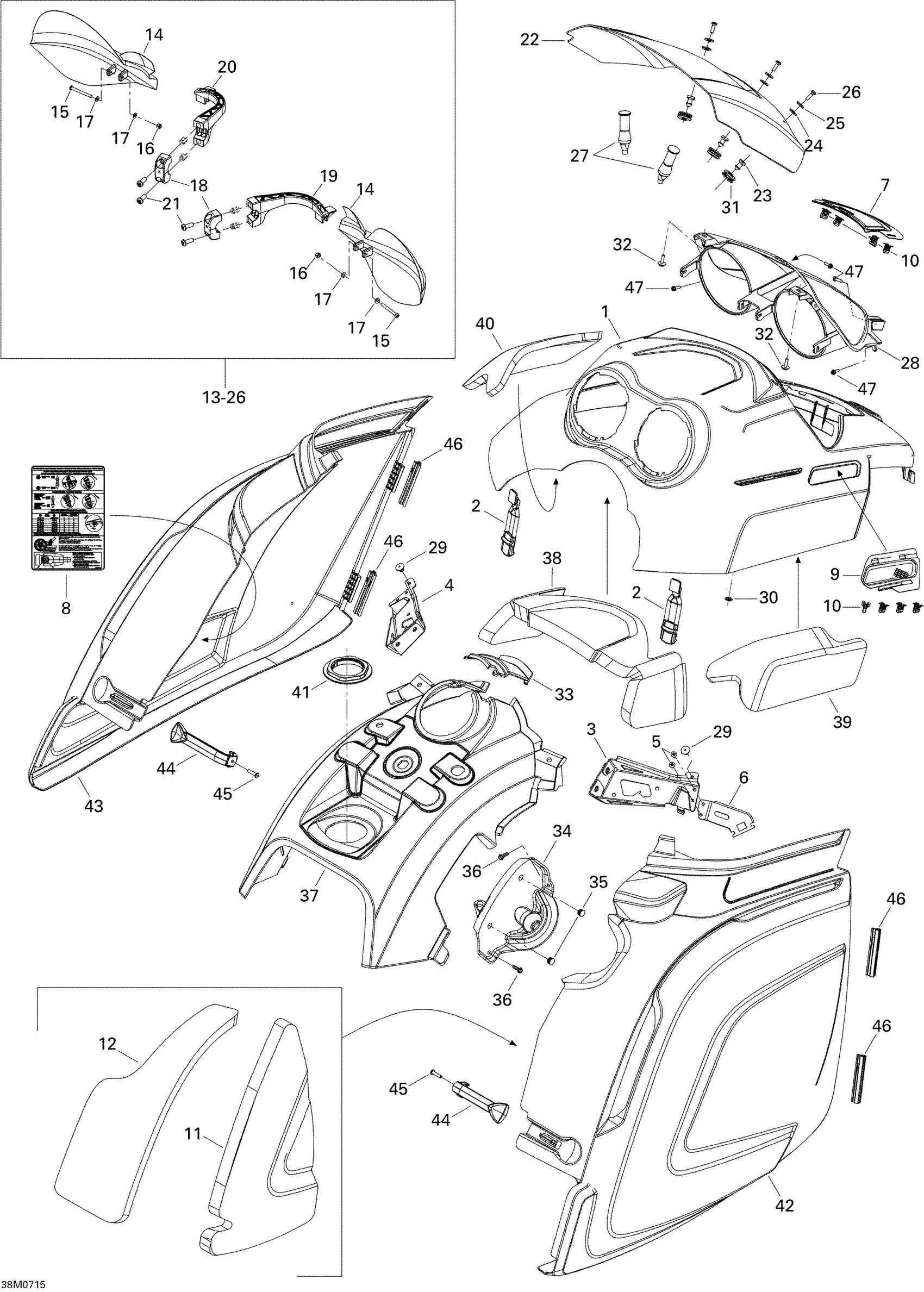

Ski-Doo Freestyle Park 550F, 2007 09- Hood Diagram

#

Description
Price

1

HOOD - Call your local BRP dealership

517303650

Unavailable

2

Latch

517303518

$12.99

3

RH Bracket

517303662

Unavailable

4

LH Bracket

517303663

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

BRACKET - Call your local BRP dealership

517303517

Unavailable

7

Center Hood Grille

517303331

Unavailable

8

Adjustment Suspension Decal

517303594

Unavailable

9

RH HOOD GRILL - Call your local BRP dealership

517303586

Unavailable

10

Edge Clip

517302785

$0.88

11

RH PANEL FOAM, FRONT - Call your local BRP dealership

517303456

Unavailable

12

RH PANEL FOAM, REAR - Call your local BRP dealership

517303457

Unavailable

13

DEFLECTOR PACK - Call your local BRP dealership | Includes 13 to 26

517303728

Unavailable

14

DEFLECTOR - Call your local BRP dealership

415128767

Unavailable

15

Socket Head Screw M4 X 40 | X

205444086

$1.69

16

Elastic Stop Nut M4

232541484

$0.74

17

Flat Washer 4 mm

234041480

$0.74

18

U-Clamp | XT

517303264

$11.99

19

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

20

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

21

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

22

Windshield

517303660

Unavailable

23

Knob

517303439

$4.55

24

Rubber Washer 5 mm

250200024

$2.19

25

Washer M5

250200025

$0.74

26

Torx Screw K50 X 16

250000720

$1.69

27

WINDSHIELD SUPPORT - Call your local BRP dealership

517303197

Unavailable

28

Moulding

517303692

Unavailable

29

Pop Rivet 3/16"

293150103

$0.55

30

Push Nut

732610072

$2.19

31

Grommet

517302841

$7.89

32

Screw M4 X 16

250000725

$3.49

33

CONSOLE CAP - Call your local BRP dealership

517303458

Unavailable

34

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

35

Black, Cap

275500241

$3.49

36

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

37

CENTER CONSOLE - Call your local BRP dealership

517303349

Unavailable

38

Hood Foam

517303664

Unavailable

39

RH Hood Foam

517303486

Unavailable

40

LH HOOD FOAM - Call your local BRP dealership

517303487

Unavailable

41

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

42

RH Panel

517303644

Unavailable

43

LH PANEL - Call your local BRP dealership

517303540

Unavailable

44

Panel Latch

517302448

$14.99

45

Pop Rivet 3/16”

390410100

$0.57

46

Hinge Lock

517302823

$13.99

47

Hex. Tapping Screw #8 X 5/8"

250000068

$1.90
