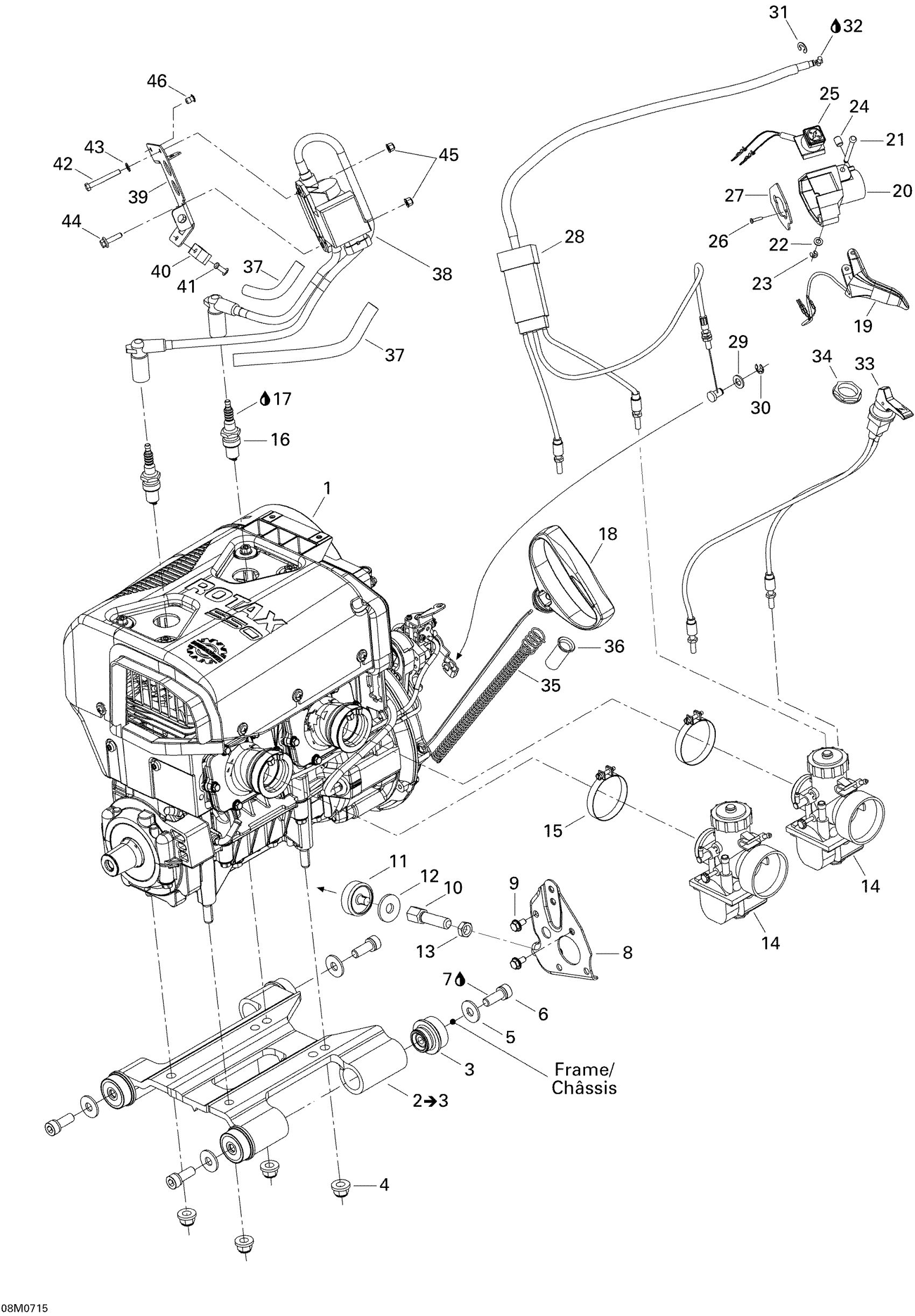

Ski-Doo Freestyle Park 550F, 2007 01- Engine And Engine Support Diagram

#

Description
Price

1

Engine 552

400509764

Unavailable

2

ENGINE SUPPORT - Call your local BRP dealership | Includes 2 to 3

512060034

Unavailable

3

Rubber Mount

512059691

$47.99

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Flat Washer M10 | 4X4

250200014

$1.49

6

TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership

235202544

Unavailable

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

8

Support Plate

512059910

Unavailable

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

10

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

11

STOPPER - Call your local BRP dealership

512059610

Unavailable

12

WASHER - Call your local BRP dealership

512059057

Unavailable

13

Nut Hexagonal RH.

232026414

$1.48

14

CARBURETOR VM30-214 - Call your local BRP dealership

403138786

Unavailable

15

Gemi Clamp | Not Shown

512059834

$11.60

16

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Starter Grip

572084400

$14.83

19

Handle Ass'y | Includes 3820 to 3820a

512061251

$95.99

20

Throttle Housing

512060603

$12.49

21

Lever Pin

414438700

$11.64

22

Flat Washer M5, Stainless

234051600

$0.77

23

Circlip

293370050

$0.46

24

Socket Set Screw M8 X 10

414440800

$4.12

25

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

26

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

27

Plate

512060390

$10.33

28

THROTTLE CABLE - Call your local BRP dealership

512060195

Unavailable

29

Flat Washer 8 mm, Nylon

234081100

$1.39

30

Circlip

414753500

$0.71

31

Circlip

414274500

$0.90

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

CHOKE CABLE - Call your local BRP dealership

512059914

$82.99

34

Plastic Nut

512060671

$1.01

35

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

36

TUBE - Call your local BRP dealership

512059536

Unavailable

37

Was 409901700 Tubing (9 mm)

219704399

$84.99

38

Calibrated Module | Includes 46 to 50

512060157

$479.99

39

MODULE SUPPORT - Call your local BRP dealership

512060160

Unavailable

40

CLAMP - Call your local BRP dealership

420860945

Unavailable

41

Pop Rivet 3/16”

390407200

$0.70

42

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

43

Flat Washer M5

234051410

$0.53

44

Hex.Flange Screw M5 X 20

207652044

$1.90

45

Hex. Flange Elastic Nut M5

233251414

$1.04

46

Pop Rivet 3/16"

390402200

$0.35
