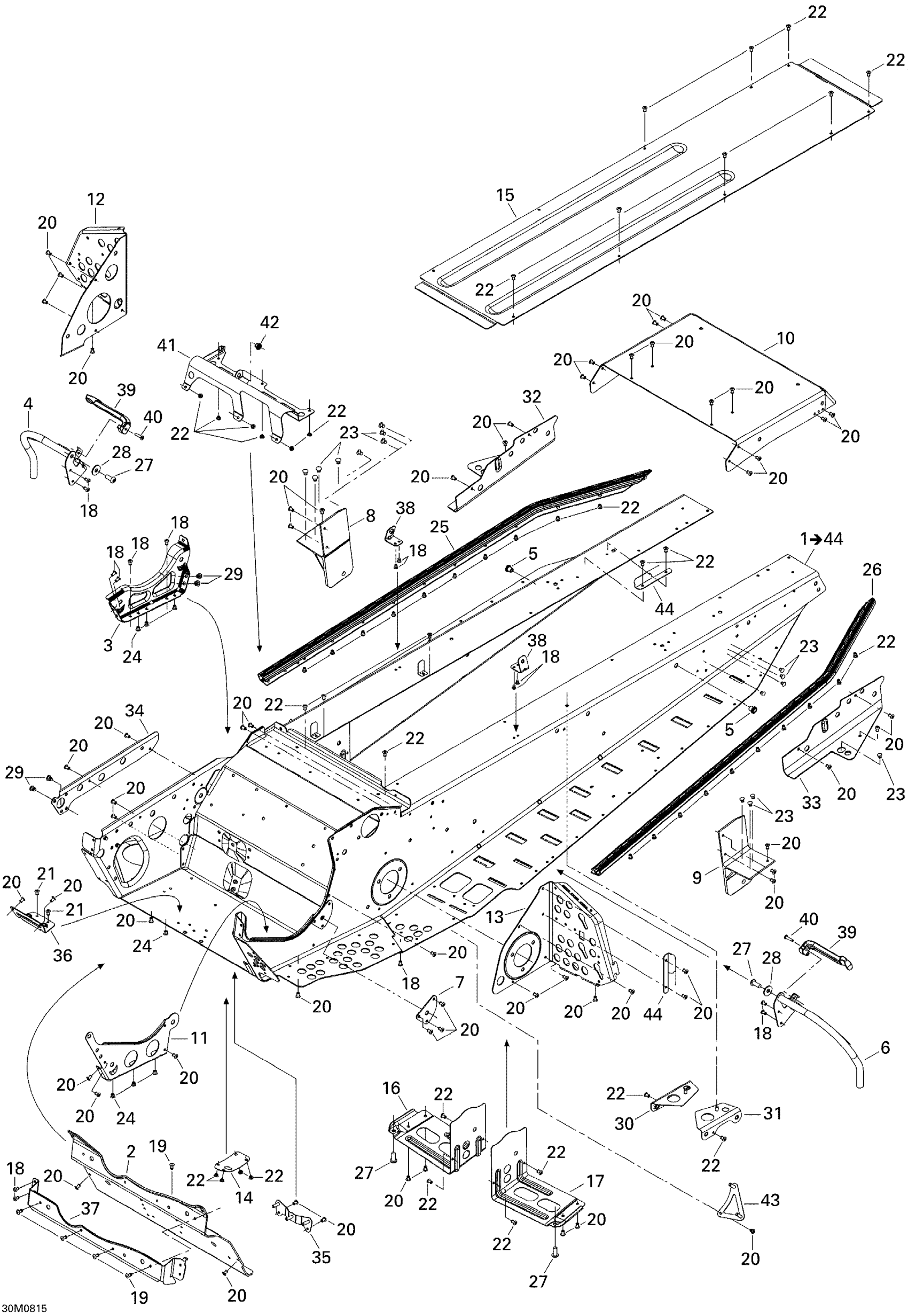

Ski-Doo Freestyle Back Country 550F, 2008 09- Frame Diagram

#

Description
Price

1

FRAME 136'' - Call your local BRP dealership | Includes 1 to 44

415129308

Unavailable

2

FRONT PAN - Call your local BRP dealership

518325042

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

Insert

293450275

$12.99

6

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

7

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

8

RH Slide Bracket

518325343

Unavailable

9

LH SLIDE BRACKET - Call your local BRP dealership

518325344

Unavailable

10

FRAME EXTENTION - Call your local BRP dealership

518325145

Unavailable

11

INNER REINFORCEMENT - Call your local BRP dealership

518323995

Unavailable

12

RH Footrest Reinforcement

518323805

Unavailable

13

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

14

PLATE - Call your local BRP dealership

518324169

Unavailable

15

Central Plate

518323996

Unavailable

16

RH Footrest Reinforcement, Black

518325345

Unavailable

17

LH FOOTREST REINFORCEMENT, BLACK - Call your local BRP dealership

518325346

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402300

$0.75

22

Pop Rivet 3/16"

390402400

$0.35

23

Not Available As Spare Part - Friction Washer

Unavailable

24

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

25

RH ROLLER - Call your local BRP dealership

518325153

Unavailable

26

LH ROLLER - Call your local BRP dealership

518325154

Unavailable

27

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

28

Flat Washer 8 mm

234082410

$1.47

29

Hemlock Rivet, 6.5 mm

293150096

$3.27

30

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

31

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

32

RH TUNNEL LINER - Call your local BRP dealership

518325039

Unavailable

33

LH Tunnel Liner

518325040

Unavailable

34

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable

35

Holder

518324599

Unavailable

36

HOLDER PLATE - Call your local BRP dealership

518324207

Unavailable

37

FRONTAL REINFORCEMENT - Call your local BRP dealership

518324220

Unavailable

38

TRUNK BRACKET - Call your local BRP dealership

518324688

Unavailable

39

Panel Latch

517302448

$14.99

40

Pop Rivet 3/16”

390410100

$0.57

41

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

42

Threaded Insert M6 X 1.0

250100242

Unavailable

43

TRUNK BRACKET, BLACK - Call your local BRP dealership

518324312

Unavailable

44

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable
