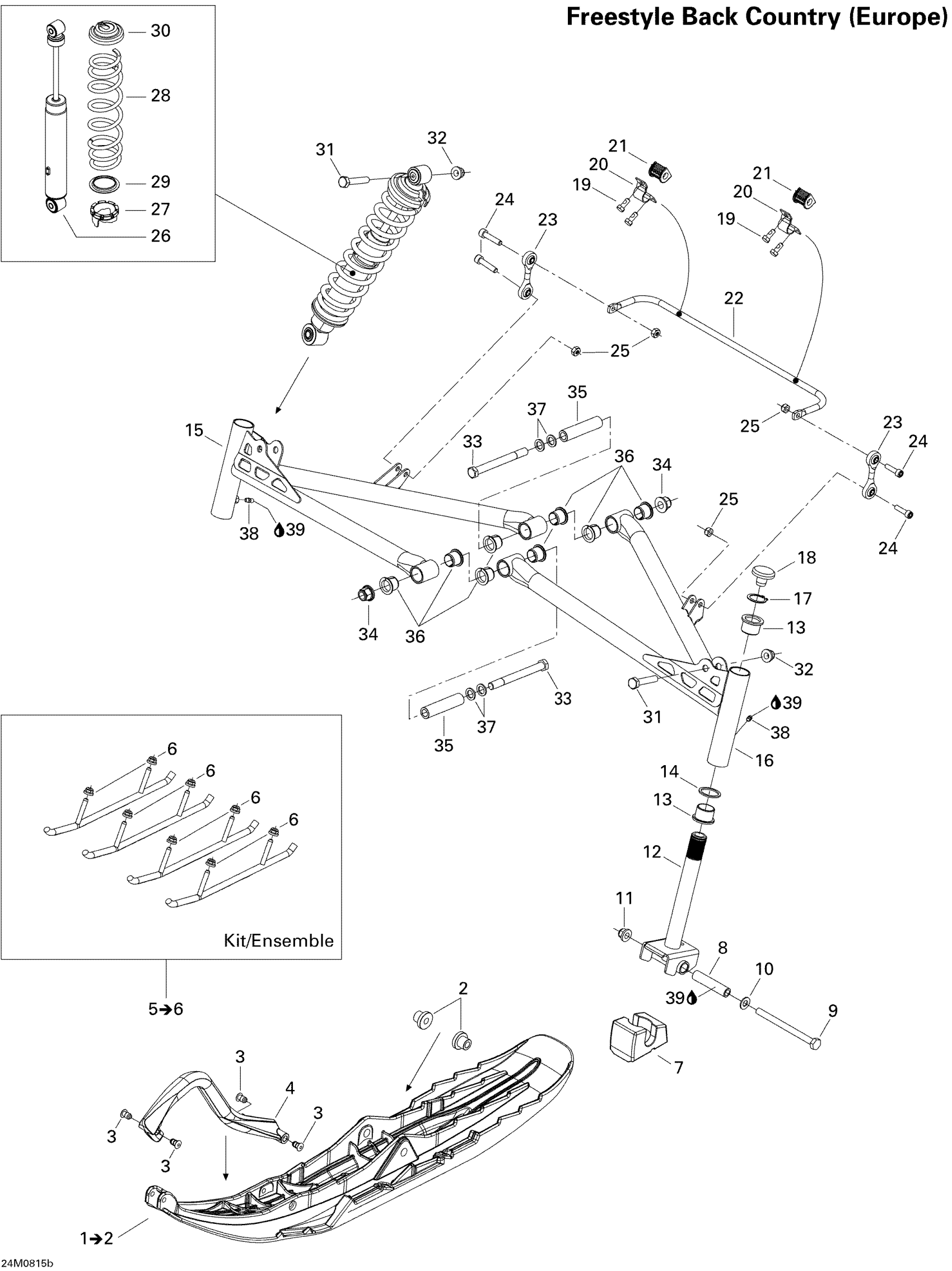

Ski-Doo Freestyle Back Country 550F, 2008 Front Suspension And Ski Europe Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$170.12

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$170.12

2

Ski Bushing

505071781

$14.90

3

Retainer 17mm long

505071812

$4.30

4

Black, Handle

505070963

$34.30

5

Square Carbide Runner Kit | Includes 5 to 6

860511800

Unavailable

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

8

Spacer

506133300

$19.37

9

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

10

Flat Washer 10 mm

234001410

$0.98

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

SKI LEG - Call your local BRP dealership

505072001

Unavailable

13

Cushion

505070003

$7.18

14

WASHER - Call your local BRP dealership

505070004

Unavailable

15

RH LOWER ARM - Call your local BRP dealership

505071739

Unavailable

16

LH LOWER ARM - Call your local BRP dealership

505071740

Unavailable

17

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

18

Cap

572091300

$8.70

19

SCREW-HEX.CAP WITH NYLON PATCH - Call your local BRP dealership

250000281

Unavailable

20

CLAMP - Call your local BRP dealership

506095800

Unavailable

21

TORSION BUSHING - Call your local BRP dealership

505072225

Unavailable

22

STABILISATOR - Call your local BRP dealership

505072226

Unavailable

23

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

24

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

25

Hex. Elastic Stop Nut M8

232581414

$0.47

26

FRONT SHOCK - Call your local BRP dealership

505072191

Unavailable

27

Adjustment Cam

505073625

$11.82

28

VIPER RED SPRING - Call your local BRP dealership | Grey-Red Model

505072219

Unavailable

29

Spring Guide

503191872

$2.12

30

Spring Stopper

706200881

$10.30

31

Hex. Screw M10 X 55

207005544

$1.85

32

Hex. Flange Elastic Nut M10

233201414

$1.26

33

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

34

Hex. Flange Elastic Nut M12

233221414

$5.10

35

BUSHING - Call your local BRP dealership

505071366

Unavailable

36

BUSHING - Call your local BRP dealership

505072094

Unavailable

37

Washer

503189276

$3.10

38

Grease Fitting

408200700

$2.80

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
