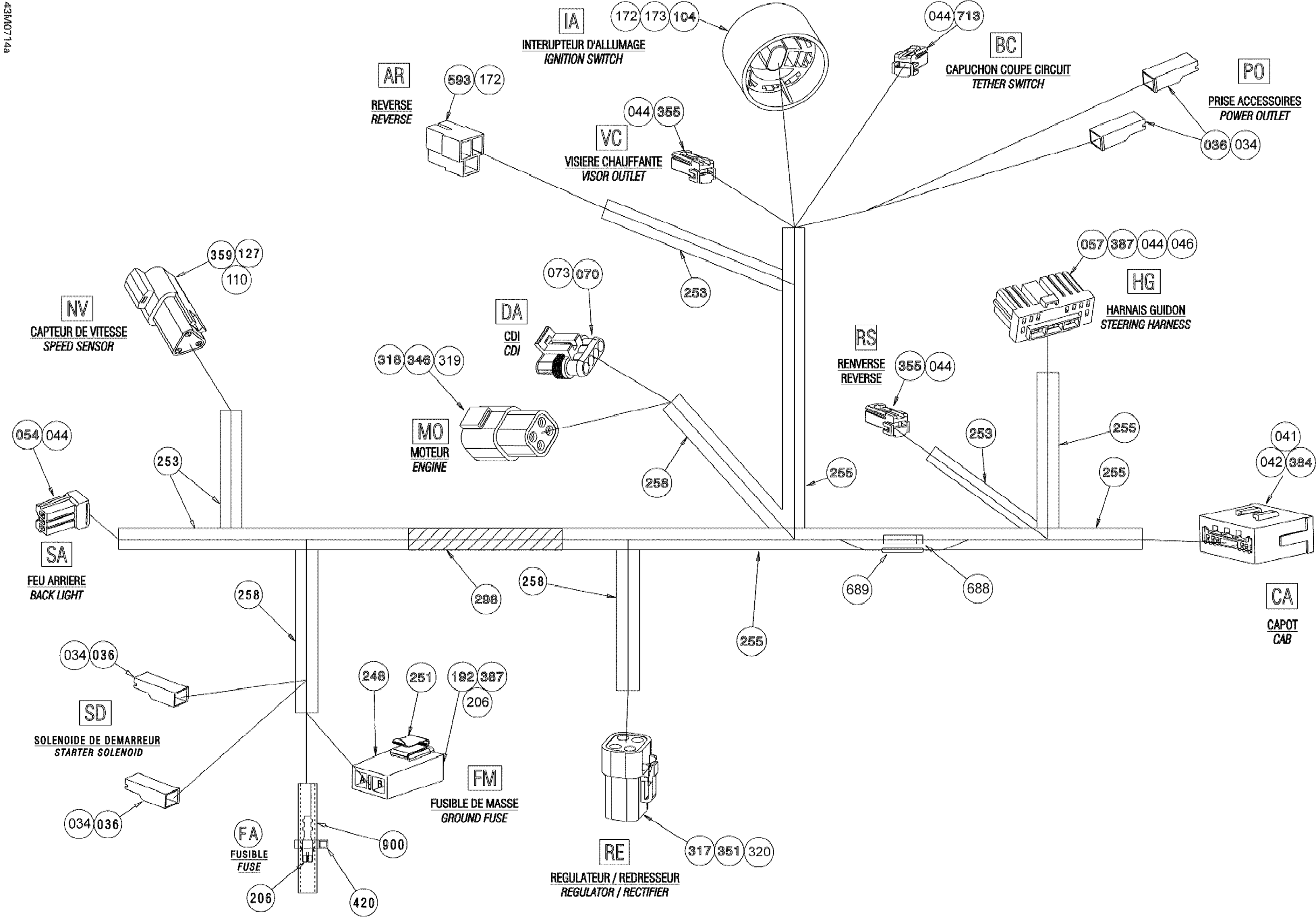

Ski-Doo Freestyle Back Country 550F, 2007 Electrical Harness Diagram

#

Description
Price

1

Frame Harness | Includes 1 to 900

515176360

Unavailable

34

Female Terminal

409010100

$5.46

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

41

Male Terminal

515175232

$1.49

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.12

46

Female Terminal

515175282

$6.43

54

Female Housing, 3 Circuits

515175495

$15.35

57

Female Terminal Housing, 13 Circuits

515175350

$12.88

70

Female Housing, 4 Circuits

409209700

$12.97

73

Wire Seal

278001013

$2.72

104

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

$8.77

110

Male Terminal

278000631

$4.12

127

Male Lock, 3 Circuits

409207600

$3.02

172

Female Terminal

561503100

Unavailable

173

Female Terminal

561503100

Unavailable

192

Fuse, 20 Amperes

409003900

$3.22

206

Female Terminal

409004200

$4.42

248

Fuse Holder

409004000

$7.00

251

CLIP - Call your local BRP dealership

409014200

$4.23

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

258

Tubing 10 MM 1000MM Long

219704407

$2.20

298

Tape

293740005

Unavailable

317

Female Terminal Housing, 4 Circuits

278001473

$25.35

318

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

$29.20

319

Male Terminal

515175568

$7.48

320

Female Terminal

515175567

$6.03

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

351

Female Lock, 4 Circuits

278001474

$3.02

355

Female Housing, 2 Circuits

515175658

$15.35

359

Male Housing

515175666

$13.05

384

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

$13.69

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

420

Tie-Rap 180 mm

414115200

$0.09

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

$3.17

688

CAPACITOR - Call your local BRP dealership

515176279

$6.31

689

RESISTANCE - Call your local BRP dealership

515176280

$6.31

713

Female Terminal Housing, 2 Circuits

515176296

$5.11

900

Hose

415079200

Unavailable
