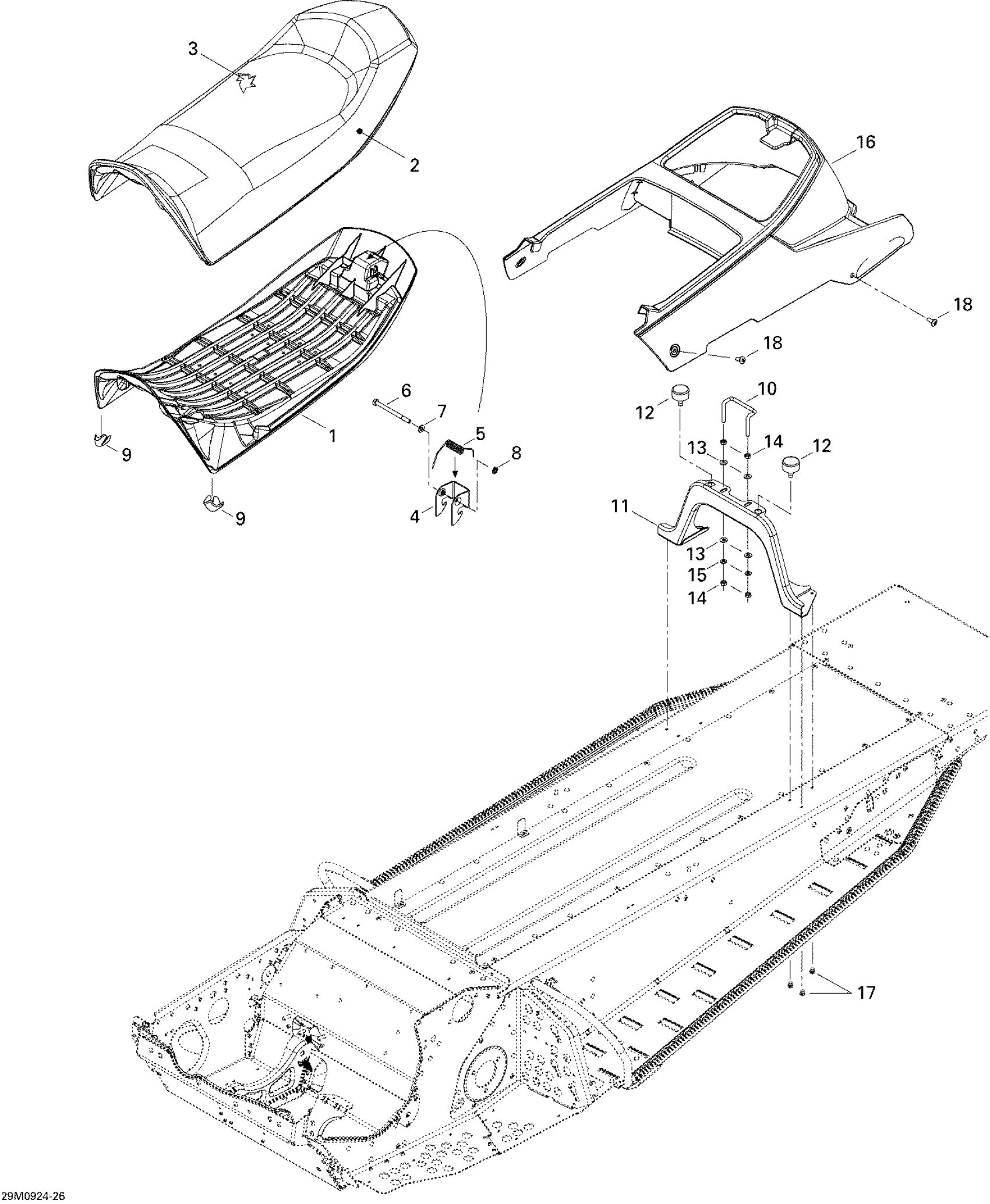

Ski-Doo Freestyle Back Country, 2009 09- Seat Diagram

#

Description
Price

1

SEAT BASE - Call your local BRP dealership

510004487

Unavailable

2

SEAT COVER - Call your local BRP dealership

510004488

Unavailable

3

SEAT FOAM - Call your local BRP dealership

510004489

Unavailable

4

Latch, Black

708000144

$11.99

5

Spring

708000369

$9.19

6

Hex. Screw M6 X 80

207068044

$4.12

7

Flat Washer 6 mm

234061410

$1.36

8

Push Nut

732610072

$2.19

9

SEAT PROTECTOR, BLACK - Call your local BRP dealership

510004606

Unavailable

10

SEAT FASTENER PIN - Call your local BRP dealership

510004608

Unavailable

11

SEAT SUPPORT - Call your local BRP dealership

510004602

Unavailable

12

Rubber Stopper

708000758

$12.99

13

Flat Washer

224061121

$0.53

14

Hex. Nut M6

232061414

$0.53

15

Lock Washer Helical M6

234161601

$1.15

16

TRUNK - Call your local BRP dealership

510004490

Unavailable

17

Avex Rivet

390909200

$0.30

18

Torx Truss Screw M6 X 16

250000721

$1.69
