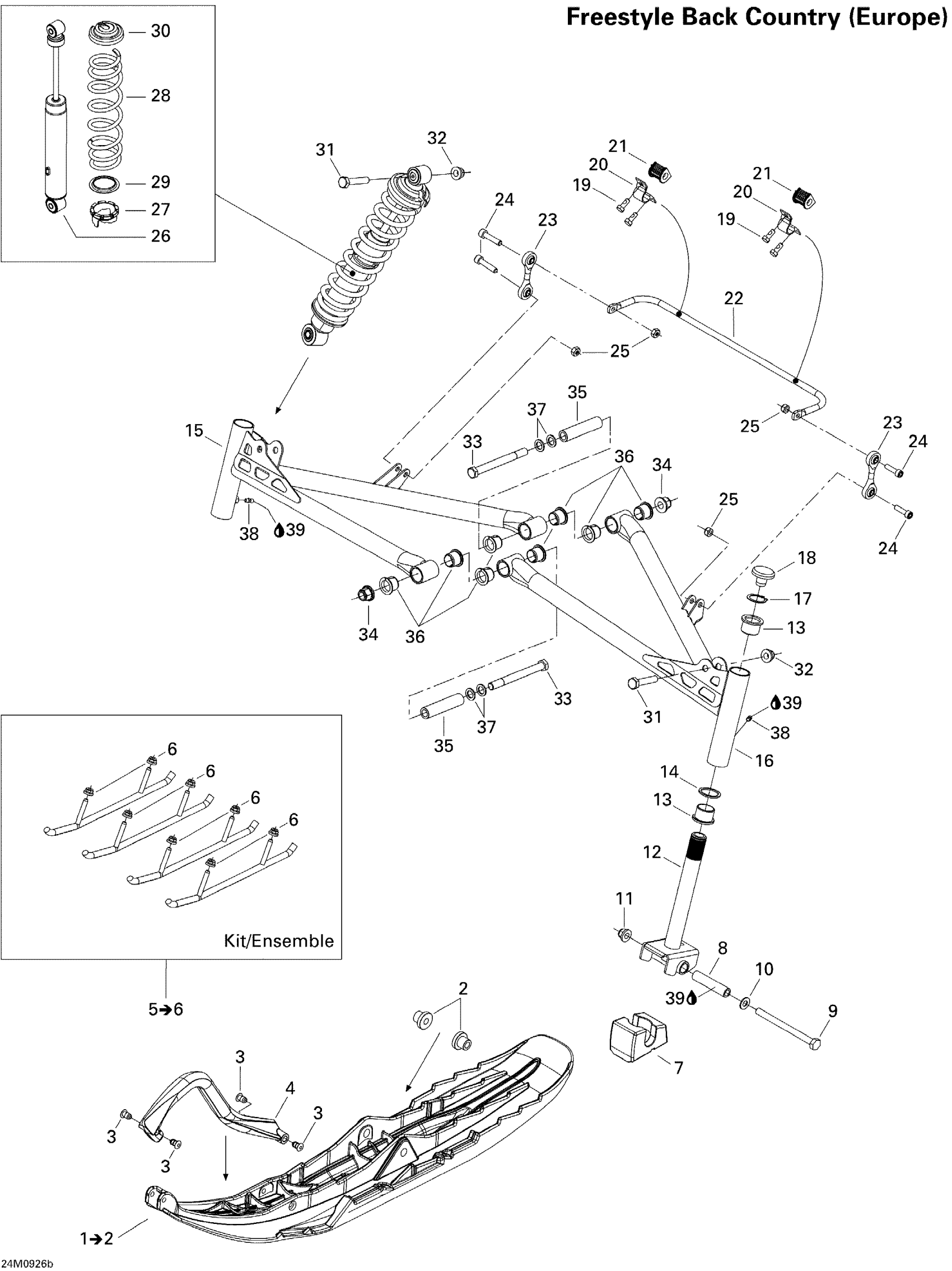

Ski-Doo Freestyle Back Country, 2009 Front Suspension And Ski Europe Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$170.12

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$170.12

2

Ski Bushing

505071781

$14.90

3

Retainer 17mm long

505071812

$4.30

4

Black, Handle

505070963

$34.30

5

Ens.Lisse Exten*Rev Pilot Extender | Includes 5 to 6 This part replaces 860200123.

860200145

$140.27

6

Hex. Flange Elastic Nut M8

233281414

$1.31

7

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

8

Spacer

506133300

$19.37

9

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

10

Flat Washer 10 mm

234001410

$1.12

11

Hex. Flange Elastic Nut M10

233201414

$1.45

12

SKI LEG - Call your local BRP dealership

505072001

Unavailable

13

Cushion

505070003

$7.18

14

WASHER - Call your local BRP dealership

505070004

Unavailable

15

RH LOWER ARM - Call your local BRP dealership

505071739

Unavailable

16

LH LOWER ARM - Call your local BRP dealership

505071740

Unavailable

17

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

18

Cap

572091300

$8.70

19

SCREW-HEX.CAP WITH NYLON PATCH - Call your local BRP dealership

250000281

Unavailable

20

CLAMP - Call your local BRP dealership

506095800

Unavailable

21

TORSION BUSHING - Call your local BRP dealership

505072225

Unavailable

22

STABILISATOR - Call your local BRP dealership

505072226

Unavailable

23

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

24

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

25

Hex. Elastic Stop Nut M8

232581414

$0.54

26

FRONT SHOCK - Call your local BRP dealership

505072191

Unavailable

27

Adjustment Cam

505073625

$11.82

28

SPRING - Call your local BRP dealership | Europe

505071833

Unavailable

29

Spring Guide

503191872

$2.12

30

Spring Stopper

706200881

$11.82

31

Hex. Screw M10 X 55

207005544

$2.12

32

Hex. Flange Elastic Nut M10

233201414

$1.45

33

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

34

Hex. Flange Elastic Nut M12

233221414

$5.85

35

BUSHING - Call your local BRP dealership

505071366

Unavailable

36

BUSHING - Call your local BRP dealership

505072094

Unavailable

37

Washer

503189276

$3.10

38

Grease Fitting

408200700

$3.21

39

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
