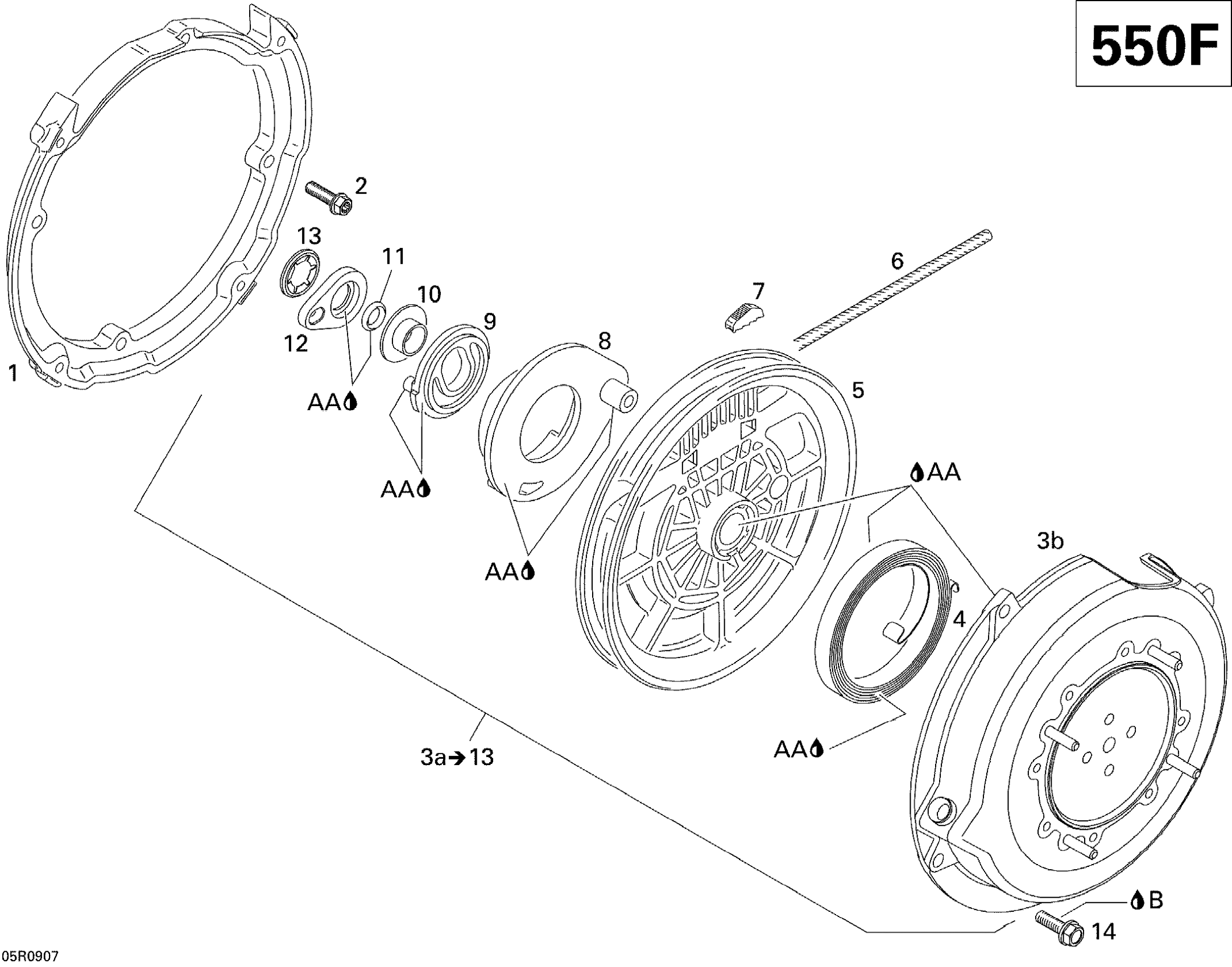

Ski-Doo Freestyle Back Country, 2009 04- Rewind Starter Diagram

Flange Connector

420810955

$110.99

Torx Flange Screw M6 X 20

420440207

$3.06

Rewing Starter Ass'y | Includes 3a to 13

420890170

$185.49

Not Available As Spare Part - Friction Washer

Unavailable

Rewind Spring

420939115

$30.49

Rope Sheave

420852480

$63.99

Was 412500100 Rope-Starter

219704403

$158.99

Key Clamp

420852070

$4.23

Pawl

420852296

$20.99

Pawl Lock | Includes no. 8-9

420852640

$6.99

Stage Sleeve

420847926

$16.33

O-Ring

420250400

$5.39

Lock Ring

420852520

$9.27

Locking Element

420845560

$2.11

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

Loctite 243, 10 ml

293800060

$21.49

Molykote PG 54, 10 g

420899763

$21.99
