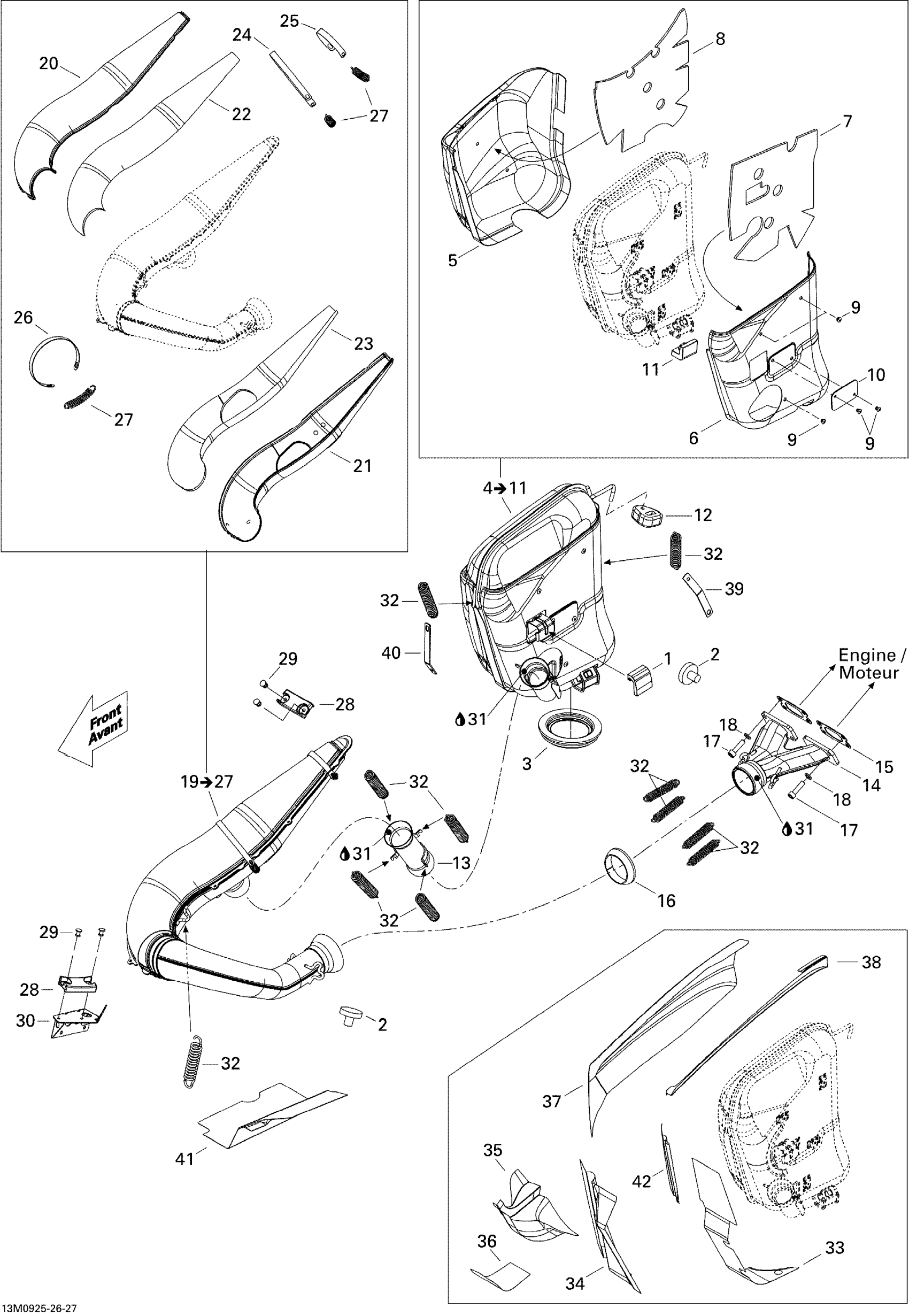

Ski-Doo Freestyle Back Country, 2009 Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

Unavailable

2

Rubber Bumper

514053654

$49.20

3

EXHAUST GROMMET - Call your local BRP dealership

514054240

Unavailable

4

Muffler Ass'y | Includes 4 to 11

514054059

Unavailable

5

RH DEFLECTOR - Call your local BRP dealership

514054100

Unavailable

6

HEAT DEFLECTOR LH - Call your local BRP dealership

514053843

Unavailable

7

INSULATING WOOL LH - Call your local BRP dealership

514053844

Unavailable

8

INSULATING WOOL RH - Call your local BRP dealership

514053947

Unavailable

9

Pop Rivet 3/16”

390910000

$0.48

10

Reinforcement

514053429

Unavailable

11

LOWER STOPPER - Call your local BRP dealership

514054223

Unavailable

12

RUBBER BUMPER - Call your local BRP dealership

514052704

Unavailable

13

EXHAUST ELBOW - Call your local BRP dealership

514054249

Unavailable

14

Exhaust Manifold

420673065

$319.20

15

Gasket 1.0 mm

420831849

$7.92

16

Exhaust Gasket

514053644

$25.35

17

Socket Head Screw M8 X 30

205083044

$0.92

18

Washer

514053837

$4.28

19

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 19 to 27

514054063

Unavailable

20

Rear Upper Half-enveloppe

514054208

$50.74

21

REAR LOWER HALF-ENVELOPPE - Call your local BRP dealership

514054209

Unavailable

22

Upper Insulating Wool

514054244

$12.65

23

Lower Insulating Wool

514054243

$12.65

24

Retaining Strap

514053502

$8.35

25

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

26

Retaining Strap

514053498

$8.35

27

Spring

514053643

$6.20

28

BUMPER - Call your local BRP dealership

514053352

Unavailable

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

30

SUPPORT - Call your local BRP dealership

514054131

Unavailable

31

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

32

Spring

415107100

$6.20

33

REFLECTIVE SHEET - Call your local BRP dealership

514053560

Unavailable

34

Reflective Sheet

514053912

Unavailable

35

Reflective Sheet

514053913

Unavailable

36

Reflective Sheet

514053914

Unavailable

37

REFLECTIVE SHEET - Call your local BRP dealership

514054291

Unavailable

38

REFLECTIVE SHEET - Call your local BRP dealership

514054292

Unavailable

39

SPRING BRACKET - Call your local BRP dealership

514053725

Unavailable

40

Spring Bracket

514053393

$11.58

41

REFLECTIVE SHEET - Call your local BRP dealership

514054133

Unavailable

42

REFLECTIVE SHEET - Call your local BRP dealership

514054012

Unavailable
