Partiron

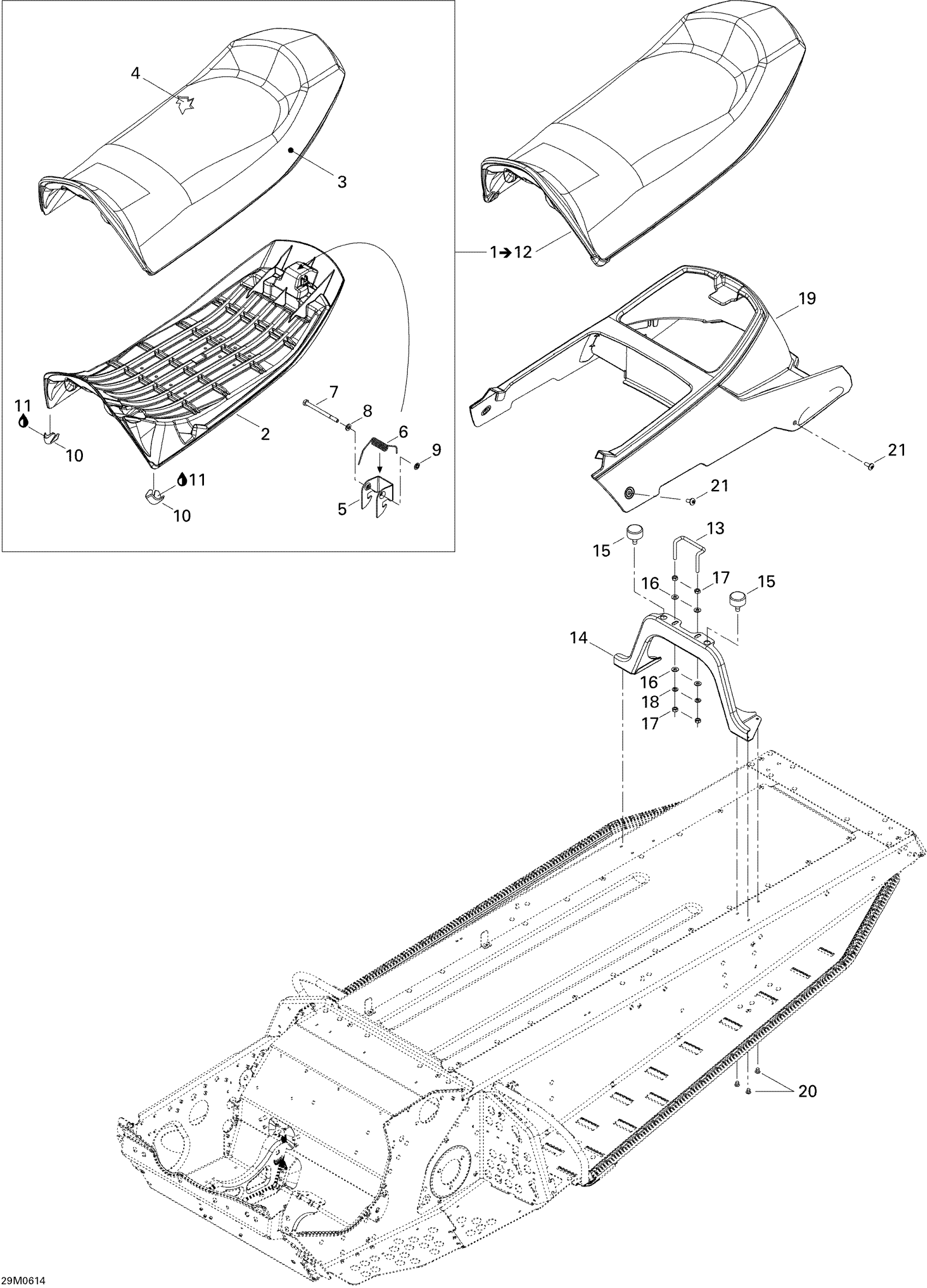

Ski-Doo Freestyle 300F, 2006 Seat Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SEAT BASE - Call your local BRP dealership

510004487

Unavailable

3

Seat Cover

510004666

Unavailable

4

SEAT FOAM - Call your local BRP dealership

510004489

Unavailable

5

Latch, Black

708000144

$10.76

6

Spring

708000369

$8.34

7

Hex. Screw M6 X 80

207068044

$3.90

8

Flat Washer 6 mm

234061410

$1.19

9

Push Nut

732610072

$1.97

10

SEAT PROTECTOR, BLACK - Call your local BRP dealership

510004606

Unavailable

11

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

SEAT FASTENER PIN - Call your local BRP dealership

510004608

Unavailable

14

SEAT SUPPORT - Call your local BRP dealership

510004602

Unavailable

15

Rubber Stopper

708000758

$10.76

16

Flat Washer

224061121

$0.51

17

Hex. Nut M6

232061414

$0.51

18

Lock Washer Helical M6

234161601

$1.06

19

TRUNK - Call your local BRP dealership

510004490

Unavailable

20

Avex Rivet

390909200

$0.28

21

Torx Truss Screw M6 X 16

250000721

$1.60
