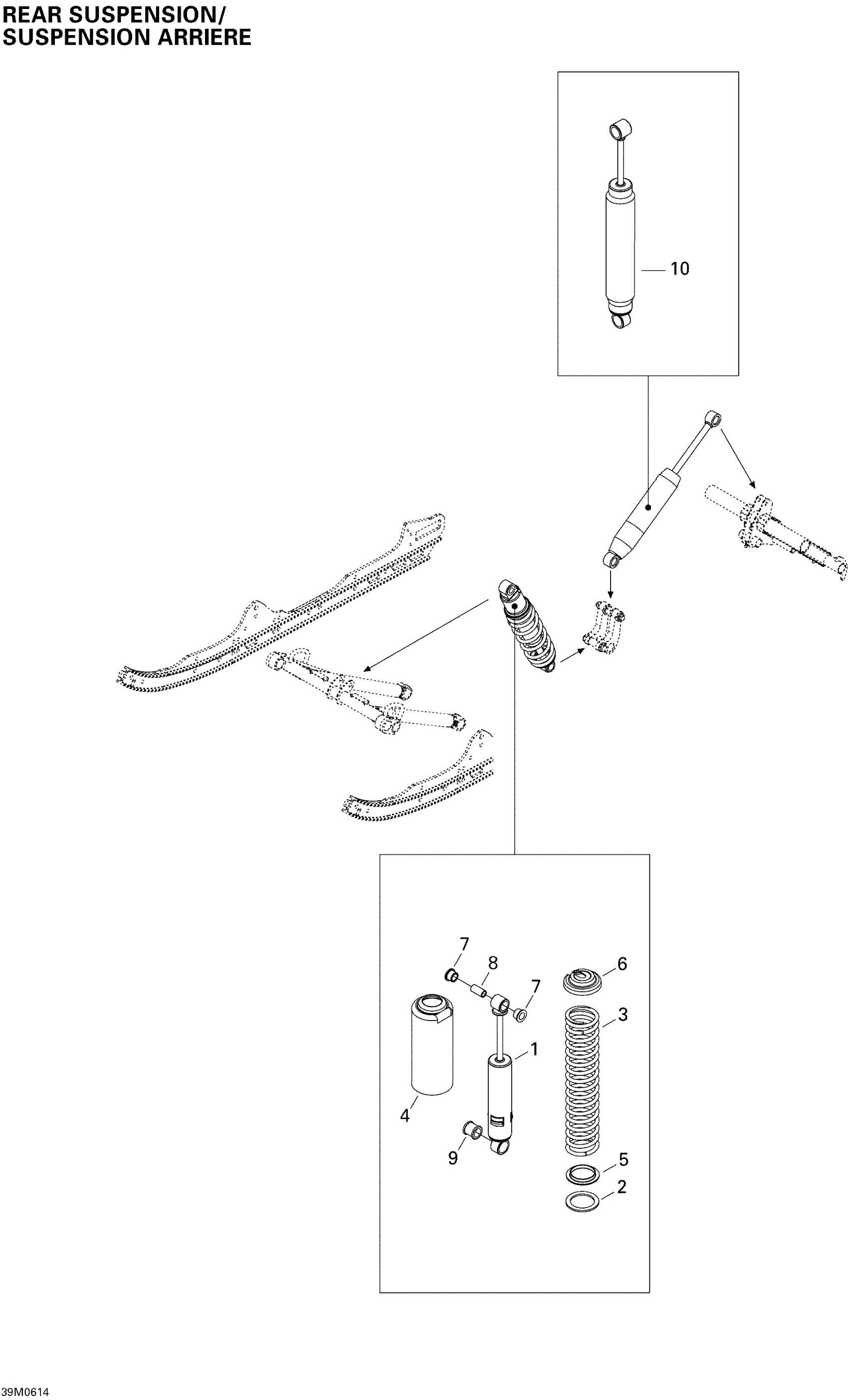

Ski-Doo Freestyle 300F, 2006 Rear Suspension Shocks Diagram

#

Description

Price

1

CENTER SHOCK - Call your local BRP dealership

503190746

Unavailable

2

WASHER - Call your local BRP dealership

503184400

Unavailable

3

SPRING - Call your local BRP dealership | Except Europe

503191347

Unavailable

4

Protector

503193663

$35.35

5

SPRING GUIDE - Call your local BRP dealership

505071954

Unavailable

6

Spring Stopper

706200881

$10.30

7

Urethane Bushing

503189117

$6.88

8

Bushing | Includes 240d to 240d1

503189282

$4.18

9

Bushing

503189271

$10.46

10

REAR SHOCK - Call your local BRP dealership

503190755

Unavailable
