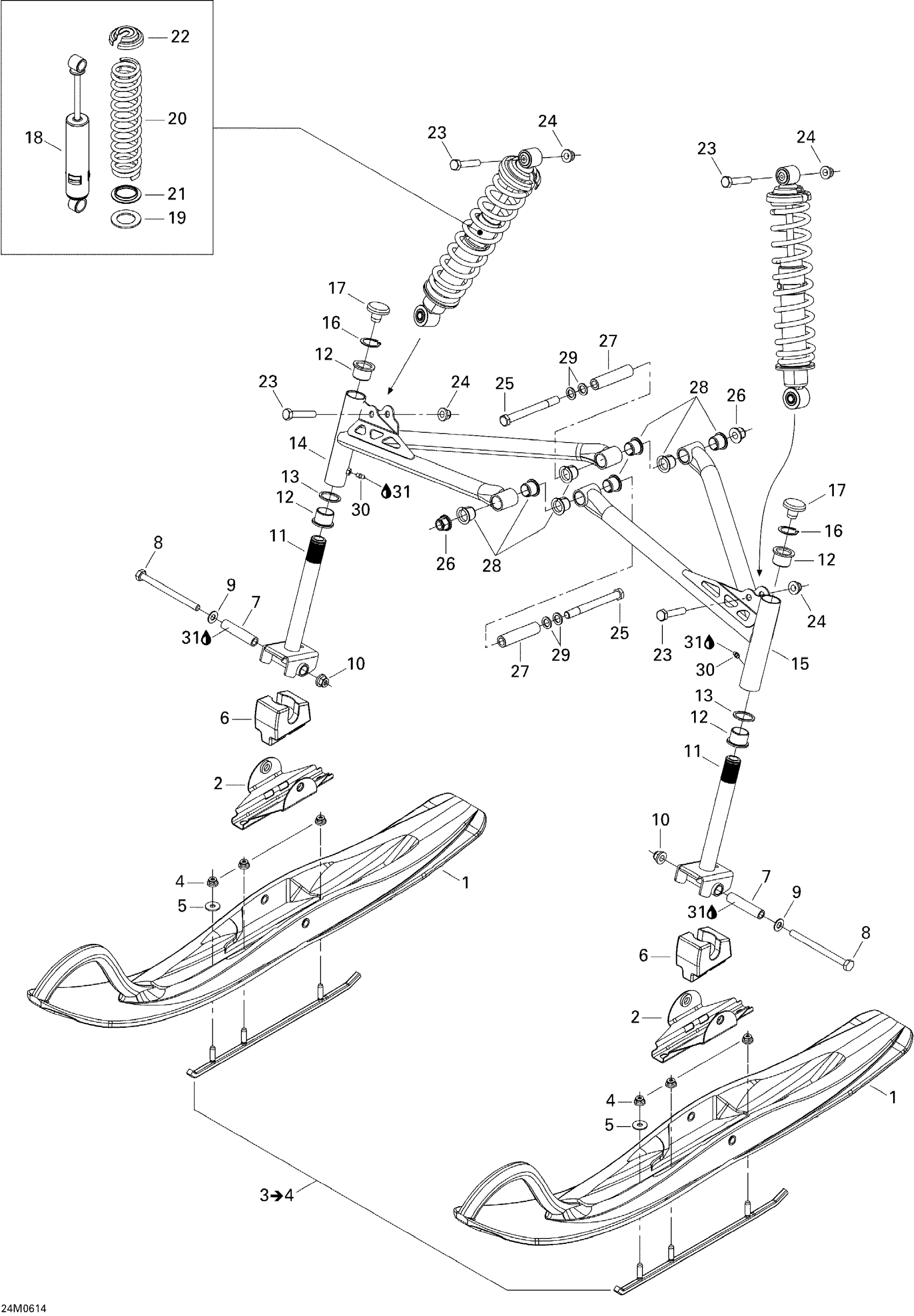

Ski-Doo Freestyle 300F, 2006 Front Suspension And Ski Diagram

#

Description
Price

1

Small ''Blow Mold'' Ski

505072019

$94.00

2

BRIDGE ASS'Y - Call your local BRP dealership

505070980

Unavailable

3

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

$91.01

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Flat Washer 8 mm

234082410

$1.27

6

SKI STOPPER - Call your local BRP dealership

505070978

Unavailable

7

Spacer

506133300

$19.37

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

9

Flat Washer 10 mm

234001410

$1.12

10

Hex. Flange Elastic Nut M10

233201414

$1.45

11

Ski Leg

506151234

Unavailable

12

Cushion

505070003

$7.18

13

WASHER - Call your local BRP dealership

505070004

Unavailable

14

RH LOWER ARM - Call your local BRP dealership

505071523

Unavailable

15

LH Lower Arm

505071529

Unavailable

16

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

17

Cap

572091300

$8.70

18

FRONT SHOCK - Call your local BRP dealership

505071485

Unavailable

19

WASHER - Call your local BRP dealership

503184400

Unavailable

20

SPRING - Call your local BRP dealership

505071461

Unavailable

20

SPRING - Call your local BRP dealership

505071844

Unavailable

21

SPRING GUIDE - Call your local BRP dealership

505071954

Unavailable

22

Spring Stopper

706200881

$11.82

23

Hex. Screw M10 X 55

207005544

$2.12

24

Hex. Flange Elastic Nut M10

233201414

$1.45

25

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

26

Hex. Flange Elastic Nut M12

233221414

$5.85

27

BUSHING - Call your local BRP dealership

505071366

Unavailable

28

Bushing

505071639

Unavailable

29

Washer

503189276

$3.10

30

Grease Fitting

408200700

$3.21

31

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
