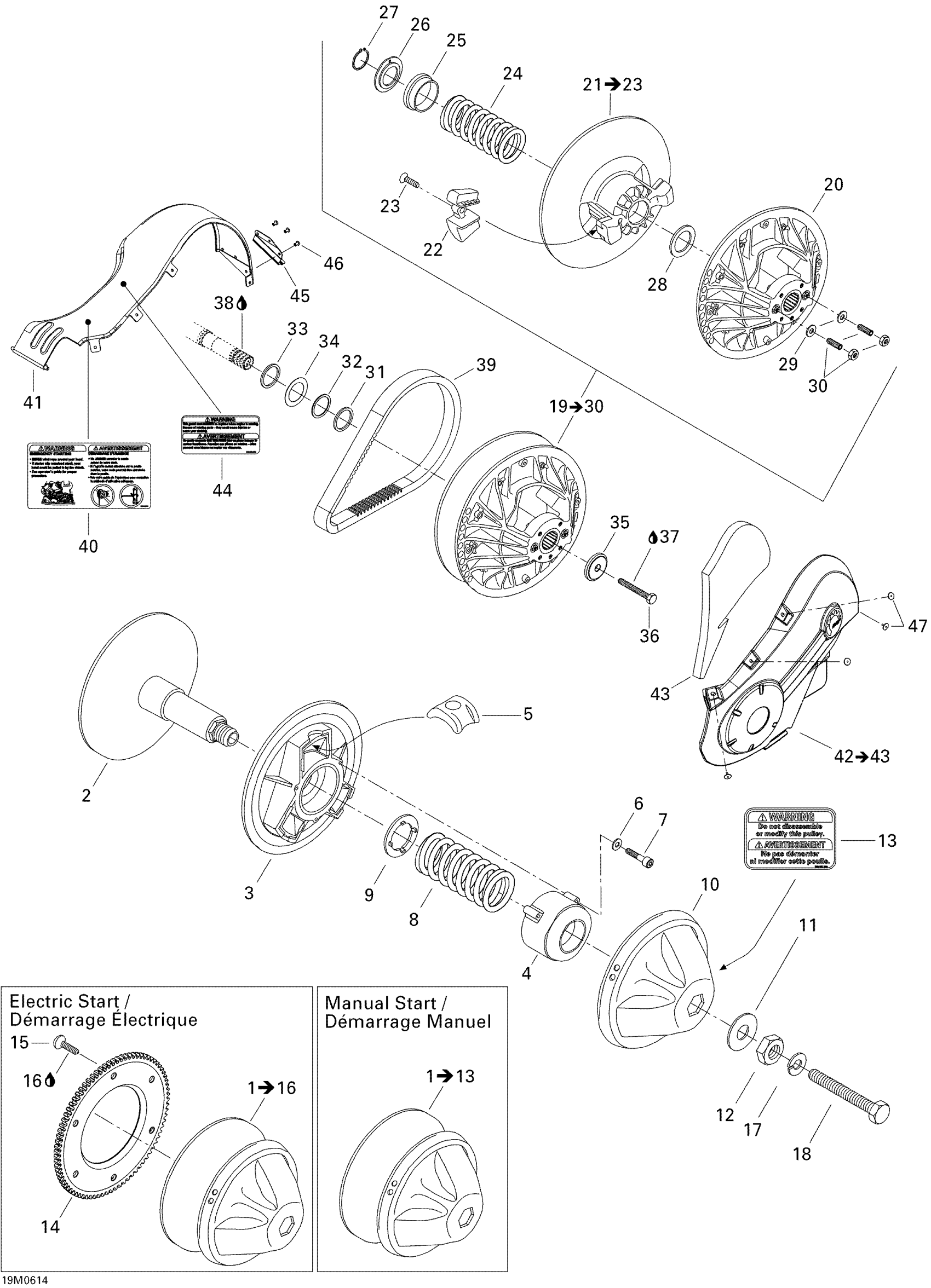

Ski-Doo Freestyle 300F, 2006 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Inner Flange

415129124

Unavailable

3

SLIDING FLANGE - Call your local BRP dealership

417126692

Unavailable

4

SPRING COVER - Call your local BRP dealership

415128602

Unavailable

5

Unit

415129126

Unavailable

6

WASHER - Call your local BRP dealership

420245370

Unavailable

7

SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership

415128606

Unavailable

8

SPRING, VIOLET-PINK-PINK - Call your local BRP dealership

415129151

Unavailable

9

SPRING SEAT - Call your local BRP dealership

417126694

Unavailable

10

Cap

415128609

Unavailable

11

WASHER - Call your local BRP dealership

415128610

Unavailable

12

NUT - Call your local BRP dealership

417118300

Unavailable

13

Security Label

516001726

Unavailable

14

Ring Gear

417300305

Unavailable

15

Hex. Screw M8 X 16

236281684

$4.12

16

Loctite 271, 10 ml

293800005

$26.99

17

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

18

BOLT - Call your local BRP dealership

417113800

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

FIXED FLANGE - Call your local BRP dealership

415129046

Unavailable

21

Sliding Flange | Includes 21 to 23

415129047

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Spring, Blue-white-orange

415129048

Unavailable

25

LOCK RING - Call your local BRP dealership

415129049

Unavailable

26

Washer

415129050

Unavailable

27

STOPPER SPRING - Call your local BRP dealership

415129051

Unavailable

28

SPRING PROTECTOR - Call your local BRP dealership

415129052

Unavailable

29

WASHER - Call your local BRP dealership

420245370

Unavailable

30

SCREW & NUT ASSY. - Call your local BRP dealership

415129076

Unavailable

31

Spacer

417300252

$5.49

32

Spacer

417300265

$2.29

33

Spacer

417300252

$5.49

34

Shim

504112000

$8.59

35

Strength Washer

517302322

$12.63

36

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

39

Belt_Drive This part replaces 417300298.

417300334

$105.99

40

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

41

BELT GUARD - Call your local BRP dealership

417300276

Unavailable

42

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

43

Foam

417300246

Unavailable

44

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

45

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

46

Avex Rivet

390909200

$0.30

47

Pop Rivet 3/16"

293150103

$0.55
