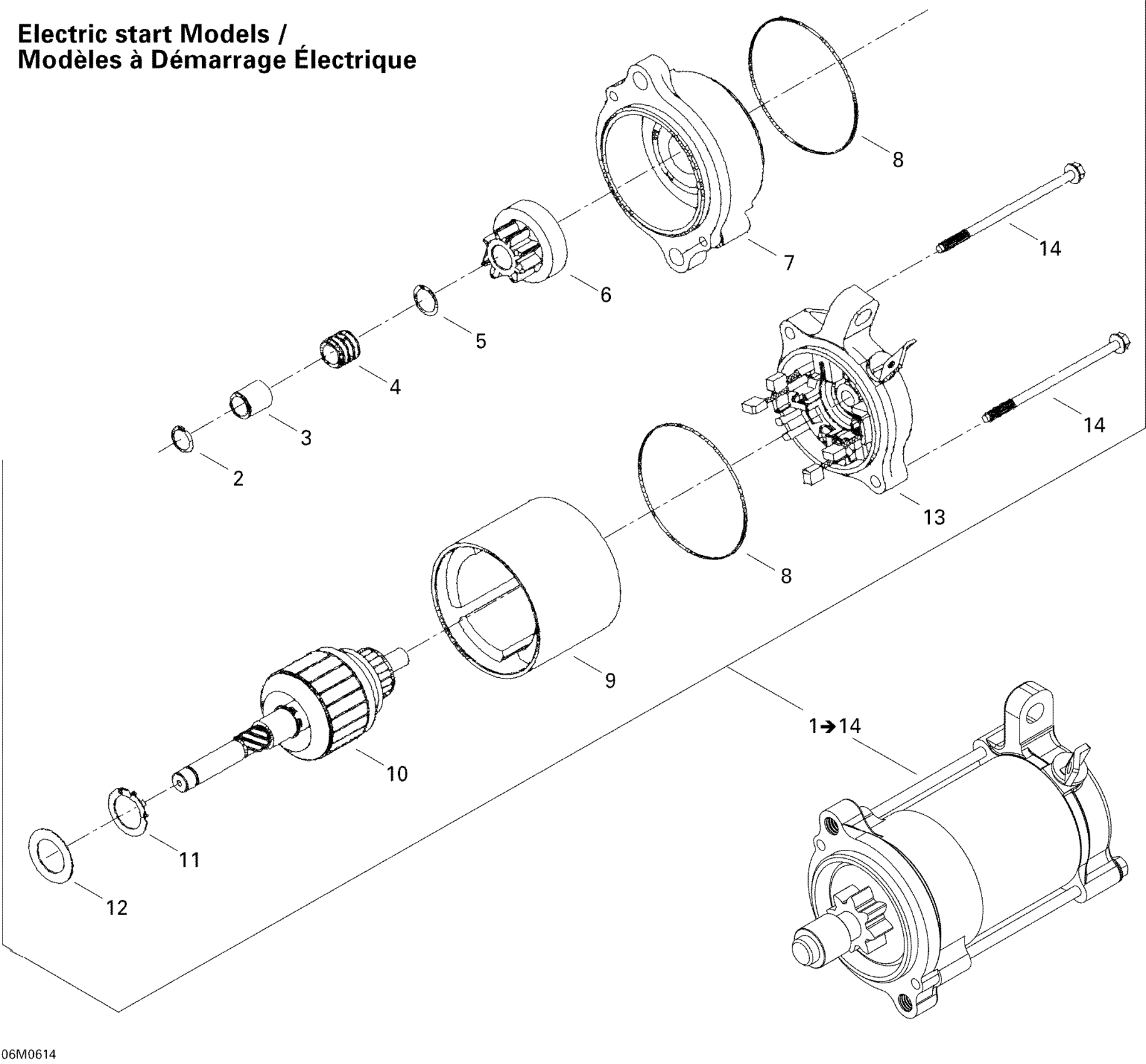

Ski-Doo Freestyle 300F, 2006 04- Electric Starter Diagram
#
Description
Price
1
STARTER - Call your local BRP dealership | Includes 1 to 6
515176537
Unavailable
2
SNAP RING - Call your local BRP dealership
410207700
Unavailable
3
STOP BUSHING - Call your local BRP dealership
410207800
Unavailable
4
SPRING - Call your local BRP dealership
410207900
Unavailable
5
WASHER PLATE - Call your local BRP dealership
278001105
Unavailable
6
Starter Clutch
410922982
Unavailable
7
STARTER HOUSING - Call your local BRP dealership
410922983
Unavailable
8
O-RING - Call your local BRP dealership
410922984
Unavailable
9
Starter Housing
410922985
Unavailable
10
ARMATURE ASS'Y - Call your local BRP dealership
410922986
Unavailable
11
ARMATURE COLLAR - Call your local BRP dealership
410922987
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Starter Housing
410922988
Unavailable
14
BOLT - Call your local BRP dealership
410922989
Unavailable
